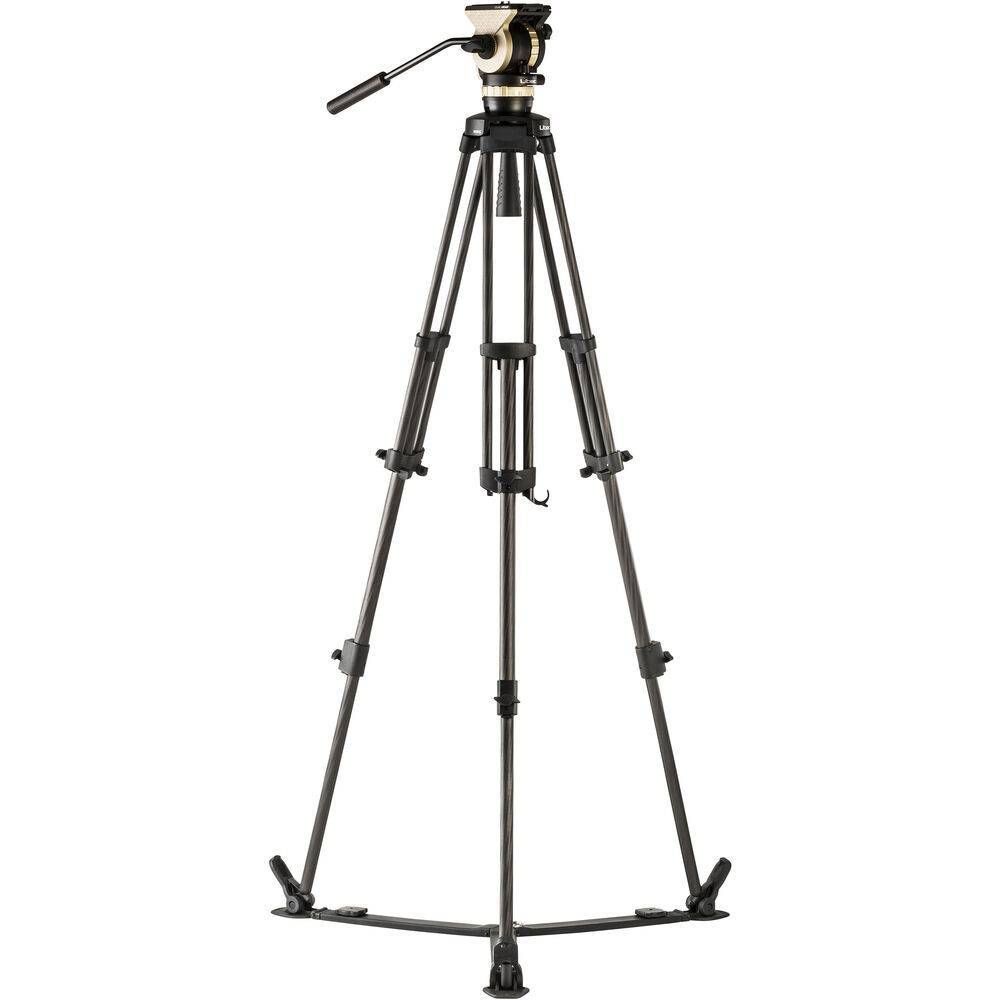

Support your small camera rig weighing up to 8.8 lb and create smooth pan and tilt movements with this NX-100C Carbon Fiber Tripod System with NH10 Head, Ground Spreader & Carry Case from Libec. The NX-100C system includes the NH10 dual 75mm bowl/flat base video head, the RT20C carbon fiber tripod, the SP-1B ground spreader, and an RC-20 carry case.
The base of the head fits the tripod's 75mm bowl, and it is also compatible with tripods with a flat mount. It features continuous pan/tilt drag and counterbalance, a snap-on/off quick release plate, an illuminated bubble level, and a pan bar. The two-stage lightweight carbon fiber tripod weighs only 3.5 lb and can extend to a height of 60.6". The ground spreader installs at the base of the tripod to add stability to the rig. The carry case stores and transports the entire system.
Specs
| Camera Plate Features |
Sideload, Sliding Balance Plate
|
| Camera Mounting Screw |
1 x 1/4"-20 Male with Locating Pin
1 x 3/8"-16 Male with Locating Pin |
| Balance Plate Sliding Range |
1.2" / 30.5 mm
|
| Safety Lock |
Yes
|
| Base Mount |
3/8"-16 Female
75 mm Half Ball Flat Base |
| Counter Balance |
Continuous 5-Step (0 to 5.5 lb / 0 to 2.5 kg)
|
| Pan Handle Fittings |
2
|
| Bubble Level |
1 x Illuminated
|
| Accessory Mounting |
1 x 1/4"-20 Female Thread
1 x 3/8"-16 Female Thread |
| Base Diameter |
2.95" / 75 mm
|
| Drag Control |
Tilt: Continuous 3-Step
Pan: Continuous 3-Step |
| Drag Type |
Friction
|
| Vertical Tilt |
+90° to -70°
|
| Independent Pan Lock |
Yes
|
| Independent Tilt Lock |
Yes
|
| Load Capacity |
8.8 lb / 4 kg
|
| Operating Temperature |
-40 to 140°F / -40 to 60°C
|
| Weight |
4 lb / 1.8 kg
|
