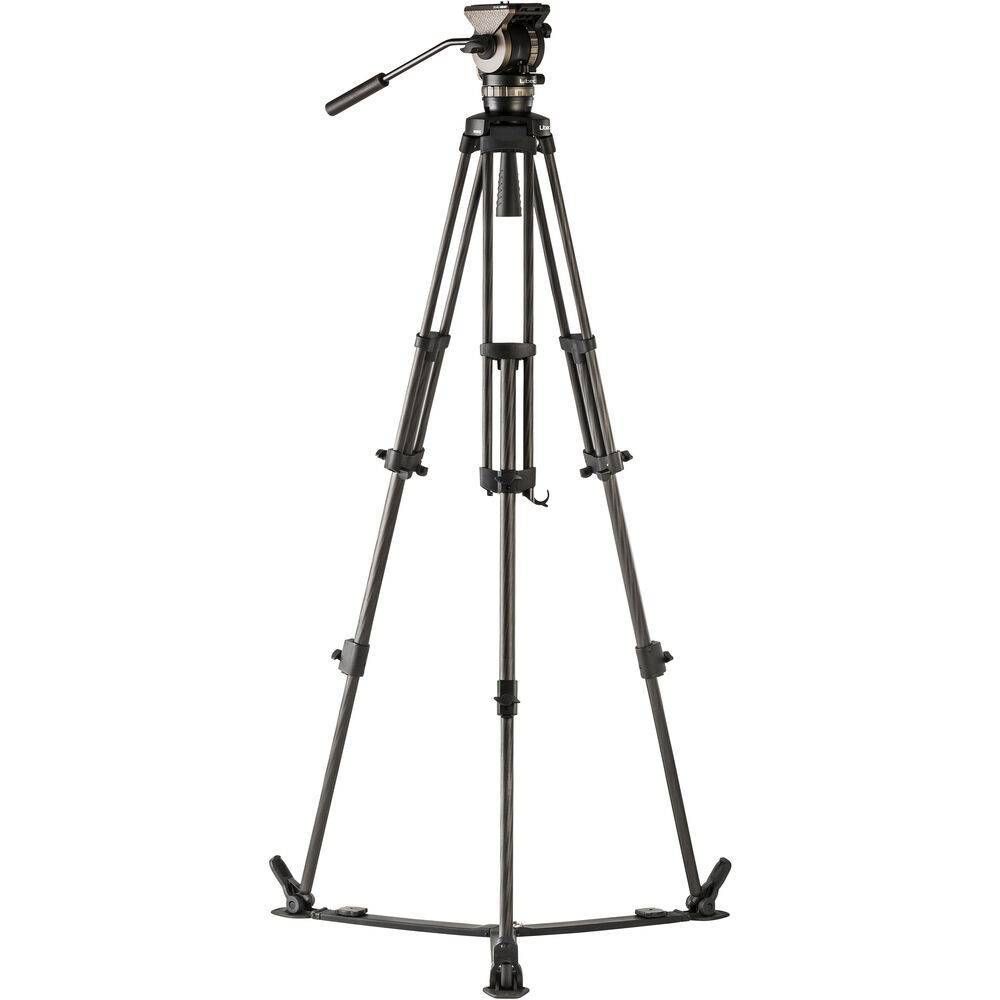

Support your small camera rig weighing up to 22 lb and create smooth pan and tilt movements with this NX-300C Carbon Fiber Tripod System with NH30 Head, Ground Spreader, Long Plate & Case from Libec. The NX-300C system includes the NH30 dual 75mm bowl/flat base video head, the RT20C carbon fiber tripod, the SP-1B ground spreader, the Long Plate S balance plate, and an RC-20 carry case.
The base of the head fits the tripod's 75mm bowl, and it is also compatible with tripods with a flat mount. It features continuous pan/tilt drag and counterbalance, a snap-on/off quick release plate, an illuminated bubble level, and a pan bar. The Long Plate S is an extended camera plate to support larger, heavier rigs. The two-stage lightweight carbon fiber tripod weighs only 3.5 lb and can extend to a height of 60.6". The ground spreader installs at the base of the tripod to add stability to the rig. The carry case stores and transports the entire system.
Libec NH30
Camera Plate Features |
Sideload, Sliding Balance Plate
|
Camera Mounting Screw |
1 x 1/4"-20 Male with Locating Pin
1 x 3/8"-16 Male with Locating Pin |
Balance Plate Sliding Range |
1.2" / 30.5 mm
|
Safety Lock |
Yes
|
Base Mount |
3/8"-16 Female
75 mm Half Ball Flat Base |
Counter Balance |
Continuous 5-Step (0 to 22 lb / 0 to 10 kg)
|
Pan Handle Fittings |
2
|
Bubble Level |
1 x Illuminated
|
Accessory Mounting |
1 x 1/4"-20 Female Thread
1 x 3/8"-16 Female Thread |
Base Diameter |
2.95" / 75 mm
|
Drag Control |
Tilt: Continuous 3-Step
Pan: Continuous 3-Step |
Drag Type |
Friction
|
Vertical Tilt |
+90° to -70°
|
Independent Pan Lock |
Yes
|
Independent Tilt Lock |
Yes
|
Load Capacity |
22 lb / 10 kg
|
Operating Temperature |
-40 to 140°F / -40 to 60°C
|
Weight |
4 lb / 1.8 kg
|
Libec RT20C
Camera Mounting Screw |
Not Specified by Manufacturer
|
Load Capacity |
Not Specified by Manufacturer
|
Maximum Working Height |
60.6" / 154 cm
|
Minimum Working Height |
14.6" / 37 cm
|
Closed Length |
Not Specified by Manufacturer
|
Materials |
Aluminum
|
Weight |
3.5 lb / 1.6 kg
|
Leg Lock Type |
Rotating Locking Lever
|
Leg Sections |
3
|
Spreader |
Mid-Level, Ground (Not Included)
|
Libec RC-20
Carry/Transport Options |
Handle, Shoulder Strap
|
Type of Closure |
Zipper
|
ATA Compliant |
No
|
Bottle Pocket |
No
|
Pressure/Purge Valve |
No
|
Padded Interior |
No
|
Dimensions |
Interior
33.5 x 7.9 x 6.3" / 85 x 20 x 16 cm |
Weight |
17.6 oz / 500 g
|
Libec Long Sliding Plate
Material of Construction |
Aluminum Alloy
|
Sliding Range |
3.7" / 95 mm
|
Dimensions |
9.4 x 2.2 x 0.3" / 240 x 57 x 8.5 mm
|
Weight |
3.2 oz / 91 g
|
