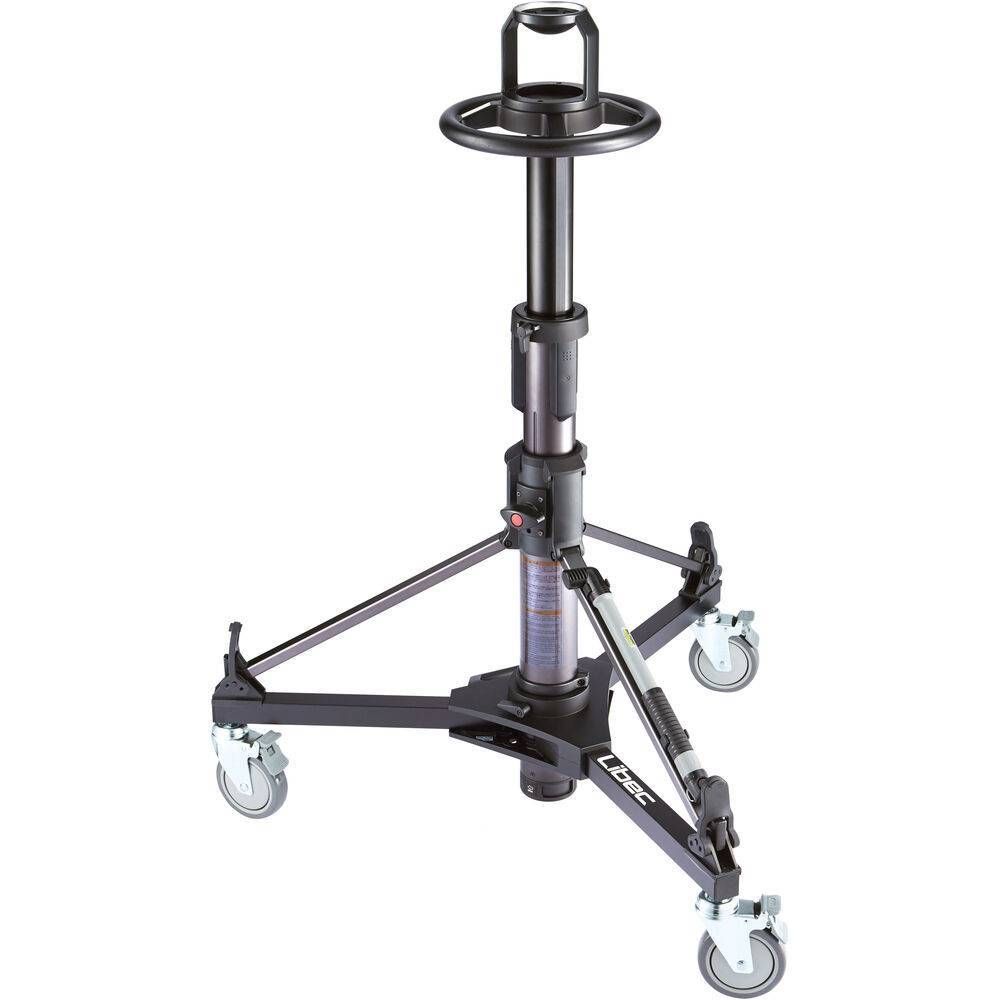

The Libec RSP-750PD(B) Pedestal System, designed for broadcasting, consists of the RHP75 Fluid Head, the PH-8B Pan Head, and a P110(B) pneumatic pedestal with DL-8RB Broadcast Dolly for outside use. Easy to set up and compact in size, this pedestal system has a maximum load capacity of 37.5 lb. It accommodates many studio cameras. This pedestal system is supplied with an air pump for weight adjustments. It even supports a double-bearing system to prevent wobbling and ensure smooth movements.
Libec RHP75
Camera Plate Features |
Sliding Balance Plate
|
Camera Mounting Screw |
2 x 3/8"-16 Male
|
Balance Plate Sliding Range |
4.3" / 110 mm
|
Base Mount |
100 mm Half Ball
|
Counter Balance |
Continuous (12 to 31 lb / 5.5 to 14 kg)
|
Bubble Level |
1 x Illuminated
|
Base Diameter |
3.93" / 100 mm
|
Drag Control |
7-Step
|
Vertical Tilt |
+90° to -70°
|
Load Capacity |
37.5 lb / 17 kg
|
Operating Temperature |
-40 to 140°F / -40 to 60°C
|
Weight |
8.4 lb / 3.8 kg
|
Libec PH-8B
Compatibility |
Libec RHP75 Video Head
Libec RHP85 Video Head Libec LX10 Video Head |
Material |
Aluminum alloy with rubberized handle
|
Effective Arm Length |
16.0 to 22.0" (40.6 to 55.9 cm)
|
Libec P110(B)
General | |
Load Capacity |
66 lb / 30 kg
|
Trim Ring |
No
|
Bowl Diameter/Thread |
100 mm
|
Minimum Height |
32" / 81.5 cm
|
Maximum Height |
62" / 157.5 cm
|
Weight |
33.5 lb / 15.2 kg
|
Transit Doorway Width |
No
|
Narrow Doorway Width |
No
|
Wheel Diameter |
4.9" / 125 mm
|
Wheel Lock |
Yes
|
Cable Guards |
No
|
