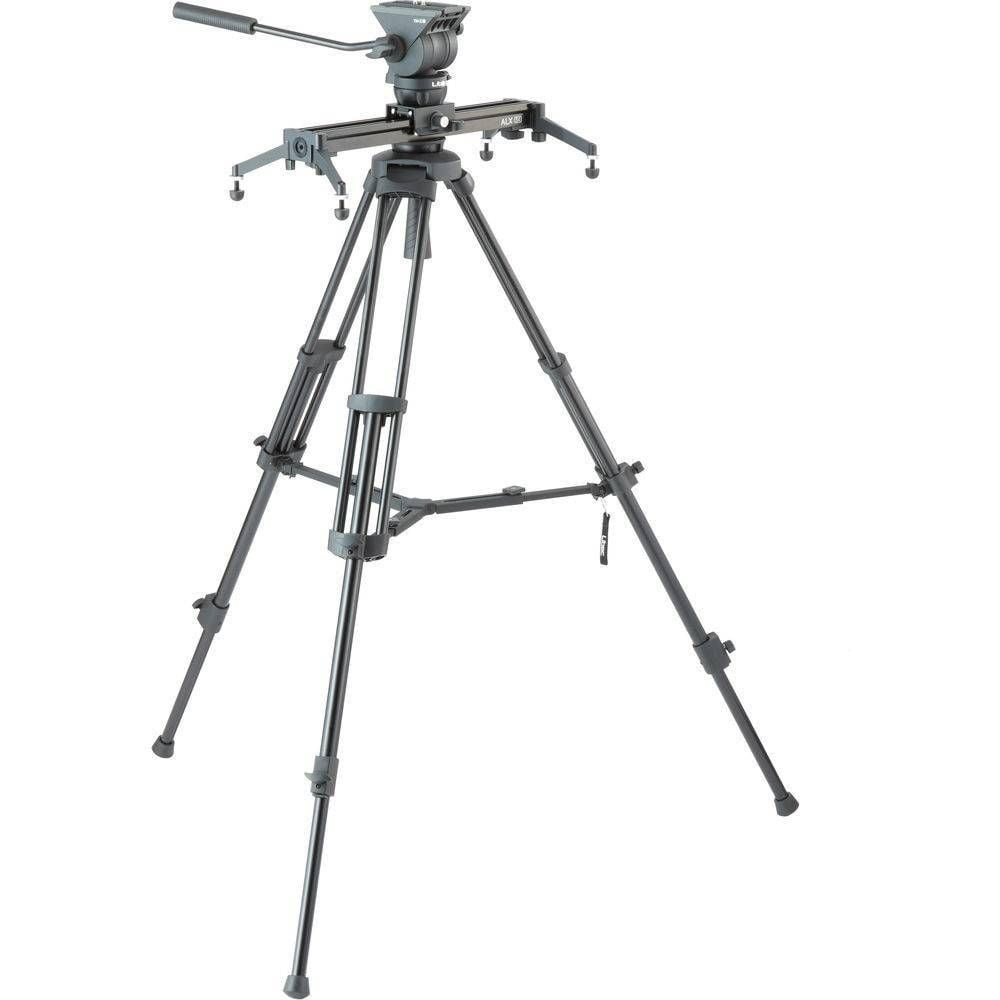

The Libec TH-Z S4 Kit is a highly flexible system featuring a fluid head that can be mounted directly on the 75mm tripod bowl or attached directly to the slider. This is thanks to the head's dual-function design consisting of a half ball with a flat base. The slider also has a 75mm half-ball and can be mounted directly on the tripod as well. The fluid head supports up to 11 lb and features fixed counterbalance and drag and a convenient snap-in camera plate system. The slider provides a 12" travel distance, and the tripod offers a height range of 23 to 58.5".
Specs
Camera Plate Features |
Sliding Balance Plate
|
Camera Mounting Screw |
1 x 1/4"-20 Male with Locating Pin
|
Balance Plate Sliding Range |
1.2" / 3.05 cm
|
Base Mount |
75 mm Half Ball
3/8"-16 Female |
Counter Balance |
Fixed
|
Pan Handle Fittings |
2 x Rosette
|
Bubble Level |
1 x Illuminated
|
Drag Control |
Fixed
|
Vertical Tilt |
+90° to -80°
|
Panning Range |
360°
|
Load Capacity |
11 lb / 4.99 kg
|
Weight |
2.4 lb / 1.09 kg
|
