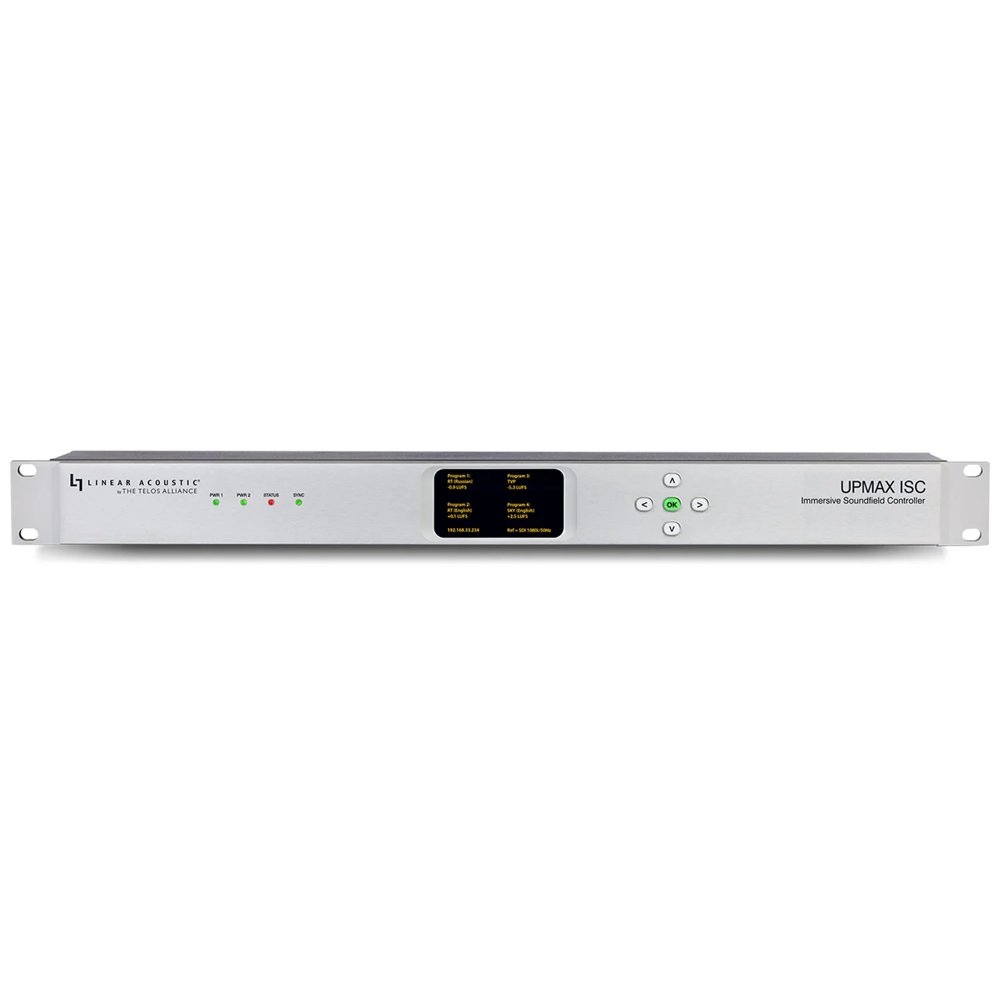

Latest Linear Acoustic UPMAX algorithm
Upmixing from 2-channel, 3-channel, 5.1-channel, and 7.1-channel to immersive 5.1.4 and 7.1.4 formats
Upmixing to legacy formats including 5.1 and 7.1
3b/s HD/SD-SDI, AES-3, and AES67 I/O to support SMPTE ST 2110-30 workflows
Optional Quad-Link SDI I/O for 4K video workflows or MADI I/O (mutually exclusive options)
Dual internal redundant auto-ranging power supplies
Browser-based remote control
Next-generation Linear Acoustic UPMAX algorithm; upmixing from 2-channel, 3-channel, 5.1-channel, and 7.1-channel to 5.1.4 and 7.1.4
48kHz reference via SDI, PTP/AES67, AES-3, internal clock, or MADI (with optional MADI I/O)
48kHz, 24-bit, 20Hz – 20kHz (passthrough); PCM audio only
Five two-channel inputs/outputs via 75 Ohm BNC unbalanced female connectors, internally terminated; signal levels per SMPTE 276M/AES-3ID-2001
Two auto-sensing 3Gb/s HD/SD-SDI inputs (SMPTE ST425/292M/259M), up to 1080i/60/59.94/50Hz, with de-embedding for 8 audio pairs; re-embedding for 8 audio pairs via one SDI output
Optional Quad-Link SDI for 4K workflows (mutually exclusive with MADI option)
16 channels of bi-directional AES67 I/O in support of SMPTE ST 2110-30
15-pin female D connector, 0-5V TTL levels, 5 GPI/O inputs, 5 GPI/O outputs
Optional MADI I/O supports up to 16 channels for processing
Passthrough and shuffling for up to 64 channels
I/O via coax or optical SFP socket (SFP sold separately)
MADI option mutually exclusive with Quad-Link SDI option
Two independent Gigabit Ethernet ports allows web-based remote access/control and AES67 I/O
5-button navigation cluster, color LCD display, LEDs for power supply, status, and sync
Dual internal power supplies, each rated at 100-264VAC, 50/60Hz, auto-sensing, 100W maximum total
1RU – 1.75”H x 19”W x 15.5”D (44 x 483 x 394 mm)
Approximate net weight 9 lbs (4 kg)
Approximate shipping weight 16 lbs (7.26 kg)
Fan-cooled; operating temperature 32 to 122 degrees F (0 – 50 degrees C); non-operating temperature -4 to 158 degrees F (-20 – 70 degrees C)
North America – FCC and CE tested and compliant; power supplies are UL-approved
Europe – Complies with European Union Directive 2002/95/ EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS), as amended by Commission Decisions 2005/618/EC, 2005/717/ EC, 2005/747/EC (RoHS Directive), and WEEE
