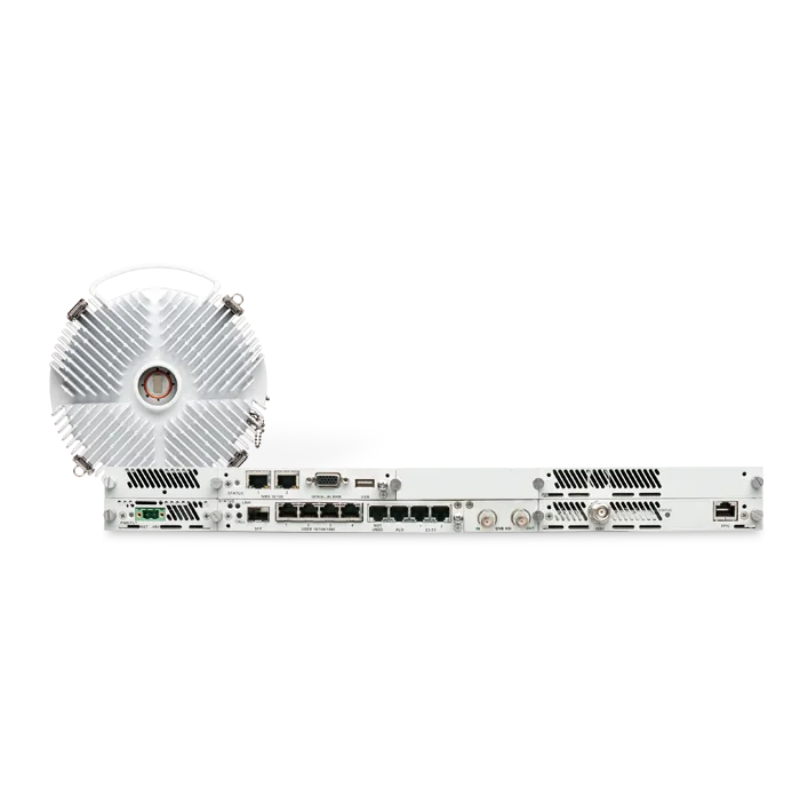

MOSELEY DTV-SH OUTDOOR UNIT 6-23 GHZ STANDARD POWER
SKU
MOS-DTV-SH-ODU-STD
MFR#
DTV-SH-ODU-STD
$4,750.00
Availability:
Out of stock
MOSELEY DTV-SH OUTDOOR UNIT 6-23 GHZ STANDARD POWER
DTV-SH split indoor/outdoor STL/TSL delivers economical, single or multiple DVB-ASI Streams plus IP data streams and data associated with specific DVB-T2-MI / ISDBT International streams to the transmitter site. The digital modulation utilizes Reed-Solomon and Trellis Coded Error Correction to provide unparalleled error-free performance.
Features:
- DVB-ASI E1/T1 + GigE transport for maximum flexibility, conforms to today's and future requirements. DVB-T2-MI / ISDBT-International streams are supported
- Multi ASI module available for up to 8 ASI streams or SMPTE-310
- Standard Data Rates to 155 Mbps for maximum payload capacity
- Spectrum Scalable QPSK to 128QAM conforms to channel bandwidth and payload requirements
- Frequency Range 6 to 38 GHz - Frequency-agile within each band
- Split architecture - Indoor SDIDU and Outdoor ODU direct mounts to antenna
- Superior Network Management capability with built-in Web Server and SNMP software gives unmatched system analysis and monitoring
Specifications:
| Frequency Range | 6–40 GHz Confirm frequency band with factory. |
| Capacity - DVB-ASI | Up to 100 Mbps full duplex |
| Capacity - Ethernet | Up to 100 Mbps full duplex + 2 E1/T1 wayside |
| Capacity - E1/T1 | 8 or 16 E1/T1 with up to 40 Mbps + 2 Mbps for NMS traffic |
| Modulation | QPSK, 16-QAM, 32-QAM, 64-QAM, 128-QAM |
| Encryption | 128-bit key encryption (select markets, all models) |
| FEC | Trellis Coded Modulation + Reed-Solomon Coding |
| Avg. Output Power | QPSK: +25 dBm @ 7GHz 16/32-QAM: +21 dBm @ 7GHz |
| Receive Sensitivity | -84 to -80 dBm (E1/T1) -84 to -70 dBm (Ethernet DVB-ASI) |
| Regulatory | Per applicable ETSI/Fed |
| Antenna Connector | Coax, circular or rectangular waveguide |
| Distance | 1–10 miles (or greater, depending on antenna and frequency) |
| Power | 48V ±10%, <70W Optional 100–240V AC, 47–63 Hz |
| Optional Features | Contact factory |
| Support | SNMP, built-in web browser |
| Connector | RJ-45, 10/100Base TX |
| Physical | DVB-ASI, Ethernet (100 BaseTX), N × E1/T1 (Full duplex) |
| Connector | DVB-ASI: BNC Ethernet: RJ-45 N × E1/T1: 2 × RJ-48C, HD60 |
| Compliance | Ethernet: IEEE 802.3 SONET/OC-3: Telcordia E1/T1: ITU-T |
| Wayside | Channels: T1/E1 Interface: DSX-1 Connector: RJ-48C |
| Alarm Port | Two Form C relay alarm outputs, 2 TTL outputs |
| Voice Service Channel | 6 wire, PTT handset |
| Data Service Channel | 64 kbps |
| Temperature | IDU: -5° to 55°C ODU: -30° to 55°C |
| Relative Humidity | IDU: 0 to 95%, non-condensing ODU: Up to 100% at 45°C |
| Altitude | IDU/ODU both 4500 m |
| Size | IDU: IRU, ETSI compliant (44.5 × 23.8 × 4.5 cm), rack mount (19 in., 48.2 cm) ODU: 33 dia. × 13 cm (13 dia. × 5 in.) |
| Weight | IDU: 7 lbs ODU: 15 lbs |
