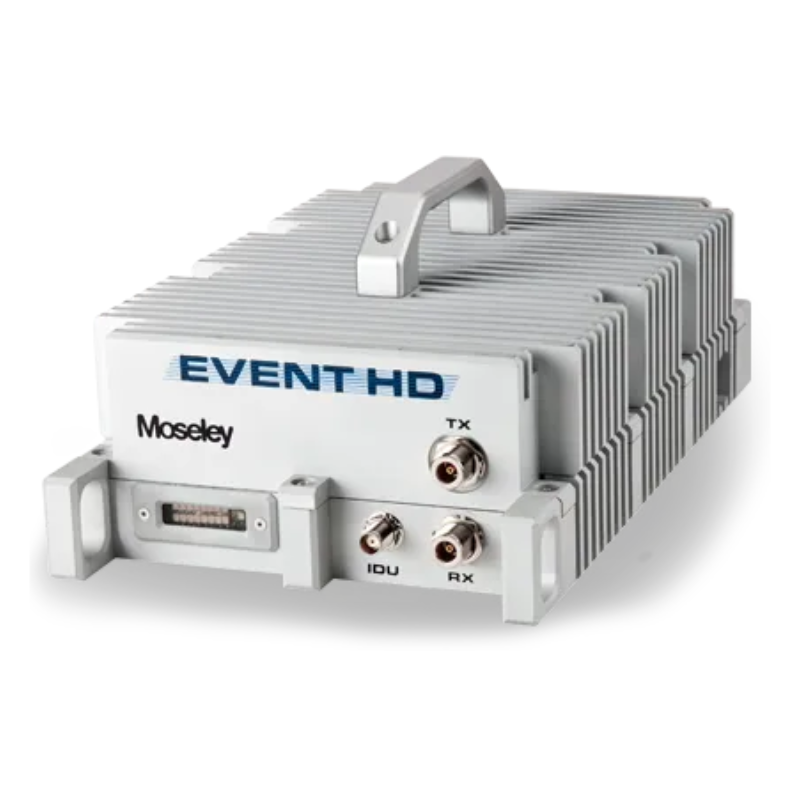

MOSELEY EVENT-HD-ODU EVENT MOBILE OUTDOOR UNIT 7-13 GHZ BAND SIMPLEX OR DUPLEX
SKU
MOS-EVENT-HD-ODU
MFR#
EVENT-HD-ODU
$7,950.00
Availability:
Out of stock
MOSELEY EVENT-HD-ODU EVENT MOBILE OUTDOOR UNIT 7-13 GHZ BAND SIMPLEX OR DUPLEX
Event HD split ENG Link delivers economical, single or multiple DVB-ASI Streams plus IP data streams and data associated with specific DVB-T2-MI / ISDBT-International streams to the transmitter site. The digital modulation utilizes Reed-Solomon and Trellis-Coded Error Correction to provide unparalleled error-free performance.
Features:
- DVB-ASI E1/T1 + GigE transport for maximum flexibility, conforms to today's and future requirements. DVB-T2-MI / ISDBT-International streams are supported
- Multi ASI module available for up to 8 ASI streams or SMPTE-310
- Standard Data Rates to 155 Mbps for maximum payload capacity
- Spectrum Scalable QPSK to 128-QAM conforms to channel bandwidth and payload requirements
- Frequency Range 1.5 to 13 GHz - Frequency-agile within each band
- Split architecture - SDIDU and RFU allows flexible mounting in road case or tripod
- Superior Network Management capability with built-in Web Server and SNMP software gives unmatched system analysis and monitoring
Specifications:
| Frequency | 1.5GHz to 13GHz in Selected band (fully synthesized)* |
| Step Size | 500 kHz |
| Data Rates | For selected examples, see table below. |
| Modulation | 4, 16, 32, 64, and 128 QAM (dependent on RF, consult factory) For selected examples, see table below‡. |
| Temperature Range | Full performance: 0° to +50°C |
| Power Source | 48 VDC or 115/230 VAC, 80 W nominal |
| Diagnostics | Local and remote status/control. Monitoring of BER, RSL, Alarms, Status, and Historical info via Web-Server and SNMP |
| Interfaces | DVB-ASI, 100Base-T, T1, E1 |
| Unfaded BER | 1 x 10⁻¹² |
| Error Correction | Trellis-Coded Modulation + Reed-Solomon Coding + Trellis Correction 1/2, 3/4, 5/6, 7/8, 9/10 |
| Protection | Space, Frequency, or Cold/Hot Standby |
| Standards | ETS 300 385 EMC/EMI, and FCC part 74/94/101 |
| Type | Superheterodyne Conversion |
| Frequency | 1.5GHz to 13GHz in Selected band (fully synthesized)* |
| Power Out | 5 W 16QAM @ 2 GHz and 1 W at 6.5–7.6 GHz; 23 dBm @ 23GHz for 16QAM. Consult factory for high power. |
| Step Size | 500 kHz |
| Occupied Bandwidth | 6–50 MHz, dependent on operating mode and modem option |
| Monitoring | Local Web Server with SNMP and Programmable Relays |
| Tunable Bandwidth | 100 MHz (400 MHz optional) |
| Type | Superheterodyne Conversion |
| Frequency | 1.5GHz to 13GHz in Selected band (fully synthesized)* |
| Receive Sensitivity | -82 dBm (typical, dependent on data rate/modulation) For selected examples, see table below. |
| Step Size | 500 kHz |
| Channel Bandwidth | 6–50 MHz dependent on operating mode and modem option |
| Monitoring | Local Web Server with SNMP and Programmable Relays |
