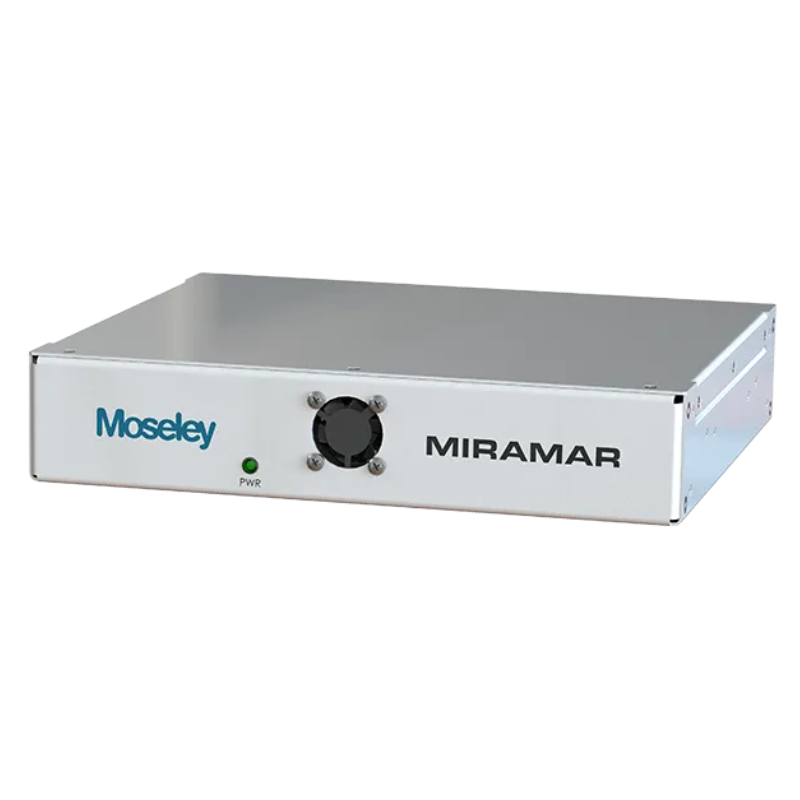

main product photo
Loading...
MOSELEY MIRAMAR-PSY MIRAMAR POWER SUPPLY

MOSELEY MIRAMAR-PSY MIRAMAR POWER SUPPLY

MOSELEY DTV-SH-IDU-1+1 DTV-SH IDU 1+1 SOFTWARE DEFINED INDOOR UNIT FOR DIGITAL VIDEO STL/TSL FULL DUPLEX 1+1 HOT STANDBY

MOSELEY DTV-SH-IDU-1+1 DTV-SH IDU 1+1 SOFTWARE DEFINED INDOOR UNIT FOR DIGITAL VIDEO STL/TSL FULL DUPLEX 1+1 HOT STANDBY

MOSELEY MIRAMAR-SFP IP OR FIBER SFP MODULE FOR MIRAMAR

Moseley
SKU
MOS-MIRAMAR-SFP
MFR#
MIRAMAR-SFP
$120.00
Availability: Out of stock
MOSELEY MIRAMAR-SFP IP OR FIBER SFP MODULE FOR MIRAMAR
Be the first to review this product
Add to Wish List:

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

The Moseley Miramar provides stream aggregation for up to 8 ASI inputs or outputs over a Moseley Microwave Radio or fiber link, private intranet or Internet. Video stream monitoring and IP stream redundancy with seamless switchover provide for always-up operation.

Your Rating

Features:

  • Eight ASI Inputs or Outputs, User Configurable
  • Video Stream Monitoring with Auto Switchover
  • Local Monitor Port
  • 2 Network Ports Available with IP or Fiber Interface Options
  • Point to Point or Multicast Capable
  • IP Stream Redundancy with Seamless Switchover
  • Web Browser and SNMP User Interfaces

Specifications:

Channels 8 (Each configurable as input or output); unused ports can be configured as “monitor” ports
Maximum Radio/Trunk Bandwidth 1 Gbps
Ports 8× DVB-ASI, 2× SFP (Ethernet or Fiber Modules), Monitor, Management
Type DVB-ASI streams, 188 or 204 bytes, SMPTE-310M
Video Stream Monitoring ETR10290 Monitoring: ETSI TR 101 290 V1.4.1 (2020-06), Supports Priority 1 (all) monitoring
PSI/SI Analysis Auto adaptive and real-time
Standards & Protocols EN50083-9 Annex B Compliant
Input/Output Impedance 75 Ohm
Connectors (Video) BNC
Network Ports SFP
Network Interfaces Ethernet or Fiber 10/100/1000 Mbps (SGMII SFP Adapter)
Redundancy Mode SMPTE 2022-7 Seamless Protection Switching
Connectors (Network) RJ-45 (Ethernet), SC/LC (Fiber)
Status Indicators Power/Active, ASI Port Activity, Ethernet Interface Activity
User Interface Web Browser, SNMP
Management Connector RJ-45
Power Requirements -48 VDC Internal (2 Inputs), Universal AC to -48 VDC External Adapter, 25 Watts
Dimensions 8.45" W × 7.47" D × 1.676" H (215 mm × 189.7 mm × 42.57 mm)
Mounting Options 19" Rack Mount – 1/2 Rack-unit, Front or Rear Mount, Single or Optional Dual Mount
Weight 2 lbs (0.91 kg)
Operating Temperature 0°C to +70°C Ambient
Operating Humidity 90% (Non-condensing)
