NAGA NSCASTER X1-A HIGHLY INTEGRATED NAVIGATION TABLET; 4G BONDING
SKU
NSCASTERX1-A
MFR#
NSCASTERX1-A
$4,899.00
Availability:
Out of stock

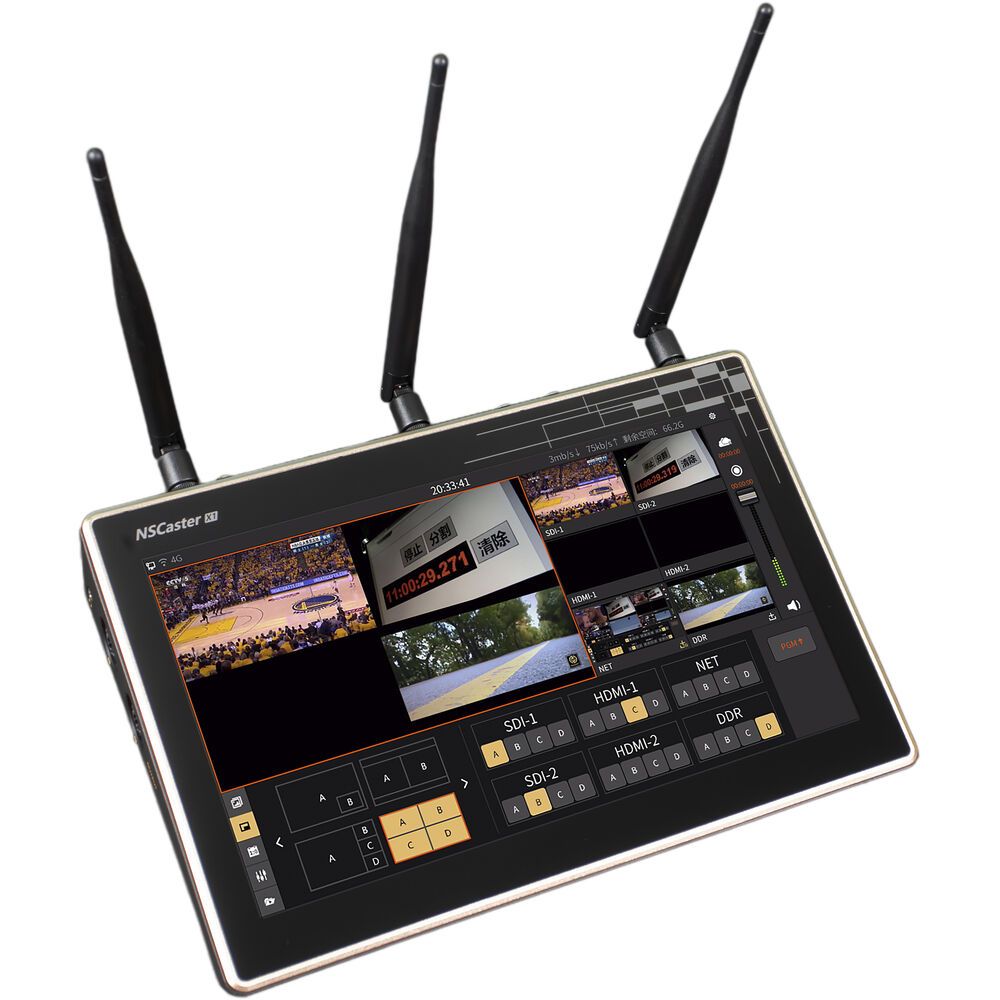

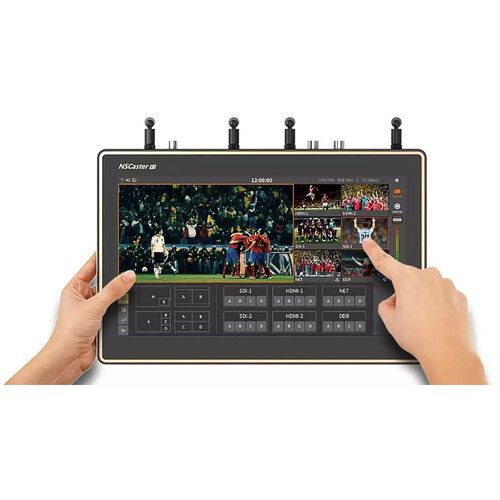

NAGA NSCASTER X1-A HIGHLY INTEGRATED NAVIGATION TABLET; 4G BONDING
Switch and control multiple video sources for broadcast or streaming with the NSCaster-X1A Integrated Production Tool from NagaSoft. The portable NCaster-X1 features two HDMI and two 3G-SDI inputs, and it can mix and stream audio and effects and output video to HDMI, 3G-SDI, or NDI|HX IP network destinations. This model features a 4G bonding module that allows you to mix up to three 4G mobile SIM card signals for an aggregate 30 Mb/s transmission signal, and it also allows hot-swapping of SIM cards. The unit allows you to control and preview your sources and PGM using its integrated 11.6" touchscreen display.
Key Features
- Multichannel Touchscreen Video Switcher
- HDMI and SDI Inputs and Outputs
- Wi-Fi and LAN Connectivity, 4G Bonding
- NDI|HX License Included
- Audio Mixer, Effects, Recording
- 3-Pin XLR Analog Audio Input/Output
- 500GB Internal SSD
NagaSoft NSCaster-X1 Specs
| Effect Types |
Graphic, Transition
|
| Audio Mixing |
2-Channel Mixing
|
| Switching Type |
Software, Touchscreen
|
| Number of Video Input Sources |
4
|
| Video Inputs |
2x BNC (3G-SDI) Female
2x HDMI Female |
| Audio Inputs |
2x XLR 3-Pin Mono Analog Female
|
| Embedded Audio Input |
HDMI
SDI |
| Video Output Channels |
3
|
| Video Outputs |
1x BNC (3G-SDI) Female (Program)
1x HDMI Female (Program) 1x RJ45 (HX/NDI) Female |
| Audio Outputs |
2x XLR 3-Pin Mono Analog Female
1x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Embedded Audio Output |
HDMI
SDI USB-A |
| Multiview Output |
6-Way Multiview
|
| Monitor Output |
1x HDMI
|
| Other I/O |
1x DE-15/DB-15 Tally Input/Output
2x USB-A Input 1x RJ45 LAN Input/Output |
| Transport Protocols |
NDI/HX, RTMP, RTP
|
| Internal Storage |
500 GB
|
| Display Size |
11.6"
|
| Processor |
Not Specified by Manufacturer
|
| Wi-Fi |
Yes
|
| Bluetooth |
No
|
| Power I/O |
1x Barrel Input
|
| Power Consumption |
Device: 100 to 240 VAC
|
| Operating Temperature |
22 to 82°F / -10 to 50°C
|
| Storage Temperature |
-4 to 158°F / -20 to 70°C
|
| Operating Humidity |
10 to 90%
|
| Storage Humidity |
10 to 90%
|
