PANASONIC AJ-CX4000GJ PROFESIONAL 4K/HDR STREAMING CAMCORDER WITH B4 LENS MOUNT
SKU
PAN-AJ-CX4000GJ
MFR#
AJ-CX4000GJ
was
$27,510.00
Special Price
$25,000.00
Availability:
Out of stock

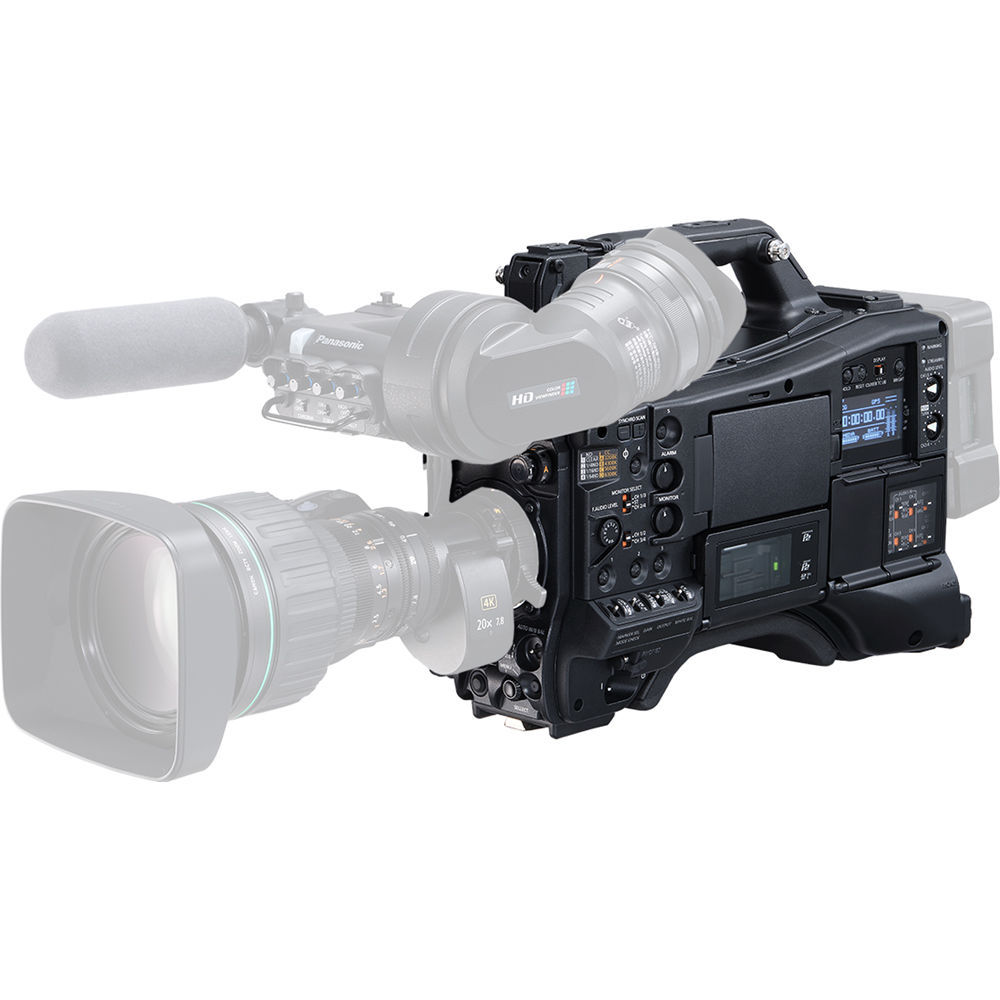

PANASONIC AJ-CX4000GJ PROFESIONAL 4K/HDR STREAMING CAMCORDER WITH B4 LENS MOUNT
Designed for today's variable broadcasting needs, the AJ-CX4000GJ Pro 4K/HDR Streaming Camcorder from Panasonic melds UHD 4K, SRT streaming capabilities with the in-camera recording of a familiar B4 lens-mount, shoulder-supported camcorder. This 4/3" type, 11.4MP sensor video camera captures outstanding images at resolutions up to UHD 4K60 and offers nuanced, HLG (hybrid log-gamma) and Panasonic V-Log HDR recording. Video outputs include 12G-SDI, 3G-SDI, and HDMI connectors and card options consist of one expressP2 slot and two microP2/SD/SDHC/SDXC hybrid slots. Use the AJ-CX4000GJ camcorder with an optional Panasonic wireless module or a third-party USB dongle for wireless connectivity using Wi-Fi, 4G/5G, or connect it to your wired LAN network using the locking Ethernet connector. NDI|HX connectivity is available via a separate license from NewTek.
Key Features
- One 4/3" MOS Image Sensor, 11.1MP
- UHD 4K 3840 x 2160 up to 60p
- HLG & Panasonic V-Log HDR Recording
- SRT-Compatible UHD 4K Streaming
- AVC-ULTRA Recording/Dual Codec Recording
- 1 x P2 & 2 x microP2/SD Card Slots
- 12G/3G-SDI BNC & HDMI Outputs
- Genlock In, Timecode In/Out
- Optional Wi-Fi & Wireless Video Modules
- IP, Table & Smartphone Control Option
Panasonic AJ-CX4000GJ Specs
| Lens Mount |
B4
|
| Lens Communication |
Yes
|
| Sensor Resolution |
Effective: 11.14 Megapixel
|
| Image Sensor |
4/3"-Type MOS
|
| Image Stabilization |
No
|
| Built-In ND Filter |
Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
|
| Capture Type |
Video Only
|
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/1000 to 1/100 Second
|
| Gain |
-6 to 30 dB (Native)
-6 to 42 dB (Expanded) |
| Shutter Angle |
3 to 360° in 0.5° Increments
|
| Signal-to-Noise Ratio |
62 dB
|
| White Balance |
2000 to 15,000K
Presets: ATW, AWB |
| Internal Recording Modes |
AVC-Intra/MOV/P2 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 1440 x 1080i at 50/59.94 fps AVC-Intra/MOV/P2 4:2:0 10-Bit UHD 4K (3840 x 2160) at 23.98/25/50/59.94 fps UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 up to 50/59.94 fps 1440 x 1080i at 50/59.94 fps AVC-LongG/MOV/P2 4:2:0 8-Bit UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 1440 x 1080i at 50/59.94 fps |
| External Recording Modes |
SDI/BNC / RJ45
3840 x 2160 up to 60.00 fps |
| Fast-/Slow-Motion Support |
Yes
|
| Gamma Curve |
HDR-HLG, Panasonic V-Log
|
| Broadcast Output |
NTSC/PAL
|
| Built-In Microphone |
No
|
| Audio Recording |
AVC-Intra: 4-Channel 24-Bit 48 kHz
AVC-Intra: 4-Channel 16-Bit 48 kHz AVC-Long: 4-Channel 24-Bit 48 kHz AVC-Long: 4-Channel 16-Bit 48 kHz |
| IP Streaming |
H.264
360 x 180 to 3840 x 2160 at 24p, 25p, 30p, 50p, 60p (0.5 to 75.00 Mb/s) |
| Media/Memory Card Slot |
Single Slot: expressP2
Dual Slot: SD/SDHC/SDXC/microP2 Hybrid (UHS-III) [V90 or Faster Recommended] |
| Video I/O |
1x BNC (12G-SDI) Output
1x BNC (3G-SDI) Output 1x HDMI (Unspecified Signal) Output |
| Audio I/O |
2x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
1x XLR 5-Pin Microphone (+48 V Phantom Power) Output 2x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Power I/O |
1x XLR 4-Pin (11 to 17VDC) Input
1x Hirose 4-Pin (11 to 17VDC up to 1.5 A) Output 1x Light 2-Pin (11 to 17VDC up to 4.5 A) Output |
| Other I/O |
1x BNC (Genlock) Input
1x BNC (Timecode) Input/Output 1x D-Sub 25-Pin (Wireless Receiver) 1x Lens 12-Pin Control 1x 20-Pin Monitor Output 1x RJ45 (Gigabit Ethernet, LAN) 1x USB-A (USB 2.0) Video 1x USB-C (USB 3.2 / 3.1 Gen 1) |
| Wireless |
No
|
| Mobile App Compatible |
No
|
| Global Positioning (GPS, GLONASS, etc.) |
No
|
| Display Type |
Articulating Touchscreen LCD
|
| Display Size |
3.5"
|
| Resolution |
2,760,000 Dot
|
| Type |
Optional, Not Included
|
| Focus Type |
Auto and Manual Focus
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
10 to 80%
|
| Battery Type |
Gold Mount
|
| Power Consumption |
32 W
|
| Shoe Mount |
No
|
| Tripod Mounting Thread |
3/8"-16 Female
|
| Accessory Mounting Thread |
No
|
| Dimensions (W x H x D) |
13.7 x 10.5 x 5.6" / 348 x 267 x 143 mm (Without Protrusions)
|
| Weight |
7.5 lb / 3.4 kg (Body Only)
|
