PANASONIC AV-UHS5M2G 12G- SDI OUTPUT OPTION BOARD
SKU
PAN-AV-UHS5M2G
MFR#
AV-UHS5M2G
$5,252.00
Availability:
Out of stock

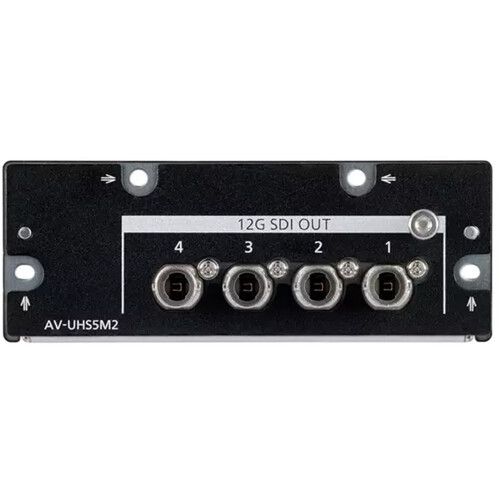

PANASONIC AV-UHS5M2G 12G- SDI OUTPUT OPTION BOARD
Expand the output ports on your AV-UHS500 Live Switcher using this Panasonic 12G-SDI Output Expansion Unit and its four 12G/3G-SDI configurable outputs. All four of the BNC ports can perform down-conversion, color space conversion, and HDR/SDR conversion. They can also be assigned as PGM, OVW, CLN, ME PGM, MV1, MV2, AUX1 to AUX4, and Key Out on your switcher. The unit installs into one of the two available slots on the switcher, which also supplies it with power.
Key Features
- Four 12G/3G-SDI Output Ports
- For AV-UHS500 Live Switcher
- Down Converter, Color Space Conversion
- Powered via Switcher
Panasonic AV-UHS5M2G Specs
| Output Ports |
4 x BNC, 12G-SDI
|
| Output |
Down-Converter
Color Space Conversion PGM, PVW, CLN, ME PGM, MV1 to MV2, AUX1 to AUX4, Key Out |
| SDI |
12G-SDI, 3G-SDI, HD-SDI
|
| SMPTE |
SMPTE ST 2082-10
SMPTE 292 SMPTE 292M |
| Power Supply |
12 VDC
|
| Power Consumption |
15 W, 1.2 A
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
10 to 90 % (Non-Condensing)
|
| Storage Humidity |
10 to 90 % (Non-Condensing)
|
| Dimensions |
6.6 x 4.4 x 1.7" / 167 x 112 x 42 mm
|
| Weight |
11.2 oz / 371 g
|
