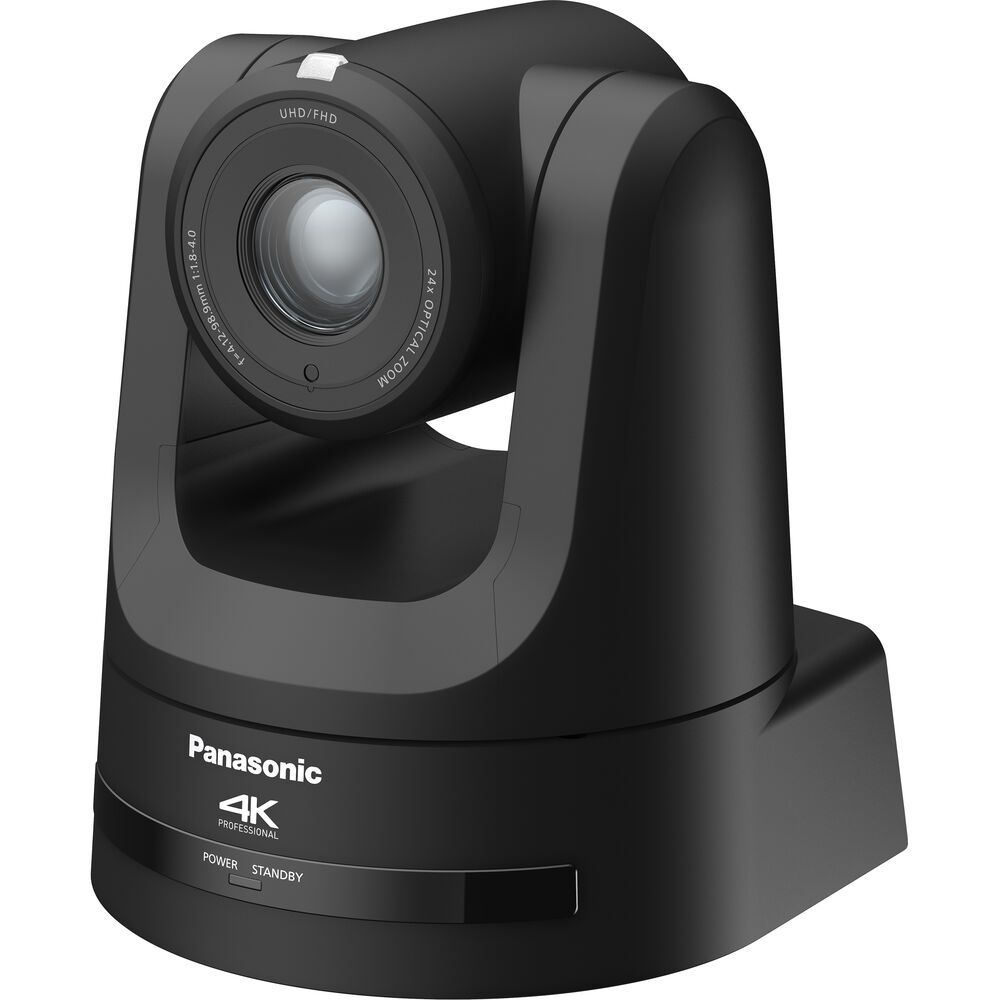

PANASONIC AW-UE100KPJ 4K NDI PRO 12G-SDI/HDMI PTZ CAMERA WITH 24X OPTICAL ZOOM BLACK
SKU
PAN-AW-UE100KPJ
MFR#
AW-UE100KPJ
$7,389.00
Availability:
Out of stock
PANASONIC AW-UE100KPJ 4K NDI PRO 12G-SDI/HDMI PTZ CAMERA WITH 24X OPTICAL ZOOM BLACK
The black 4K NDI Pro 12G-SDI/HDMI PTZ Camera with 24x Optical Zoom from Panasonic features a 1/2.5" 4K MOS sensor and outputs over HDMI, or you can use the NDI or NDI|HX protocols to stream video and audio, control (IP), tally, and power over a single Ethernet cable using PoE++ (Power-over-Ethernet).
The camera supports uncompressed video transmission over NDI and MJPEG, H.265, H.264, and NDI|HX compression formats. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems. You can also control the unit via its RS-422 serial input with a separately available serial PTZ controller.
Key Features
- 1/2.5" 4K MOS Sensor
- HDMI, 12G-SDI, NDI & NDI|HX Output
- 24x Optical Zoom, Capture up to UHD 4K
- 3.3-74.1° Horizontal Field of View
- ±175° Pan Range
- -30 to 210° Tilt Range
- Optical & Electronic Image Stabilization
- Embedded Audio & 3.5mm Stereo Analog In
- MJPEG/H.264/H.265/NDI/NDI|HX Streaming
Panasonic AW-UE100Specs
| Image Sensor |
1/2.5"-Type MOS
|
| Horizontal Resolution (TV Lines) |
1500 TV Lines
|
| Sensor Resolution |
Effective: 8.49 Megapixel
|
| Built-In ND Filter |
Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
|
| Image Stabilization |
Optical in Integrated Lens
Digital |
| Focus Control |
Autofocus
Manual Focus |
| Shutter Speed |
1/10000 to 1/24 Second
|
| Gain |
0 to 36 dB
|
| Precise Scan Rate Control |
Yes
|
| Signal-to-Noise Ratio |
60 dB
|
| Minimum Illumination |
3 Lux
|
| Flip / Mirror Support |
Image Flip
|
| White Balance |
Range: 2000 to 15,000K
Presets: ATW, AWB |
| Focal Length |
4.1 to 98.9mm (35mm Equivalent: 25 to 600mm)
|
| Optical Zoom Ratio |
24x
|
| Max Digital Zoom |
36x ( in 1080p)
|
| Field of View |
Horizontal: 74.1 to 3.3°
Vertical: 46 to 1.9° Diagonal: 81.8 to 3.8° |
| Maximum Aperture |
f/1.8 to 4
|
| Minimum Focus Distance |
Wide: 0.3' / 10.0 cm
Entire Zoom Range: 3.9' / 120.0 cm |
| External Recording Modes |
SDI/BNC
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1920 x 1080PsF at 23.98/25/29.97 fps 1280 x 720 at 50/59.94 fps 4:2:2 10-Bit via HDMI 3840 x 2160 at 25/29.97/50/59.94 fps 1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1920 x 1080PsF at 23.98/25/29.97 fps 1280 x 720 at 50/59.94 fps |
| Audio Recording |
24-Bit 48 kHz
16-Bit 48 kHz AAC Audio |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264, H.265, MJPEG, NDI|HX, RTMP, RTMPS, RTP, SRT, TCP, UDP
3840 x 2160 at 23.98p, 25p, 29.97p, 50p, 59.94p 1920 x 1080 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p 1280 x 720 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p 640 x 360 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p 320 x 180 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p |
| Move Speed |
Pan: 0.08 to 180°/sec
Tilt: 0.08 to 180°/sec |
| Movement Range |
Pan: 350° (-175 to 175°)
Tilt: 240° (-30 to 210°) |
| Supported Control Protocols |
IP
RS-422 |
| Video I/O |
1x BNC (12G-SDI) Output
1x HDMI 2.0 Output 1x RJ45 (NDI) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Other I/O |
1x BNC (Genlock) Input
1x RJ45 (RS-422) Input |
| PoE Support |
PoE++ 802.3bt
|
| Power I/O |
1x Barrel (10.8 to 13.2VDC) Input
|
| Power Consumption |
Device: 3 A
Power Supply: 3 A PoE: 42 to 57 VDC at 1.2 A |
