Reflecmedia's Wideshot Chromatte background is expressly designed to work in conjunction with a LiteRing. The LiteRing features Light Emitting Diodes (LEDs) that are arranged in a circular casing that is positioned in front of the camera lens. This provides all the light required to illuminate the Wideshot Chromatte background for chroma key production.
The RM 7227DS Wideshot All In One Bundle with Small Dual LiteRing builds upon the remarkable success of the original and combines features that make it more versatile than ever! The included controller allows you to change the color from green to blue (and back) with the flick of a switch and offers 256 increments of 0-100% dimming. It's powered by 12VDC from the included universal power supply or optional camera or external batteries. The LiteRing itself also features a diffusion filter over the LED lights.
The LiteRing fits lenses with a diameter of 72 mm and under. Specially designed optional adapter rings simply screw into the filter thread on the front of the lens and then the LiteRing is placed on to the adapter and locked with a single screw, significantly reducing the set-up time associated with conventional chroma key.

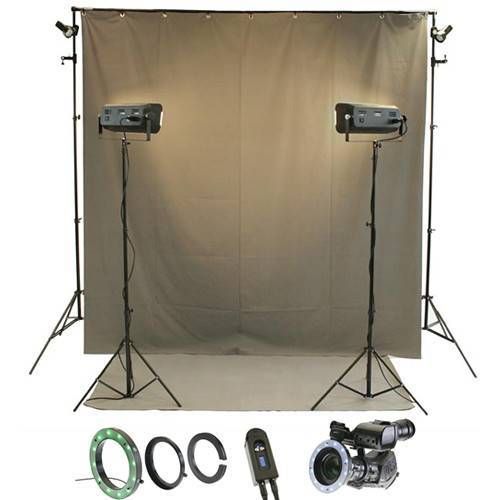

The rest of the kit is rounded out by just about everything you'll need to do advanced chroma key work. A 7.0 x 12' Wideshot Chromatte Backdrop and a support stand are included with two 4.0 x 6.0' BaseMatte Tiles, as well as 2 Iztac front lights with stands and 2 clip-on backlights.
Reflecmedia RM 3251S Small Dual LiteRing Specs
Item Type | 1 x LED Ring Light |
Included Filters | Diffusion (Built-In) |
Included Storage Case | None |
Photometrics | Not Specified by Manufacturer |
Color Modes | Chroma Blue, Chroma Green |
Cooling System | None |
Dimming | Yes, Requires Hardware (Not Included) |
Built-In Flash | No |
Umbrella Mount | No |
Front Accessory Mount | Proprietary |
Mobile App Compatible | No *As of July, 2023: Check with manufacturer for the most up-to-date compatibility |
Power Source | AC to DC Adapter (Not Included) *Requires Power Supply/Controller (Not Included) Battery (Not Included) *Requires Power Supply/Controller (Not Included) |
Inputs/Outputs | 1 x Built-In Cable with XLR 3-Pin Power Input |
Battery Plate Type | 1 x Sony L-Series / NP-F (Not Included) |
Battery | 1 x Sony-Type L-Series / NP-F Rechargeable (Not Included) |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 22.1 VDC at 0.45 A |
Inline Switch | No |
Power Pass-Thru | No |
Power Consumption | 12 W (Maximum) |
Intended Application | Powering Dual LiteRing Photographic/film studios and similar locations |
Input | 7.5 - 12VDC 4 Pin XLR power input, Pin 1 0V, Pin 4 +V 7.5VDC via SONY NP-F built-in MDV battery mount |
Output | 3 pin XLR. Pin 1 +V (common) Pin 2 0V(1) Pin 3 0V(2) LiteRing output Max. 0.45A, 22.1VDC |
Dimming | 0 - 100% in 256 discreet steps (values of 0 - 255) |
Control | Dimming, selection of blue or green LEDs |
Power Source | Optional external batteries Optional Sony NP-F camera batteries Optional universal power adapter (90-240VAC) |
Power Consumption | 12W maximum |
Ratings | IP30 (dry locations) Electric insulation class: III |
Operating Conditions | Maximum ambient temperature: 122°F (50°C) Maximum surface temperature: 176°F (80°C) |
Reflecmedia Lite-Ring World Power Supply 90-240V AC To 12V DC With USA, UK & Euro Plugs Specs
Output Voltage | 12V DC |
Output Current | 600 mAh |
Power Source | 90-240V AC |
Connector | 4 Pin XLR power connection |
Reflecmedia Chromatte Curtain With Bag (12x7') Specs
Quantity | 1 |
Color/Design | Chromatte / Gray |
Size | 7.0 x 12.0' / 2.1 x 3.7 m |
Material | Fabric |
Mounting | Grommets |
