RGBLINK MINI-MIX PN 230-0004-01-0 4K MULTICHANNEL STREAMING VIDEO SWITCHER
SKU
RGB-MINI-MX
MFR#
230-0004-01-0
was
$1,299.00
Special Price
$1,199.00
Availability:
In stock

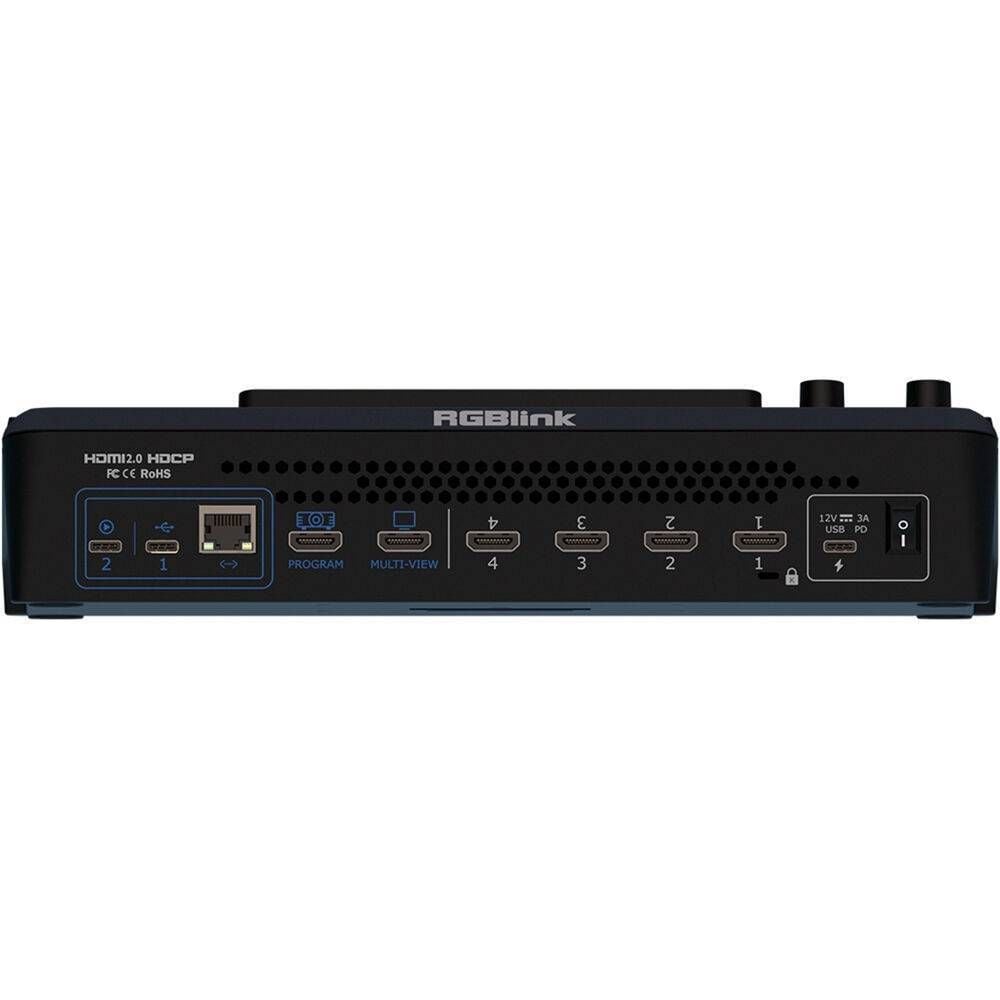

RGBLINK MINI-MIX PN 230-0004-01-0 4K MULTICHANNEL STREAMING VIDEO SWITCHER
Mix and stream up to four HDMI video sources with the mini-mx Streaming Video Mixer from RGBlink. The mini-mx is a compact 4-channel streaming device that provides four HDMI 2.0 inputs that support up to 4K60 resolution video. It also features dual mic inputs, internal mixing of embedded HDMI and external audio, and audio monitoring output for professional audio options. The switcher can be controlled and configured via a computer using RGBlink software. It allows you to simultaneously stream via IP directly to up to four streaming platforms, or by using the TAO app, you can stream simultaneously to up to 32 platforms.
Key Features:
- Input up to 4 x HDMI Video Sources
- Supports up to 4K60 Resolution
- Store 16 Scene Presets, 15 Switch FX
- Dual Mic Inputs and Outputs
- Audio Mixing with HDMI & External Audio
- 5.5" Color Touchscreen for Controls
- PTZ Joystick Control for up to 4 Cameras
- Chroma Key, Overlays, Scaling, Cropping
- HDMI Preview/Program Outputs
- Control using Computer Software via USB
RGBlink Mini-Mx Specs
Processing:
| Switching Type | Mechanical Switch, Pushbutton, T-Bar |
| Latency | 4 Frames |
| Color Processing | 4:4:4YUV |
Input:
| Video Inputs | 4 x HDMI (2.0) Female |
| Input Video Format | HDMI DCI 4K at 60 fps UHD 4K at 60 fps WUXGA (1920 x 1200) at 60 fps 1080p at 23.98/25/50/59.94/60 fps 1080i at 50 fps WUXGA+ (1680 x 1050) at 60 fps UXGA (1600 x 1200) at 60 fps WXGA+ (1440 x 900) at 60 fps FWXGA (1366 x 768) at 60 fps 1360 x 768 at 60 fps SXVGA (1280 x 1024) at 60 fps WXGA (1280 x 800) 60 fps 1280 x 768 60 fps 1280 x 720 60 fps XGA (1024 x 768) 60 fps 720p at 50/60 fps |
| Audio Inputs | 2 x Combo XLR-1/4" TRS Female 1 x 1/4" TRS Female |
| Embedded Audio Input | HDMI |
Output:
| Video Outputs | 1 x USB-C (3.0) Female 1 x USB-C (3.0) Female 2 x HDMI (1.3) |
| Output Video Format | HDMI (4:4:4 YUV) 1080p at 23.98/25/50/59.94/60 fps 1360 x 768 at 60 fps SXGA (1280 x 1024) at 60 fps 1280 x 768 at 60 fps 720p at 50/60 fps 1280 x 720 (Non-Standard WXGA) at 60 fps XGA (1024 x 768) at 60 fps |
| Audio Outputs | 1 x 1/8" / 3.5 mm TRS Female 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Female |
| Output Audio Format | LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit |
| Embedded Audio Output | HDMI |
| Multiview Output | 4-Way Multiview viaHDMI |
| Monitor Output | 2 x HDMI |
Connectivity:
| Other I/O | 1 x RJ45 LAN |
| HDCP Support | Yes, Version 2.2 |
| Transport Protocols | RTMP |
| Simultaneous Streams | 4 Streams |
Hardware:
| OS Compatibility | macOS 10.15 macOS 11 or Later Windows 10 or Later (64-Bit Only) *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
| Mobile App Compatible | Yes: Android & iOS *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
| Wi-Fi | None |
| Bluetooth | Yes |
| Power I/O | 1 x USB-C (12 VDC at 3 A) Input |
| Power Consumption | 36 W |
