ROLAND VR-400UHD 4K DIRECT STREAMING AV MIXER
SKU
ROL-VR-400UHD
MFR#
VR-400UHD
$7,495.00
Availability:
Out of stock

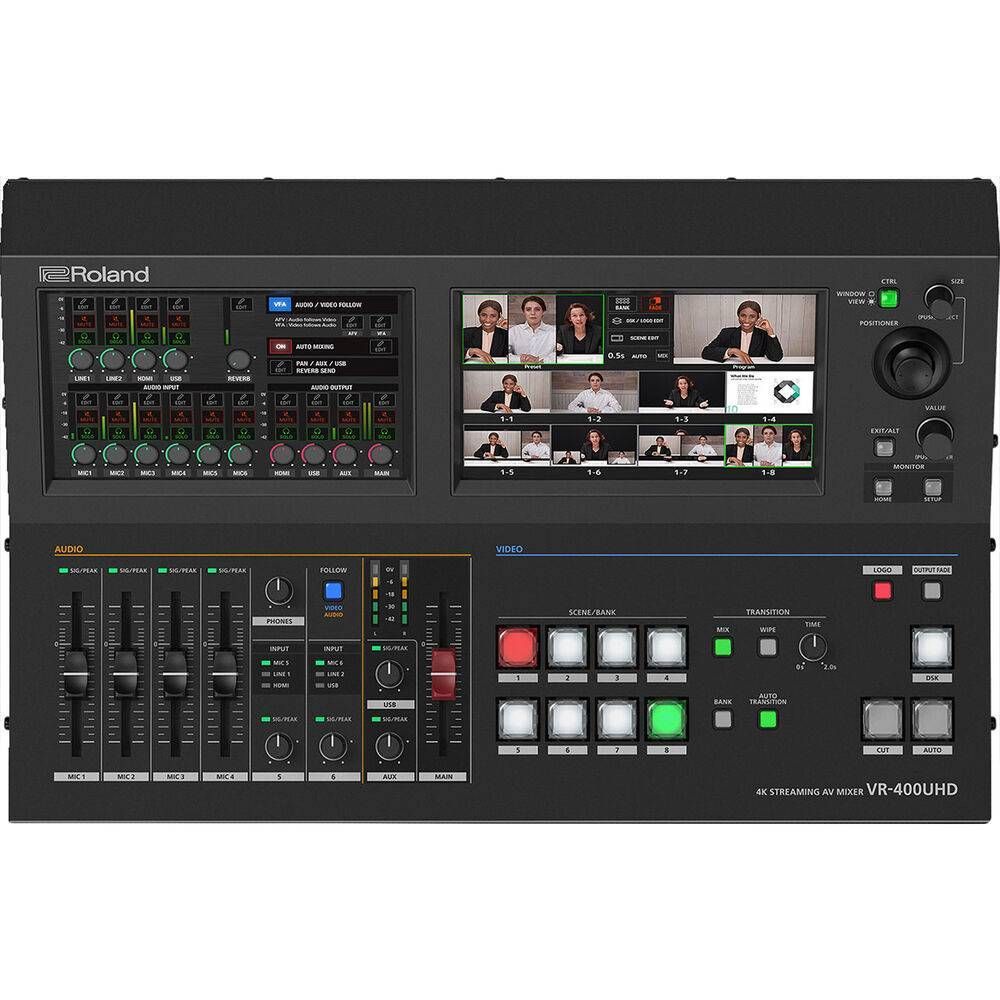

ROLAND 4K DIRECT STREAMING AV MIXER
Add a professional live event AV mixer to your production kit with this VR-400UHD 4K Streaming AV Mixer from Roland. Combining the advanced functions of a video switcher and an audio mixer, the rack-mountable VR-400UHD is great for live education events, houses of worship, council meetings, corporate events, concerts, and other live performance venues. The switcher offers the capability of live streaming via USB-C to popular online forums, such as Facebook and Twitch as well a working as a webcam.
Key Features
- Portable Hybrid 4K Live Streaming Mixer
- Dual Touchscreens
- 7 x HDMI Inputs, 3 x HDMI Outputs
- USB-C 4K Webcam/Streaming Output
- Up to UHD 4K60 Video Support, HDR/SDR
- 14-Channel Digital Audio Mixer
- Dual-Display Output, PGM/PST Modes
- 4 x Combo XLR-1/4", TRS Mic & RCA Inputs
Specs
| Available M/E Layers |
2 M/E
|
| Effect Types |
DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
|
| Downstream Keys |
2 x Chroma, Alpha, Luma, DVE
|
| Audio Mixing |
14-Channel Mixing
|
| Switching Type |
Pushbutton, Software, Touchscreen
|
| Processing Resolution |
UHD 4K at 30/60
|
| Color Processing |
10-Bit 4:2:2 YCbCr
|
| Audio Processing |
48 kHz / 24-Bit
|
| Number of Video Input Sources |
4
|
| Video Inputs |
7 x HDMI Female
|
| Input Video Format |
HDMI (10-Bit 4:2:2)
UHD 4K at 23.98/24/25/29.97/30/50/60 fps 1080p at 25/29.97/30/50/59.94/60 fps 1080i at 50/59.94 fps 720p at 50/59.94 fps |
| Audio Inputs |
4 x Combo XLR-1/4" TRS Stereo Analog Female
2 x 1/4" TRS Stereo Analog Female 2 x 2RCA Stereo Analog Female |
| Input Audio Format |
LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
|
| Embedded Audio Input |
HDMI: 2-Channel (per Input)
|
| Video Output Channels |
2
|
| Video Outputs |
2 x HDMI (2.0) Female
1 x HDMI (1.4) Female 1 x USB-C Female |
| Output Video Format |
HDMI
DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 29.97/30/50/59.94/60 fps 720p at 60 fps |
| Audio Outputs |
2 x XLR 3-Pin Stereo Analog Female
2 x RCA Stereo Analog Female 1 x 1/4" TRS Stereo Analog Female |
| Output Audio Format |
LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
Analog |
| Embedded Audio Output |
HDMI: 2-Channel (per Output)
USB-C: 2-Channel |
| Multiview Output |
Yes
|
| Other I/O |
2 x USB-A 3.0 / 3.1/3.2 Gen 1 Input
1 x DE-9/DB-9 Tally Input/Output 1 x DE-9/DB-9 RS-232 Input/Output 1 x RJ45 Control, LAN Input/Output |
| IP Video |
3840 x 2160 at 25p, 29.97p, 30p Encoding
960 x 540 to 2560 x 1440 at 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding |
| Simultaneous Streams |
1 Streams
|
| Recording Media |
2 x USB-A 3.0 / 3.1/3.2 Gen 1
|
| Display Size |
7"
|
| Screen Resolution |
800 x 480
|
| OS Compatibility |
macOS
Windows *As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
| Wi-Fi |
None
|
| Bluetooth |
None
|
| Power I/O |
1 x IEC C14 (115 to 240 VAC) Input
|
| Power Consumption |
Device: 115 W
|
