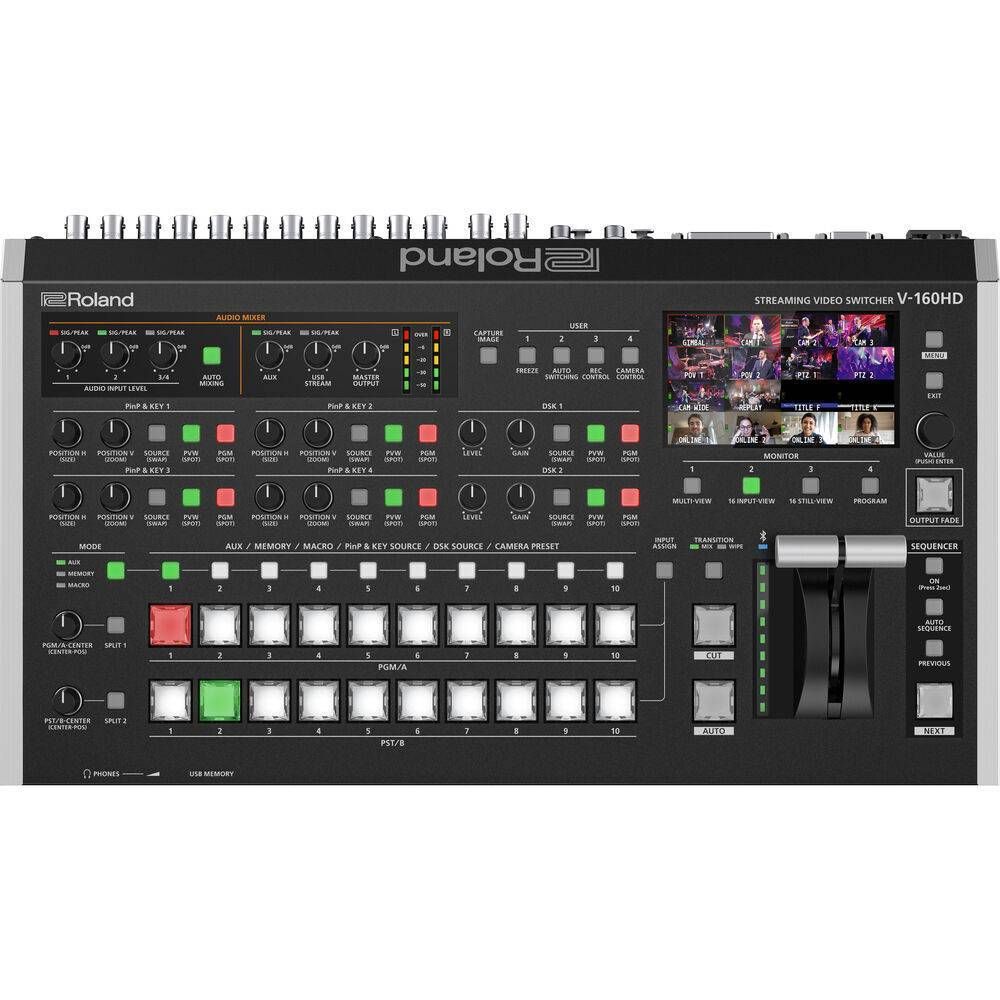

ROLAND V-160HD HD STREAMING VIDEO SWITCHER - 16 CHANNEL
SKU
ROL-V-160HD
MFR#
V-160HD
$5,349.00
Availability:
Out of stock
ROLAND HD STREAMING VIDEO SWITCHER - 16 CHANNEL
Simultaneously input, output, and live stream high-definition video broadcasts with this V-160HD SDI/HDMI Streaming Video Switcher from Roland. This multi-format hybrid video switcher allows you to input up to eight HDMI video sources and eight 3G-SDI video sources, switch them, add effects, and output them consistently to displays, projectors, recording units, and now via USB-C for live streaming applications.
Key Features
- 8 x HDMI and 8 x 3G-SDI Inputs
- Up to 1080p60 Resolution Support
- PTZ Control, USB-C for Video Stream
- SDI/HDMI/USB Outputs, 8-Layer Video FX
- Frame Rate Conversion, Real-Time Scalers
- Remote Control via Wired/Bluetooth
- 40-Ch Audio Mixer with FX/Processing
- Tally, Live Automation, Cue Management
- iPad/macOS/Windows Remote Control Apps
Specs
| Available M/E Layers |
8 M/E
|
| Effect Types |
8 x Graphic, Transition, Chroma Key, Alpha Key, Luma Key
|
| Graphics Memory |
16 Images (Total)
|
| Downstream Keys |
2 x Chroma, Luma
|
| Generators |
1 x Pattern
|
| Audio Mixing |
40-Channel Mixing
|
| Switching Type |
Pushbutton, T-Bar
|
| Processing Resolution |
1080p at 29.97/50/59.94
|
| Color Processing |
8-Bit 4:2:2 YCbCr
|
| Audio Processing |
48 kHz / 24-Bit
|
| Number of Video Input Sources |
16
|
| Video Inputs |
8 x HDMI Female
8 x BNC (3G-SDI) |
| Input Video Format |
HDMI / SDI
1080p at 23.98/24/29.97/30/50/59.94/60 fps 1080i 50/59.94 fps 720p 50/59.94 fps HDMI 1080p at 24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94 fps 720p 50/59.94 fps 576p 50 fps 576i / 625 lines 50 fps 480p 59.94 fps 480i / 525 lines 59.94 fps WUXGA (1920 x 1200) 60 fps UXGA (1600 x 1200) 60 fps SXGA+ (1400 x 1050) 60 fps FWXGA (1366 x 768) 60 fps SXVGA (1280 x 1024) 60 fps WXGA (1280 x 800) 60 fps XGA (1024 x 768) 60 fps SVGA (800 x 600) 60 fps |
| Audio Inputs |
1 x 2RCA Stereo Analog Female
2 x XLR 3-Pin Analog Male |
| Input Audio Format |
Analog: 48 kHz / 24-Bit
|
| Embedded Audio Input |
HDMI: 2-Channel (per Input)
|
| Video Output Channels |
7
|
| Video Outputs |
3 x HDMI Female (Loop Output)
3 x BNC (3G-SDI) Female (Preview) 1 x USB-C (USB Video) Female |
| Output Video Format |
HDMI / SDI (8-Bit 4:2:2 YCC)
1080p at 30/59.94/60 fps 1080i 30/59.94/60 fps 720p 50/59.94/60 fps USB-C 1080p at 25/29.97/50/59.94 fps 720p 25/29.97/50/59.94 fps 480p 25/29.97/50/59.94 fps |
| Audio Outputs |
1 x 2RCA Stereo Analog Female
2 x XLR 3-Pin Stereo Analog Male 1 x 1/4" TRS Stereo Analog Female |
| Output Audio Format |
Analog: 48 kHz / 24-Bit
|
| Embedded Audio Output |
HDMI: 8-Channel (per Output)
SDI: 8-Channel (per Output) USB-C: 2-Channel (per Output) |
| Multiview Output |
1-Way Multiview viaHDMI
|
| Other I/O |
1 x DE-9/DB-9 RS-232 Input
1 x RJ45 Control Input/Output 1 x DB-25 GPI, Tally Input/Output 1 x USB-A Service Input |
| Video Standard Compliance |
SMPTE 292M/424M/425M-A/425M-B
|
| HDCP Support |
Yes
|
| IP Video |
MJPEG:
1920 x 1080 at 30p, 60p Encoding |
| IP Audio |
PCM: Encoding
|
| Display Size |
4.3"
|
| Screen Resolution |
480 x 272
|
| OS Compatibility |
Windows
macOS iPadOS *As of June, 2021: Check with manufacturer for the most up-to-date compatibility |
| Wi-Fi |
None
|
| Bluetooth |
4.2
|
| Power I/O |
1 x Barrel (24 VDC) Input
|
| Power Consumption |
Device: 2.5 A55 W
|
