ROLAND V-8HD HD VIDEO SWITCHER - 8 CHANNEL
SKU
ROL-V-8HD
MFR#
V-8HD
$1,495.00
Availability:
Out of stock

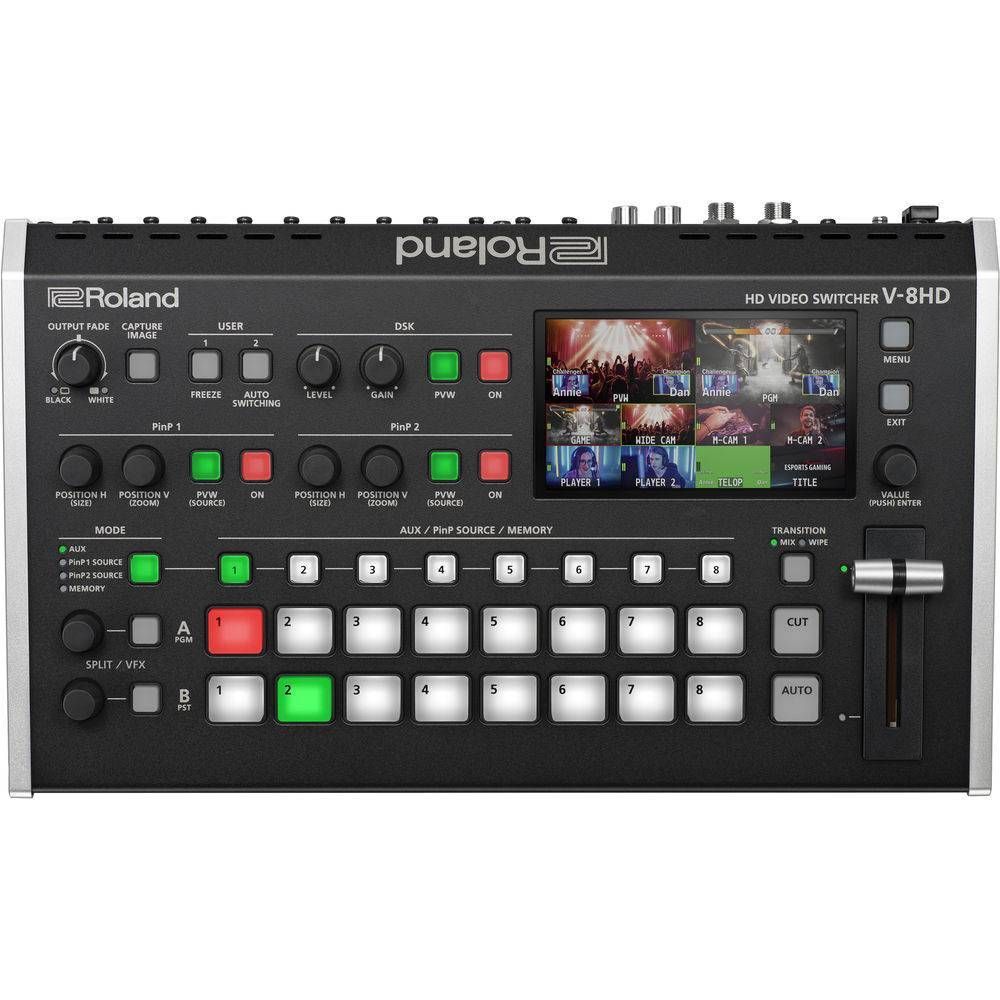

ROLAND HD VIDEO SWITCHER - 8 CHANNEL
Live events demanding video production require a flexible video switcher like the V-8HD Multi-Format HDMI Video Switcher from Roland. This multi-format video switcher can input up to eight HDMI video sources, switch them, add effects, and output them consistently to screens or projectors. Whether you're switching video for a live presentation or live streaming, the V-8HD has the features necessary for high-quality, live video switching.
Key Features
- 8 x HDMI Inputs, 3 x HDMI Outputs
- Up to 1080p60 Resolution Support
- Multi-Format, HDCP Support
- 8-Bit, 4:2:2 Video Processing
- Mix-Effects Bus, 4.3" TFT LCD Display
- 18-Channel Digital Audio Mixer with FX
- RCA Audio Input, Headphone Output
- Start/Stop Atomos Recorders
- iPad Remote Control App Support
Specs
| Available M/E Layers |
5 M/E
|
| Effect Types |
8 x Graphic, Transition, Chroma Key, Alpha Key, Luma Key
|
| Downstream Keys |
2 x Chroma, Luma
|
| Generators |
1 x Pattern
|
| Audio Mixing |
18-Channel Mixing
|
| Switching Type |
Pushbutton
|
| Processing Resolution |
1080p at 29.97/50/59.94
|
| Color Processing |
8-Bit 4:2:2 YCbCr
|
| Audio Processing |
48 kHz / 24-Bit
|
| Number of Video Input Sources |
8
|
| Video Inputs |
8 x HDMI Female
|
| Input Video Format |
HDMI (8-Bit 4:2:2 YCC)
1080p at 23.98/24/29.97/30/50/59.94/60 fps 1080i 50/59.94 fps 720p 50/59.94 fps 576p 50 fps 576i / 625 lines 50 fps 480p 59.94 fps 480i / 525 lines 59.94 fps WUXGA (1920 x 1200) 60 fps |
| Audio Inputs |
1 x 2RCA Stereo Analog Female
|
| Input Audio Format |
Analog: 48 kHz / 24-Bit
|
| Embedded Audio Input |
HDMI: 2-Channel (per Input)
|
| Video Output Channels |
3
|
| Video Outputs |
2 x HDMI Female (Loop Output)
1 x HDMI Female (Preview) |
| Output Video Format |
HDMI (8-Bit 4:2:2 YCC)
1080p at 50/59.94 fps 1080i 50/59.94 fps |
| Audio Outputs |
1 x 1/4" TRS Stereo Analog Female
|
| Output Audio Format |
Analog: 48 kHz / 24-Bit
|
| Embedded Audio Output |
HDMI: 2-Channel (per Output)
|
| Multiview Output |
1-Way Multiview viaHDMI
|
| Monitor Output |
1 x HDMI
|
| Other I/O |
1 x USB-A Firmware Input
1 x USB-B Control Input |
| HDCP Support |
Yes
|
| Display Size |
4.3"
|
| Screen Resolution |
480 x 272
|
| Wi-Fi |
None
|
| Bluetooth |
None
|
| Power I/O |
1 x Barrel (12 to 17 VDC) Input
|
| Power Consumption |
Device: 3.3 A39.6 W
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Dimensions |
12.48 x 7.6 x 2.76" / 317 x 193 x 70 mm
|
| Weight |
4.41 lb / 2 kg
|
