ROLAND VR-120HD DIRECT STREAMING AV MIXER
SKU
ROL-VR-120HD
MFR#
VR-120HD
$6,495.00
Availability:
Out of stock

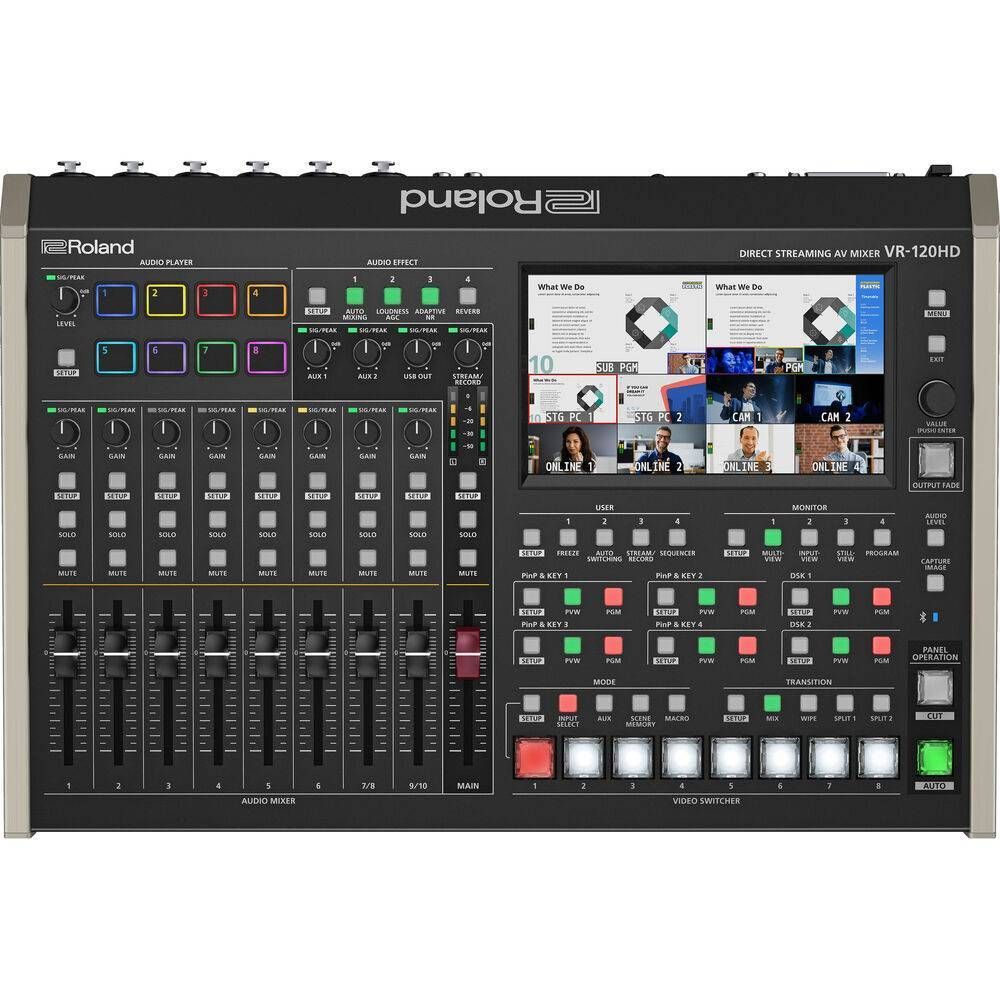

ROLAND VR-120HD DIRECT STREAMING AV MIXER
Add a professional hybrid event AV mixer to your production kit with this VR-120HD Direct Streaming AV Mixer from Roland. Combining the advanced functions of a video switcher and an audio mixer, the portable VR-120HD is ideal for live school events, houses of worship, council meetings, corporate events, concerts, and other live performance venues. The switcher offers the capability of live streaming up to two simultaneous streams to popular online forums, such as Facebook and Twitch.
Key Features
- Portable Hybrid Event AV Streaming Mixer
- Automation with Sequencing & Macros
- 2 x Live Streams at up to 1080p60
- 6 x 3G-SDI & 6 x HDMI Inputs
- Cinema & Broadcast Frame Rates Supported
- 8-Layer Video Effects Engine
- 42-Channel Digital Audio Mixer
- Records Streams to Optional SDXC Card
- PTZ Control for up to 12 Cameras
- 7" Touchscreen with Graphical Menu
Specs
| Available M/E Layers |
8 M/E
|
| Effect Types |
DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
|
| Graphics Memory |
None
|
| Downstream Keys |
2 x Chroma, Alpha, Luma, DVE
|
| Audio Mixing |
42-Channel Mixing
|
| Switching Type |
Pushbutton
|
| Processing Resolution |
1080p at 60
|
| Color Processing |
8-Bit 4:2:2
|
| Audio Processing |
48 kHz / 24-Bit
|
| Number of Video Input Sources |
12
|
| Video Inputs |
6 x HDMI Female
6 x BNC (3G-SDI) Female |
| Input Video Format |
HDMI (8-Bit 4:2:2)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94 fps 720p at 50/59.94 fps 576p at 50 fps 576i / 625 lines at 50 fps 480p at 59.94 fps 480i / 525 lines at 59.94 fps VGA (640 x 480) at 60 fps SVGA (800 x 600) at 60 fps XGA (1024 x 768) at 60 fps WXGA (1280 x 800) at 60 fps SXVGA (1280 x 1024) at 60 fps FWXGA (1366 x 768) at 60 fps SXGA+ (1400 x 1050) at 60 fps UXGA (1600 x 1200) at 60 fps WUXGA (1920 x 1200) at 60 fps SDI (8-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps USB-C (8-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 720p at 24/25/29.97/30/50/59.94/60 fps 480p at 23.98/24/25/29.97/30/50/59.94/60 fps |
| Audio Inputs |
6 x Combo XLR-1/4" TRS Analog Female
2 x 2RCA Analog Female |
| Input Audio Format |
Analog: 48 kHz / 24-Bit
LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit |
| Embedded Audio Input |
HDMI: 2-Channel (per Input)
SDI: 2-Channel (per Input) USB-C: 2-Channel |
| Video Outputs |
3 x HDMI Female
3 x BNC (3G-SDI) Female |
| Output Video Format |
HDMI / SDI
1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/60 fps 720p 50/59.94/60 fps |
| Audio Outputs |
4 x XLR 3-Pin Mono Analog Male
1 x 2RCA Stereo Analog Female 1 x 1/4" TRS Stereo Analog Female 1 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Output Audio Format |
Analog: 48 kHz / 24-Bit
LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit |
| Embedded Audio Output |
HDMI: 8-Channel (per Output)
SDI: 8-Channel (per Output) USB-C: 2-Channel |
| Inputs/Outputs |
1 x USB-C(Stereo) Female
|
| Other I/O |
1 x USB-A 2.0 Input
1 x DB-25 Tally 1 x DE-9/DB-9 RS-232 1 x RJ45 Control, LAN 2 x BNC Blackburst, Reference 2 x 1/4" TRS Control |
| Video Standard Compliance |
SMPTE 292M/424M/424M-A/424M-B
|
| HDCP Support |
Yes
|
| IP Video |
H.264/MJPEG:
1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p (20,000 Kb/s) Encoding |
| IP Audio |
AAC-LC: 384 Kb/s Encoding
|
| Simultaneous Streams |
2 Streams
|
| Recording Media |
1 x SDXC, SDHC, USB-A 2.0
|
| Recording Modes |
1920 x 1080p up to 60 fps (MP4 via H.264/AVC)
|
| Display Size |
7"
|
| Screen Resolution |
800 x 480
|
| OS Compatibility |
macOS
Windows *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Wi-Fi |
None
|
| Bluetooth |
4.2
|
| Power I/O |
1 x Barrel (24 VDC at 3 A) Input
|
| Power Consumption |
69 W
|
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
| Certifications |
FCC
|
| Dimensions |
17.2 x 12 x 4.3" / 437 x 304 x 109 mm
|
| Weight |
11.7 lb / 5.3 kg
|
