SENNHEISER ADP-UHF | 508863 | PRO PASSIVE, DIRECTIONAL EXTERNAL PADDLE ANTENNA, UHF RANGE (470 - 1075 MHZ) 0526
SKU
SEN-ADP-UHF
MFR#
508863
was
$479.00
Special Price
$399.00
Availability:
Out of stock

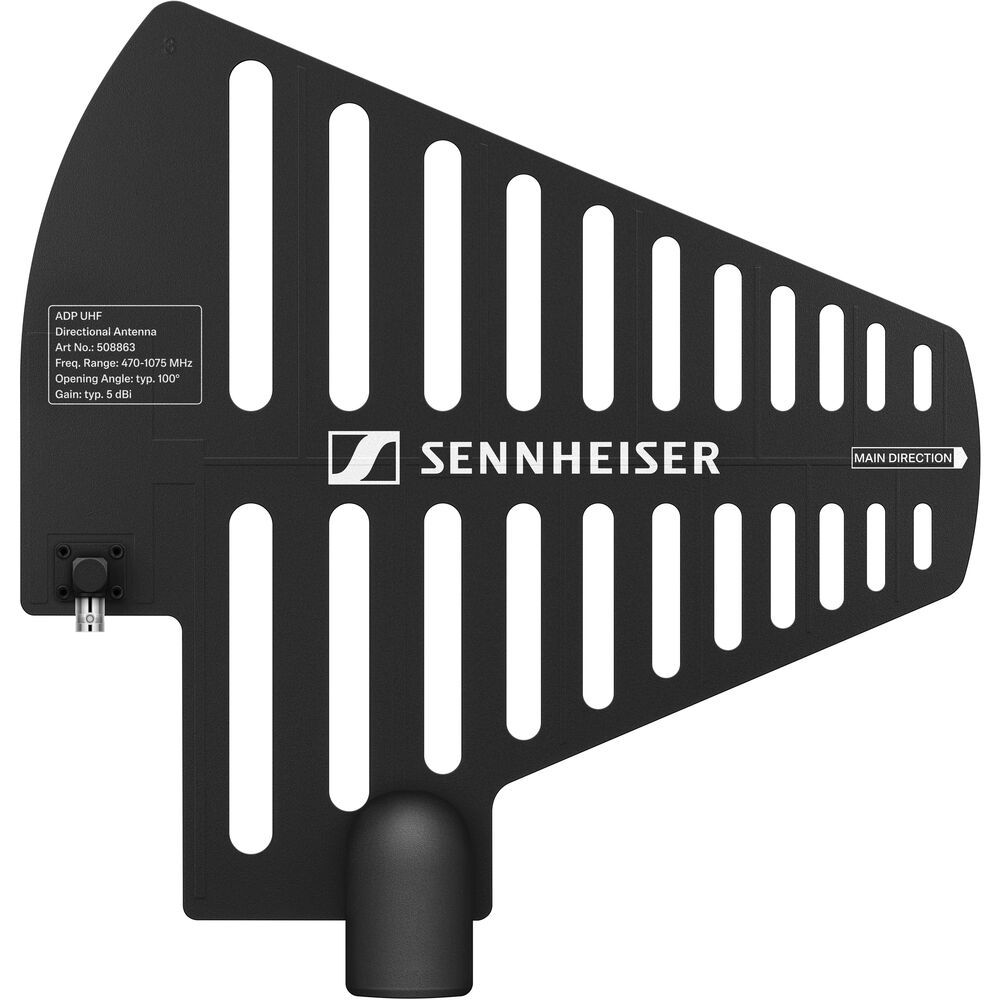

SENNHEISER ADP UHF PASSIVE, DIRECTIONAL EXTERNAL PADDLE ANTENNA, UHF RANGE (470 - 1075 MHZ)
The Sennheiser ADP UHF Passive Directional Antenna is an essential component for maximizing the wireless performance of your EW-D series wireless microphone system. Positioning the antenna close to your transmitters on stage and orienting it in their direction enables you to achieve maximum coverage for professional-quality RF signal reliability with low risk of interference and virtually no dropouts.
The ADP UHF is equipped with 3/8"-16 and 5/8"-27 threads for easy mounting on a mic stand. It features a 50-ohm BNC connector for connection to either an EW-D receiver, EW-D AB antenna booster, or the EW-D ASA antenna splitter via a coaxial cable (all available separately).
Key Features
- For EW-D Wireless Systems
- Enhances Wireless Reception
- 5 dBi Gain, 100° Opening Angle
- Mounts to Microphone Stand
- For Indoor and Outdoor Use
Sennheiser ADP UHFSpecs
| Frequency Range |
470 to 1075 MHz
|
| Apex Angle |
Approx. 100° (-3 dB)
|
| Front-to-Back Ratio |
> 14 dB
|
| Gain |
5 dBi (Typical)
|
| Impedance |
50 Ohms
|
| Connection |
BNC Female, No DC Path
|
| Threads |
3/8"-16 and and 5/8"-27
|
| Relative Humidity |
5 to 95%
|
| Temperature |
Operating Temperature Range: 14 to 131°F / -10 to 55°C
Storage Temperature Range: -4 to 185°F / -20 to 85°C |
| Dimensions |
12.5 x 12.2" / 319 x 310 mm
|
| Weight |
11.2 oz / 320 g
|
