SENNHEISER EW-D-SKM-S-BASE(R1-6) DIGITAL WIRELESS HANDHELD BASE SET. INCLUDES (1) EW-D EM DIGITAL 0526
SKU
SEN-EW-D-SKM-S-BASE(R1-6)
MFR#
508761
was
$779.00
Special Price
$649.00
Availability:
Out of stock
SENNHEISER EW-D-SKM-S-BASE(R1-6) DIGITAL WIRELESS HANDHELD BASE SET. INCLUDES (1) EW-D EM DIGITAL 19

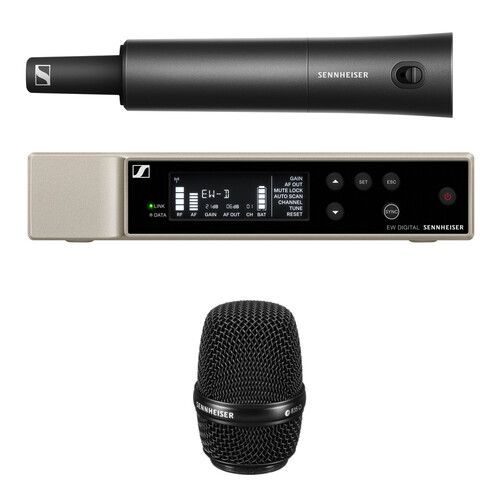

The Sennheiser EW-D 835-S Digital Wireless Handheld Microphone System Kit with MMD 835 Capsule adds an MMD 835 cardioid dynamic microphone capsule for the wireless handheld transmitter to create a complete wireless audio system with a single-channel rackmount receiver for presenters and performers.
The Sennheiser EW-D SKM-S BASE SET with Handheld Transmitter and No Mic Capsule combines pristine 24-bit digital audio with an impressive 134 dB dynamic range, equidistant tuning grid, and automated Bluetooth set up App for your phone to create a professional rackmount wireless microphone system that anyone can use. Though easy to set up and simple to operate, the system's pro-level feature set is well equipped to handle the needs of both first-time and experienced users alike, including presenters and lecturers working in business and educational settings, clergy in houses of worship, and live performers in theaters or on musical stages.
Key Features
- For Presenters and Performers
- Pro Features with Fast & Easy Setup
- MMD 835 Dynamic Cardioid Mic Capsule
- Handheld Transmitter with Mute Switch
- Intelligent Diversity Rackmount Receiver
- 134 dB of Dynamic Range, 24-Bit Audio
- 2240 Frequencies on Equidistant Grid
- Setup/Operate from Phone via Bluetooth
- 8-Hour AA /12-Hour Rechargeable Battery
- Expandable to 90 Mic Channels/330' Range
Microphone System, No Mic Capsule (R1-6: 520 to 576 MHz)
| Wireless Technology |
Digital UHF
|
| Number of RF Channel Frequencies |
2240
|
| Included Transmitters |
1x Handheld
|
| Diversity |
Intelligent Switching Diversity
|
| RF Frequency Band |
520 to 576 MHz
|
| RF Bandwidth |
56 MHz
|
| Frequency Step Size |
25 kHz
|
| RF Channel Scanning |
Auto-Scan
|
| Max Operating Range |
328.1' / 100 m (Line of Sight)
|
| Max Transmitters per Band |
90
|
| Built-In Recorder |
No
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: smart assist Functionality: Remote Control |
| Bluetooth |
5.1
|
| Bluetooth Operating Distance |
120' / 36.6 m (Transmitter Sync, App Control)
|
| Latency |
1.9 ms
|
| Dynamic Range |
134 dB
|
| Encryption |
No
|
Receiver
| Receiver Type |
Tabletop / Rackmount
|
| Mounting Options |
Rackmount (with Included Hardware)
|
| Rackmount Size |
1 RU (1/2 Rack)
|
| Antenna |
2x 1/4 Wave Rod, BNC (Rear-Mount)
|
| Number of Audio Channels |
1
|
| Audio I/O |
1x XLR 3-Pin Male Balanced Output (Locking)
1x 1/4" TRS Female Unbalanced Output |
| Gain Range |
-3 to +42 dB (3 dB Steps)
|
| Audio Output Level |
XLR Output:
+18 dBu (Balanced) 1/4" Output: +12 dB (Unbalanced) |
| Frequency Response |
20 Hz to 20 kHz
|
| Network I/O |
No
|
| Word Clock I/O |
No
|
| Standalone Audio Interface Capable |
No
|
| RF Output Power |
10 mW (EIRP)
|
| Power Requirements |
AC/DC Power Adapter
|
| AC/DC Power Adapter |
11 to 13 VDC at 300 mA (Included)
|
| DC Input Power |
11 to 13 VDC at 300mA
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Display & Indicators |
1x OLED (AF Level, Frequency, Mute, RF Level, Transmitter Battery Status)
|
| Housing |
Metal
|
| Operating Temperature |
14 to 131°F / -10 to 55°C
|
| Dimensions |
7.4 x 1.7 x 8.3" / 189 x 44 x 212 mm
|
| Weight |
2.2 lb / 1 kg
|
Transmitter
| Transmitter Type |
Handheld
|
| RF Output Power |
10 mW (ERP)
Up to 10 mW (EIRP) |
| Audio I/O |
No
|
| Included Cable Connector |
No
|
| Muting |
Mute Switch
|
| Audio Input Level |
2 to 4.35 V RMS
|
| Auto-Level Control |
No
|
| Sync Method |
Bluetooth
|
| Antenna |
1x Internal (Handheld)
|
| Power Requirements |
Battery
|
| Battery Type |
2x AA (Included)
1x Sennheiser Battery Pack (Not Included, Replaceable) |
| Approx. Battery Life |
8 Hours (Alkaline)
12 Hours (Sennheiser Battery Pack) |
| Display & Indicators |
1x LED (Mute)
1x LED (Sync) |
| Housing |
Metal
|
| Dimensions |
2 x 10.6" / 50 x 268 mm
|
| Weight |
10.7 oz / 304 g (without Batteries)
|
