SENNHEISER EW-DP ENG SET (Q1-6) 700040 A4V PORTABLE DIGITAL WIRELESS SET. INCLUDES (1) EW-DP EK DIGITAL PORTABLE SINGLE CHANNEL RECEIVER, (1) EW-D SK DIGITAL BODYPACK TRANSMITTER, (1) ME 2 OMNIDIRECTI
SKU
SEN-EW-DP-ENG-SET-Q1-6
MFR#
700040
was
$1,179.00
Special Price
$999.00
Availability:
Out of stock
SENNHEISER EW-DP ENG SET (Q1-6) 700040 A4V PORTABLE DIGITAL WIRELESS SET. INCLUDES (1) EW-DP EK DIGITAL PORTABLE SINGLE CHANNEL RECEIVER, (1) EW-D SK DIGITAL BODYPACK TRANSMITTER, (1) ME 2 OMNIDIRECTI

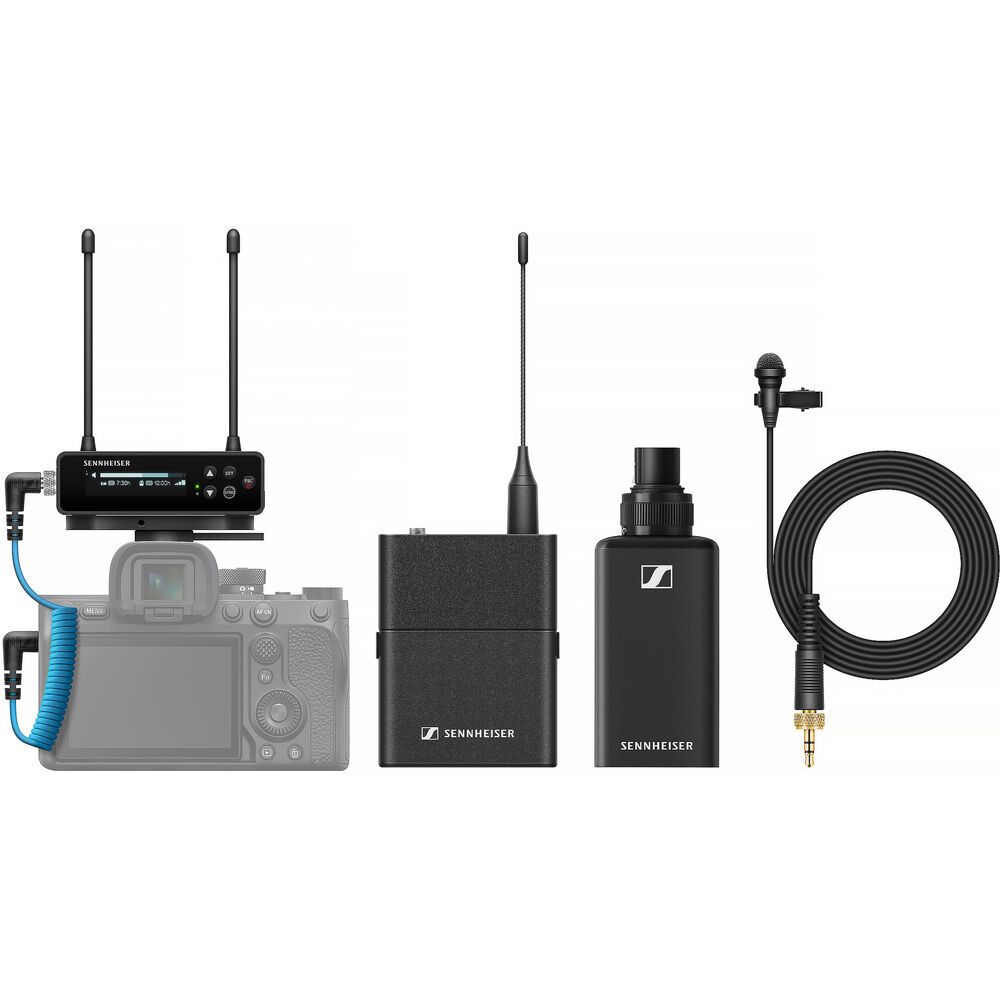

Purpose-built for content creators, videographers, and newsgatherers looking for a stress-free wireless experience, the Sennheiser EW-DP ENG SET Combo is a camera-mount, fully digital wireless microphone system that utilizes professional UHF transmission to reliably deliver Sennheiser's pristine, broadcast-quality audio directly to your camera. This configuration includes an EW-DP EK camera-mount, single-channel receiver with mounting kit, a lightweight EW-D SK bodypack transmitter with unobtrusive ME 2 omnidirectional lavalier mic, and an EW-DP SKP plug-on transmitter with built-in recorder and +48V phantom power. Also included are 3.5mm and XLR output cables to connect the receiver to a DSLR/mirrorless camera or to a recorder or mixer.
Key Features
- Creators, Videographers, Newsgatherers
- ME 2 Omni Lav Mic/Bodypack Transmitter
- Plug-On Transmitter/Recorder, +48V
- True-Diversity Camera-Mount Receiver
- Pro Features with Fast & Easy Setup
- 134 dB of Dynamic Range, 24-Bit Audio
- 56 MHz Bandwidth, Equidistant Grid
- Setup/Operate from Phone via Bluetooth
- Battery: 12-Hr Transmitter/7-Hr Receiver
- Expandable to 58 Mic Channels/330' Range
Sennheiser EW-DP ENGSpecs
| Wireless Technology |
Digital UHF
|
| Number of RF Channel Frequencies |
2240
|
| Included Transmitters |
1x Bodypack
1x Plug-On |
| Diversity |
Intelligent Switching Diversity
|
| RF Frequency Band |
470 to 526 MHz
|
| RF Bandwidth |
56 MHz
|
| Frequency Step Size |
25 kHz
|
| RF Channel Scanning |
Auto-Scan
|
| Max Operating Range |
328.1' / 100 m (Line of Sight)
|
| Max Transmitters per Band |
58
|
| Built-In Recorder |
Yes
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Sennheiser Smart Assist Functionality: Adjust Settings, Remote Control, Setup |
| Bluetooth |
5.1 LE
|
| Bluetooth Operating Distance |
120' / 36.6 m (Transmitter Sync, App Control)
|
| Sample Rate/Resolution |
24-Bit
|
| Latency |
1.9 ms
|
| Dynamic Range |
134 dB
|
| Encryption |
No
|
Receiver
| Receiver Type |
Camera-Mount
|
| Mounting Options |
Belt Clip, Shoe-Mount, 1/4"-20 Female (with Included Hardware)
|
| Antenna |
2x 1/4 Wave Rod, Fixed
|
| Number of Audio Channels |
1
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Female Unbalanced Output (Locking)
1x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Locking) |
| Audio Output Level |
1/8" / 3.5 mm Output:
2 dBV (Max, Unbalanced) |
| Frequency Response |
20 Hz to 20 kHz ±3 dB
|
| Network I/O |
No
|
| Word Clock I/O |
No
|
| USB/Lightning Connectivity |
1x USB-C Female (Bus Power, Charging)
|
| USB Class-Compliant |
No
|
| Standalone Audio Interface Capable |
No
|
| RF Output Power |
10 mW (EIRP)
|
| Power Requirements |
Battery, Bus Power (USB)
|
| Battery Type |
2x AA (Included)
1x Sennheiser Battery Pack (Included) |
| Approx. Battery Life |
7 Hours
|
| Display & Indicators |
1x Backlit OLED (AF Level, Frequency, Mute, RF Level, Transmitter Battery Status)
|
| Operating Temperature |
14 to 131°F / -10 to 55°C
|
| Operating Humidity |
5 to 95%
|
| Dimensions |
3.4 x 2.6 x 1.1" / 86 x 67 x 28 mm
|
| Weight |
0.3 lb / 140 g
|
Transmitter
| Transmitter Type |
Bodypack
|
| RF Output Power |
10 mW (ERP)
Up to 10 mW (EIRP) |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Female Input (Locking)
|
| Included Cable Connector |
No
|
| Muting |
Mute Switch
|
| Audio Input Level |
2 to 4.35 V RMS
|
| Auto-Level Control |
No
|
| Frequency Response |
20 Hz to 20 kHz
|
| Sync Method |
Bluetooth
|
| Antenna |
1x Flexible Whip, Fixed (Beltpack)
|
| Power Requirements |
Battery
|
| Battery Type |
2x AA (Included)
1x Sennheiser Battery Pack (Included, Replaceable) |
| Approx. Battery Life |
8 Hours (Alkaline)
12 Hours (Sennheiser Battery Pack) |
| Display & Indicators |
1x LED (Mute)
1x LED (Sync) |
| Housing |
Metal
|
| Dimensions |
2.5 x 3.1 x 0.8" / 63 x 80 x 20 mm (without Antennas)
|
| Weight |
4.2 oz / 120 g (without Batteries)
|
Microphone
| Microphone Type |
Lavalier
|
| Color |
Black
|
| Sound Field |
Mono
|
| Capsule |
Electret Condenser
|
| Polar Pattern |
Omnidirectional
|
| Frequency Range |
50 Hz to 18 kHz
|
| Equivalent Noise Level |
32 dB
|
| Maximum SPL |
130 dB SPL
|
| Sensitivity |
17 mV/Pa at 1 kHz
|
| Output Connector |
1x 1/8" / 3.5 mm TRS Male (Locking)
|
| Cable Length |
5.2' / 1.6 m
|
| Operating Voltage |
7.5 V
|
Transmitter 2
| Transmitter Type |
Plug-On
|
| RF Output Power |
10 mW (ERP)
Up to 10 mW (EIRP) |
| Audio I/O |
1x XLR 3-Pin Female Input (Locking)
1x 1/8" / 3.5 mm TRS Female Input |
| Phantom Power |
+48 V
|
| Auto-Level Control |
No
|
| Sync Method |
Bluetooth
|
| Antenna |
1x Internal
|
