SHURE BLX288/PG58DUAL VOCAL SYSTEM WITH (1) BLX88 DUAL WIRELESS RECEIVER AND (2) BLX2 HANDHELD TRANSMITTERS WITH PG58 MICROPHONE FREQ H10-H11-H9-J11
SKU
SHU-BLX288/PG58
MFR#
BLX288/PG58
was
$763.00
Special Price
$599.00
Availability:
Out of stock

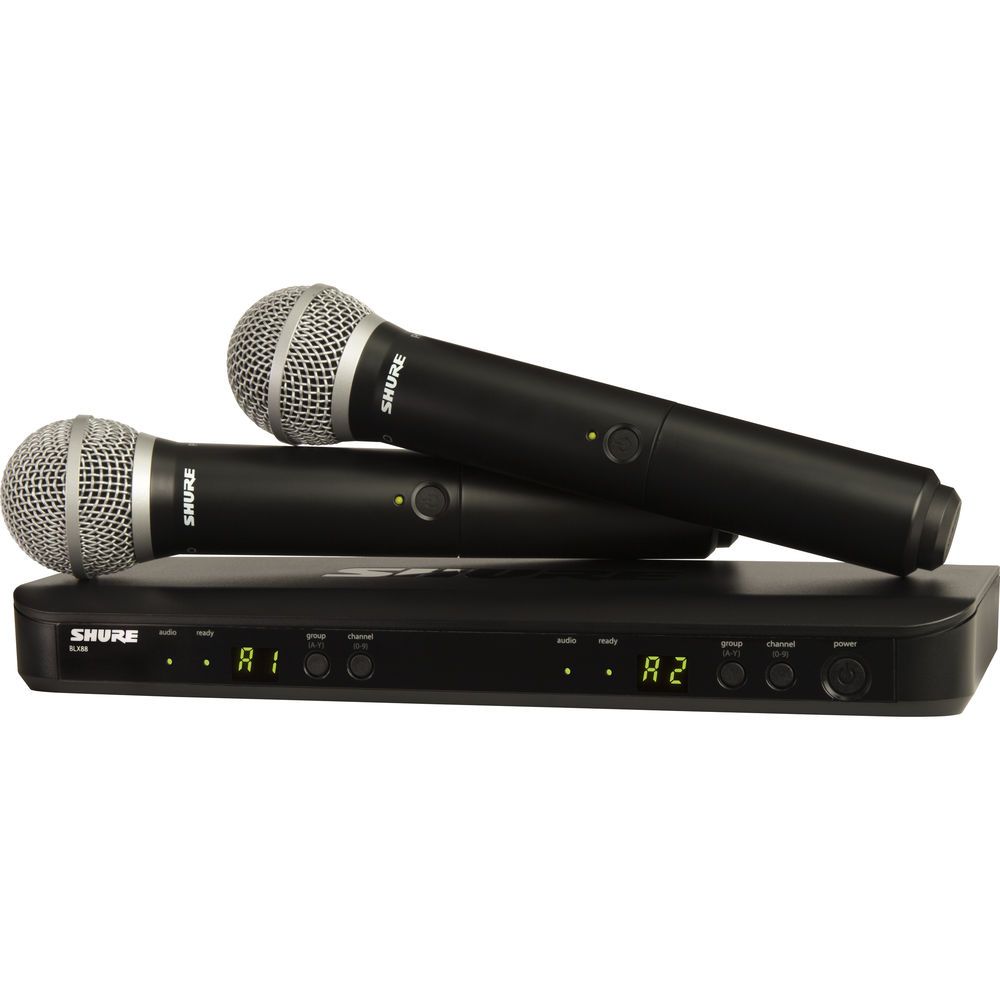

SHURE BLX288/PG58DUAL VOCAL SYSTEM WITH (1) BLX88 DUAL WIRELESS RECEIVER AND (2) BLX2 HANDHELD TRANSMITTERS WITH PG58 MICROPHONE FREQ H10-H11-H9-J11
The Shure BLX288/PG58 is a cost-effective wireless handheld microphone system for two presenters, teachers, or lecturers which offers quality sound, simple setup, and dependable performance right out of the box. It includes the compact and lightweight BLX88 dual-channel tabletop receiver with internal antennas, ideal for portable use.
The BLX288/PG58 also includes two handheld transmitters equipped with an integrated PG58 dynamic cardioid microphone capsule. The receiver features one-touch QuickScan frequency selection to quickly search 123 available frequencies and locate a clean RF channel in case of interference. The system provides up to 14 hours of continuous use with four AA batteries, at a range up to 300'. Up to 12 mic channels can operate simultaneously in each frequency band. This streamlined system is well suited for live performances and events in small venues, wedding halls, and houses of worship, as well as conference, educational, and corporate facilities.
Features:
- For Two Presenters or Performers
- 2 x PG58 Cardioid Mic/Transmitters
- Dual-Channel Tabletop Receiver
- 123 Auto-Scan Frequencies
- Internal Antenna Diversity
- 14-Hr AA Batteries
- Expandable to 12 Mic Channels/300' Range
Spec
| Wireless Technology |
Analog UHF
|
| Number of RF Channel Frequencies |
123
|
| Included Transmitters |
2x Handheld
|
| Diversity |
Antenna Diversity
|
| RF Frequency Band |
542 to 572 MHz
|
| RF Bandwidth |
24 MHz
|
| RF Channel Scanning |
Auto-Scan
|
| Max Operating Range |
300' / 91.4 m (Line of Sight)
|
| Max Transmitters per Band |
12
|
| Built-In Recorder |
No
|
| Timecode Support |
No
|
| Mobile App Compatible |
No
|
| Dynamic Range |
100 dBA
|
| Encryption |
No
|
Receiver
| Receiver Type |
Tabletop
|
| Mounting Options |
Tabletop (with Included Hardware)
|
| Antenna |
2x Internal
|
| Number of Audio Channels |
2
|
| Built-In Microphone |
No
|
| Audio I/O |
2x XLR 3-Pin Male Balanced Output
2x 1/4" TS Female Unbalanced Output |
| Audio Output Level |
XLR Outputs:
-27 dBV (Mic Level) 1/4" Outputs: -13 dBV (Instrument Level) |
| Frequency Response |
50 Hz to 15 kHz (Dependent on Mic)
|
| Network I/O |
No
|
| USB/Lightning Connectivity |
No
|
| USB Class-Compliant |
No USB Connectivity
|
| Impedance |
XLR Outputs:
200 Ohms 1/4" Outputs: 50 Ohms |
| Power Requirements |
AC/DC Power Adapter
|
| AC/DC Power Adapter |
12 to 15 VDC at 160 mA, Center-Positive (Included)
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Display & Indicators |
2x Multi-Segment LED (Channel, Group)
4x LED (AF Level, Sync) |
| Housing |
ABS
|
| Dimensions |
15.3 x 1.6 x 4.6" / 388 x 40 x 116 mm
|
| Weight |
15.1 oz / 429 g
|
Transmitter
| Transmitter Type |
Handheld
|
| RF Output Power |
10 mW
|
| Built-In Microphone |
No
|
| Audio I/O |
No
|
| Pad |
No
|
| Muting |
Off/On Switch
|
| Auto-Level Control |
No
|
| Gain Range |
-20 to -10 dB
|
| Sync Method |
Manual
|
| Antenna |
1x Internal (Handheld)
|
| Power Requirements |
Battery
|
| Battery Type |
2x AA (Included)
|
| Approx. Battery Life |
14 Hours (Alkaline)
|
| USB/Lightning I/O |
No
|
| Display & Indicators |
1x Multi-Segment LED (Channel, Group)
1x LED (Battery Status, Power) |
| Housing |
ABS
|
| Dimensions |
2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
|
| Weight |
7.7 oz / 218 g (without Batteries)
|
Microphone
| Microphone Type |
Handheld Capsule
|
| Sound Field |
Mono
|
| Capsule |
Dynamic
|
| Polar Pattern |
Cardioid
|
| Frequency Range |
50 Hz to 16 kHz
|
| Sensitivity |
-55 dBV/Pa at 1 kHz
|
