SHURE SLXD3 PULG-ON DIGITAL WIRELESS TRANSMITTER WITH XLR CONNECTOR W/O MIC
SKU
SHU-SLXD3
MFR#
SLXD3
was
$436.00
Special Price
$349.00
Availability:
Out of stock

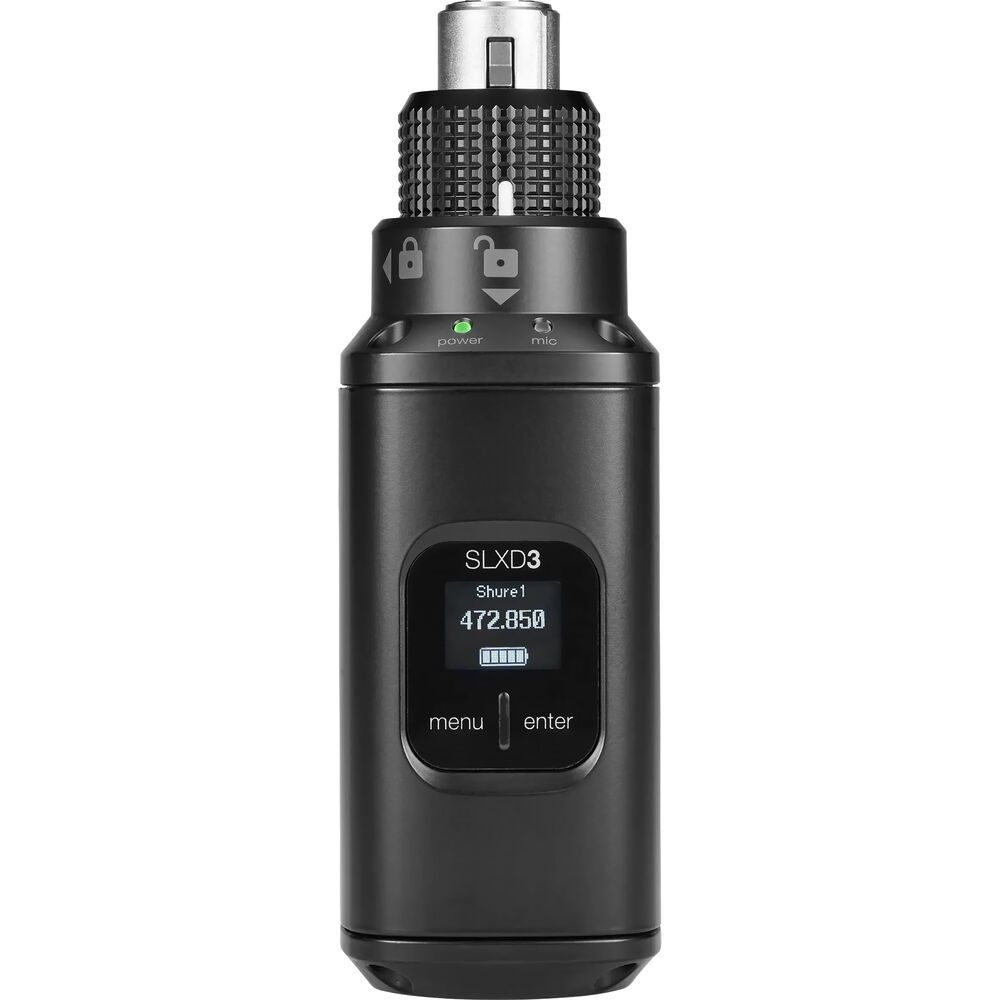

SHURE SLXD3 PULG-ON DIGITAL WIRELESS TRANSMITTER WITH XLR CONNECTOR W/O MIC
The Shure SLXD3 is a reliable digital wireless plug-on XLR transmitter compatible with the SLXD4, SLXD4D, and SLXD5 receivers. Compact and lightweight, with a robust, all-metal construction and available phantom power, the unit is well suited for tough on-set operating conditions. Attach the handheld dynamic or condenser microphone of your choice for man-on-the-street interviews or connect your favorite shotgun mic for wireless booming (both types of mics are available separately).
Features:
- Use with SLXD4, SLXD4D, SLXD5 Receiver
- For XLR Handheld and Shotgun Mics
- Provides +12 or +48 VDC Phantom Power
- Twist-Lock XLR Microphone Connector
- 118 dB Dynamic Range, 24-Bit Audio
- 44 MHz Bandwidth, 1760 Frequencies
- Switchable 1/10/30 mW RF Output Levels
- Rugged Metal Construction
- 8-Hours on Two AAs or SB903 Battery
Specs:
| RF Frequency Band |
470 to 514 MHz
|
| RF Bandwidth |
44 MHz
|
| Frequency Step Size |
25 kHz
|
| RF Channel Scanning |
Auto-Scan
|
| Max Operating Range |
328' / 100 m
|
| Built-In Recorder |
No
|
| Timecode Support |
Yes
|
| Mobile App Compatible |
No
|
| Sample Rate/Resolution |
24-Bit
|
| Latency |
3.2 ms
|
| Encryption |
No
|
| THD |
<0.02 %
|
Transmitter
| Transmitter Type |
Plug-On
|
| RF Output Power |
1 / 10 / 30 mW
|
| Audio I/O |
1x XLR 3-Pin Male Balanced Input (Locking)
|
| Included Cable Connector |
No
|
| Phantom Power |
+12 V
+48 V |
| Pad |
12 dB
|
| Muting |
Off/On Switch
|
| Audio Input Level |
+20.5 to -3.5 dBV
|
| Auto-Level Control |
No
|
| Gain Range |
0 +21 dB
|
| Signal Processing |
No
|
| Frequency Response |
20 Hz to 20 kHz (Dependent on Mic)
|
| Sync Method |
IR
|
| Antenna |
Internal
|
| Power Requirements |
Battery
|
| Battery Type |
2x AA (Included)
1x Shure SB903 (Not Included) |
| Battery Charging Time |
1.25 to 5.5 Hours
|
| Approx. Battery Life |
8 Hours (Lithium Shure SB903)
|
| USB/Lightning I/O |
No
|
| Display & Indicators |
OLED (Battery Status, Channel, Group)
|
| Housing |
Metal
|
| Operating Temperature |
0 to 122°F / -17 to 50°C
|
| Storage Temperature |
-20 to 165°F / -28 to 73°C
|
| Dimensions |
1.6 x 5 x 1.6" / 41 x 126 x 41 mm
|
| Weight |
7.1 oz / 200 g
|
