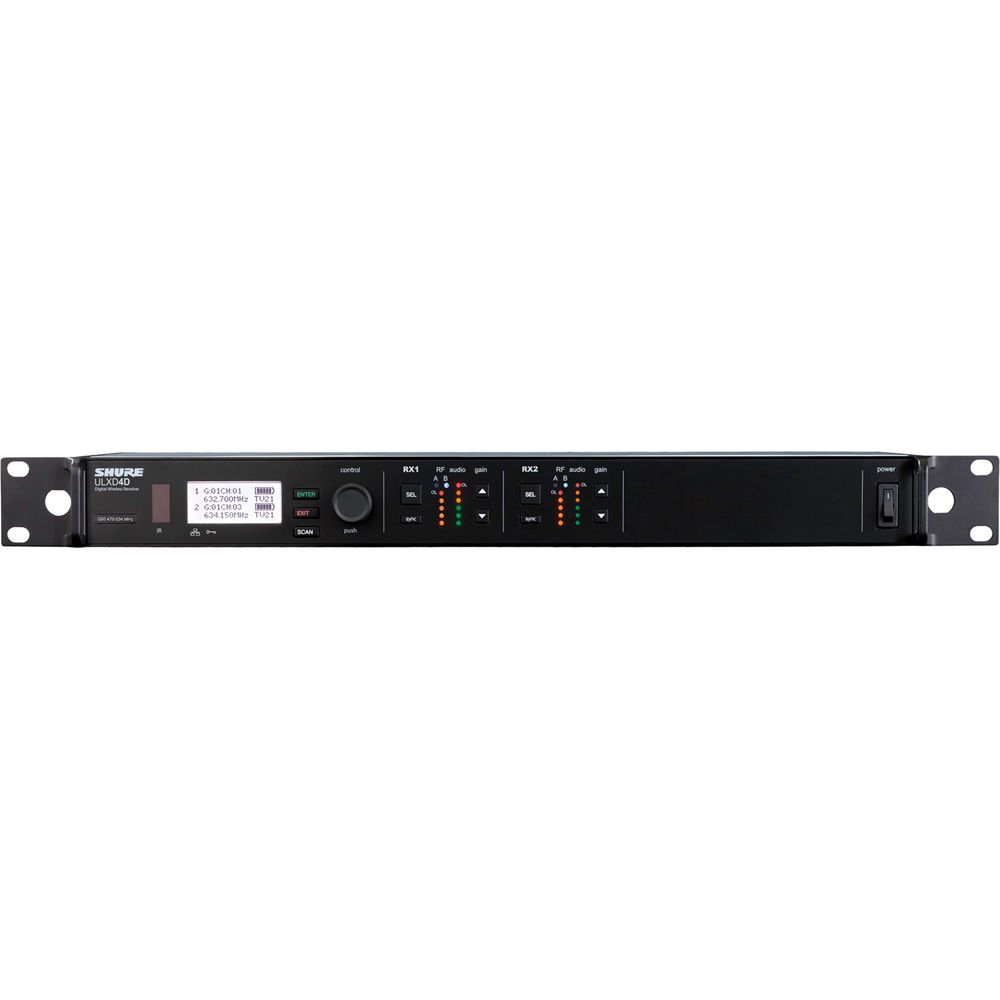

Part of the ULX-D wireless series, the Shure ULXD4D houses 2 independent digital receivers in a rugged, single-rack unit with an internal power supply. Two Ethernet ports support Dante digital audio, while RF cascade ports allow for antenna signal distribution to another receiver unit. Audio summing enables the receiver to function as a 2-channel mixer.
The ULX-D Series simplifies the set up and management of large numbers of wireless systems. It is ideal for professional sound reinforcement applications in large live venues and houses of worship as well as A/V installations in conference, educational, and corporate facilities. Compatible with a wide selection of Shure transmitters and mic capsules, it delivers pristine 24-bit/48 kHz digital audio, capturing every detail with clarity, accurate low end, and crisp transient response.
Features:
Specifications:
| Wireless Technology |
Digital UHF
|
| Diversity |
Yes
|
| RF Frequency Band |
G50: 470 to 534 MHz
|
| Number of RF Channel Frequencies |
2560
|
| Max Operating Range |
328.1' / 100 m
|
| Max Transmitters per Band |
60
|
| Latency |
< 2.9 ms
|
| Encryption |
AES 256
|
| Built-In Recorder |
No
|
| Timecode Support |
No
|
| Mobile App Compatible |
No
|
| Receiver Type |
1x Rackmount (19")
|
| Mounting Options |
Rackmount (with Included Hardware, 1 U)
|
| Antenna |
2x Removable BNC 1/2 Wave External (Rear-Mount)
|
| Number of Audio Channels |
2
|
| Audio I/O |
2x XLR 3-Pin Balanced Output
|
| Network I/O |
2x RJ45 (Manual IP, Dante, DHCP)
|
| USB/Lightning Connectivity |
No
|
| Gain Range |
-18 to +42 dB (1 dB Steps)
|
| Frequency Response |
30 Hz to 20 kHz ±1 dB (Dependent on Mic)
|
| Display |
Backlit LCD
|
| Power Requirements |
AC Input
|
