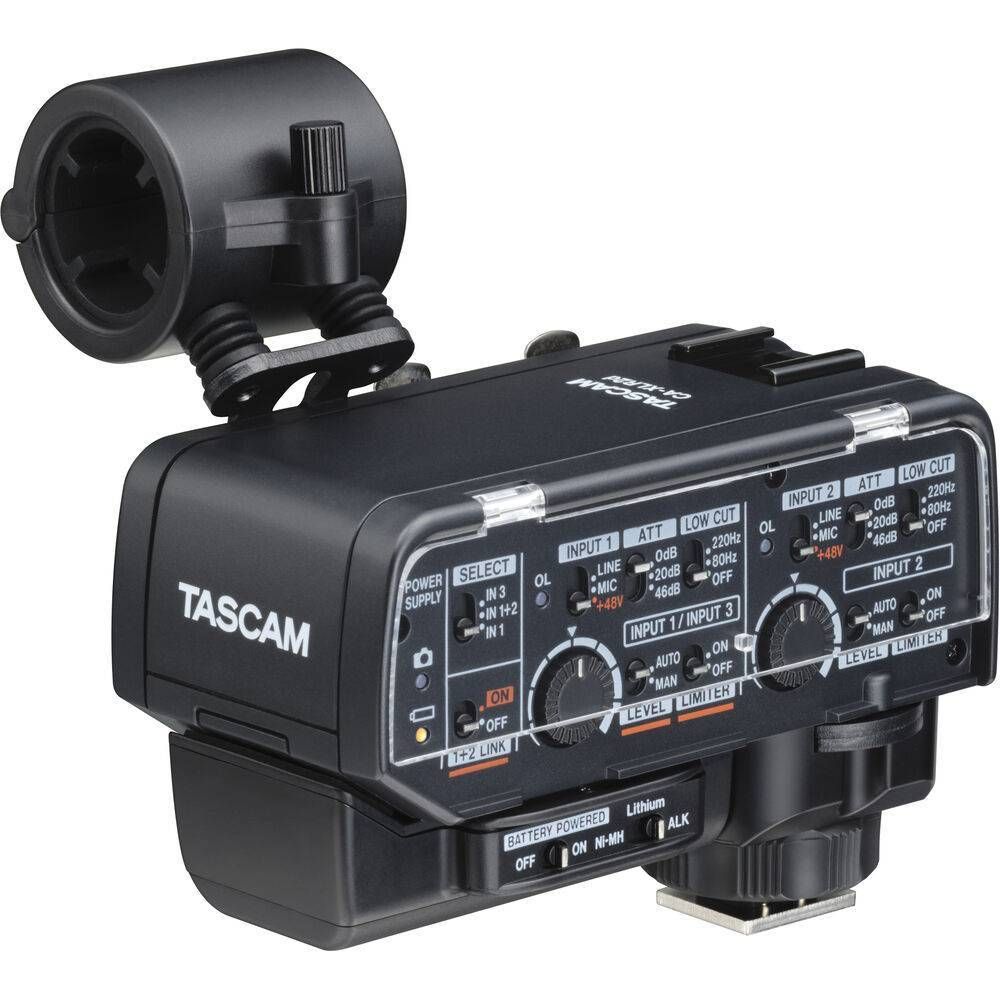

Capture high-quality, low-noise recordings from your favorite XLR microphone directly to your camera with the TASCAM CA-XLR2d-AN XLR Microphone Adapter Kit for Cameras. This version attaches to your camera's shoe mount and connects to the camera's external audio input via the included 3.5mm cable. Two AA batteries supply power for the preamp and 48V phantom power for condenser microphones, making this version well suited for use with mirrorless/DSLR models from Nikon and many other manufacturers.
Microphone Inputs Input Switch to MIC Input Impedance: ≥ 2 Kilohms Maximum Input Level: +6 dBu (Att Setting at 46 dB) Minimum Input Level: -60 dBu (Att Setting at 0 dB) Gain Range: 66 dB Line Inputs Input Switch to LINE Input Impedance: ≥ 10 Kilohms Maximum Input Level: +24 dBu (Att Setting at 46 dB) Minimum Input Level: +4 dBu (Att Setting at 0 dB) Gain Range: 66 dB
Unbalanced Input
Connector: 3.5 mm Stereo Input Jack Input Impedance: ≥ 2 Kilohms Maximum Input Level: +6 dBu (Att Setting at 46 dB) Minimum Input Level: -60 dBu (Att Setting at 0 dB) Gain Range: 66 dB Plug-In Power: 2.7 V
Unbalanced Output
Connector: 3.5 mm Stereo Input Jack Output Level: 0.29 Vrms (Fixed, Output Setting on Camera), 0.5 Vrms (Output Volume Setting at Max, Output Setting on Headphones) Headphone Working Impedance: 16 to 250 Ohms
Power Consumption
2 W Maximum
Dimensions
3.47 x 4.69 x 4.33" / 88.2 x 119.1 x 110 mm (Not Including Protrusions)
Weight
12.6 oz / 357 g (with Battery Holder Attached, Not Including Batteries)
