BROADCAST DEVICE DPS-100D-1-5/8 DIGITAL TRUE RMS RF POWER METER 0525
Be the first to review this product
Add to Wish List:

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

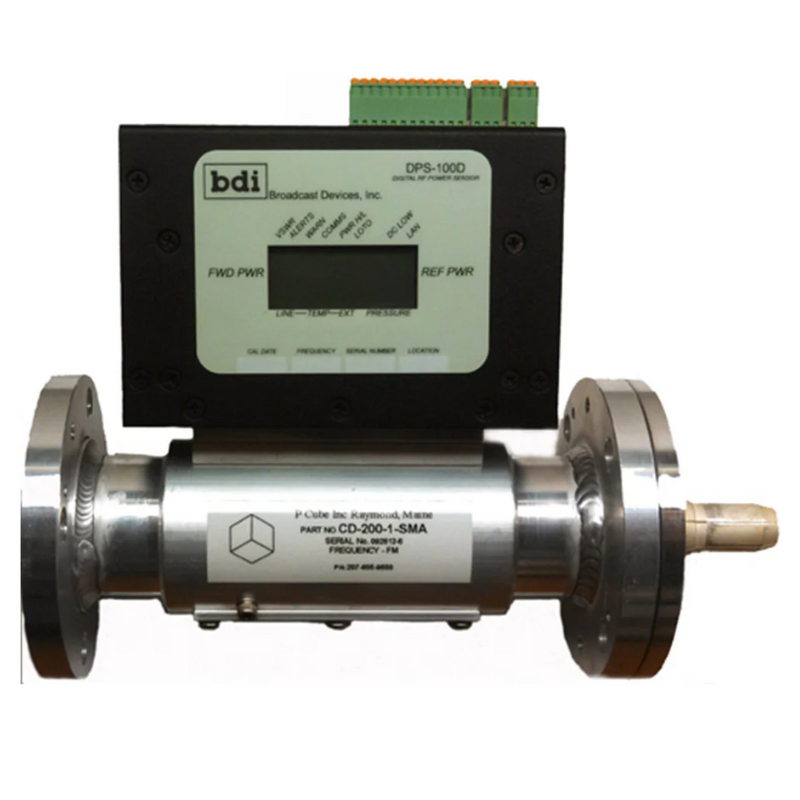

The DPS-100D Digital RF Power Measurement System includes a precision directional coupler ordered by EIA line size, and DPS-100D Digital RF power meter electronics package with onboard backlit LCD display. This system is suitable for measuring analog or digital RF signals with accuracy within +/- 5% of reading.

Use the DPS-100D as a standalone power monitor/antenna protection system or use more than one DPS-100D to create monitor system for master antenna applications or for complete RF facility site monitoring. The DPS-100D is part of a larger family of site monitoring products available from Broadcast Devices, Inc.

Your Rating

Features:

  • Simultaneous Forward/Reflected Power Indication
  • Onboard Backlit LCD Display with proprietary 3 strike protection system for sustained high VSWR conditions
  • Onboard Web Server for remote interrogation of parameters
  • Transmission Line Surface
  • Temperature Indication - Second Temperature Sensor input available*
    • Transmission Line
    • Pressure indication**
  • Phantom Powered RS-485 Communications bus for easy interconnection of other sensors using industry standard category 5 cabling or SWP series supervisory chassis available from BDI
    • Operate standalone or part of a larger system with up to 255 additional DPS-100D sensors
  • Analog 0-5 VDC scaled outputs of power indication for remote control input, 8 Programmable General
  • Purpose inputs for interlock lock out tag out status, remote reset etc.
  • 2 - Form C programmable relays for interlock and alarm indication
  • DPS-100D Digital RF Power Measurement System is available in all EIA standard transmission line sizes and includes 4-1/16", N and DIN -7/16
    • Flange to Flange Coupler Lengths:
      • 7/8" - 6.25"
      • 1-5/8" - 6.50"
      • 3-1/8" - 7.00"
      • 4-1/16" - 7.00"
      • 6-1/8" - 10.50"

Specifications:

Frequency Range Sensor: 50 MHz to 860 MHz
Power Range Sensor-Linear Range -40dbm to +10dbm.
No damage to +23dbm
Directional Coupler-See table in images
Coupler Features
Coupler Sizes available Type N, DIN, 7/8", 1-5/8", 3-1/8", 4-1/16", 6-1/8"
Coupler Loss -60 dB
Through Line VSWR 1.03:1 or better
Coupled Port Directivity 30 dB or better
Frequency Range 50 to 860 MHz
Through Line Impedance 50 ohms
Measurement Type True RMS - Suitable for CW, multi carrier and high crest factor digital RF signals such as COFDM, 8 VSB, DVB, etc.
Accuracy +/- 5% of reading.
Dynamic Range 40db Linear Dynamic Range. Measurements possible over 50db with reduced accuracy.
Power Measurement Range 0 - 1 Mega watt - Coupler Line Size Dependent
Measurement Capabilities Forward and Reflected RF Power, Transmission line temperature (Deg F / Deg C user selectable)
1 - External Temperature and line pressure sensors
6 - User configurable closure inputs. (typically patch panels, lock-out/tag-out)
Integrated Digital Display 2 Line x 16 character LCD display of Fwd/Ref
RF Power, Temperature (x2), Line Pressure
Dedicated Icons for VSWR fault, Alert Status
Communications Status, RF Power High/Low thresholds
DC power input status and LAN connection status.
Communications Interfaces Ethernet, RS-485, CAN, USB
Network Protocols SNMP, SMTP, TCP/IP, UDP, SNTP, HTTP
Remote Control Interface 2 - Configurable VDC proportional power outputs
2 - Form C configurable interlock/status relays/On/off
2 - Configurable External GP inputs for fault reset 12 Position Terminal Block
6 - Configurable General Purpose Inputs for lock out tag out, patch panel, external interlock strings, etc.
Ext. Temperature Sensor Input 3 - Position terminal block mates with BDI TMP-100 T Temperature Sensor
Ext. Pressure Sensor Input 3 Position terminal block mates with BDI PSW-100 Pressure Sensor
DC Input 12VDC Power Supply Available from BDI or phantom powered by BDI SWP Series Supervisory Chassis
