BROADCAST DEVICES SWP-300-2T DUALSWITCH SITE CONTROLLER + 1 5/8"
SKU
BDI-SWP-300-2T-2R1-1-5/8
MFR#
SWP-300-2T-2R1-1-5/8"
$8,135.00
Availability:
Out of stock
BROADCAST DEVICES SWP-300-2T DUALSWITCH SITE CONTROLLER + 1 5/8"

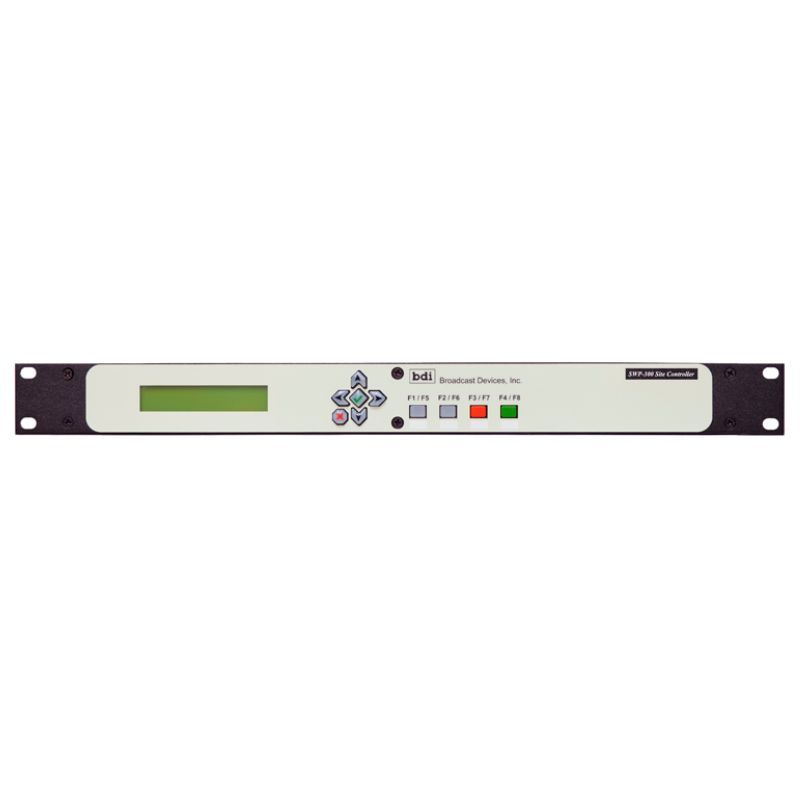

Broadcast Devices, Inc. announces a new product for the RF site industry, the SWP-300 RF Site Controller. The SWP-300 RF Site Controller is designed to provide complete web-enabled remote control of an RF site. The system provides direct connection to motorized RF switches and to the company’s popular DPS-100D True RMS Power Meter series. Complete transmitter control and interlock management is provided by a single connector; 16 additional control outputs, 8 status inputs and 4 analog inputs are provided. When DPS-100D power meters are interconnected forward and reflected power, temperature and transmission line pressure are displayed without the need to scale or setup analog inputs for this purpose. A web interface is provided that is compatible with BDI’s Stack Graphical User Interface. A simple setup program is supplied to label command buttons, status inputs and analog inputs. Accessories offered include pre-made motorized RF switch interface cable for direct plug and play connection to most RF switches offered.
Specifications:
| Independent Control Outputs | 16 total, 8 - Form C Relays individually configurable for momentary or maintained closure. |
| Relay contact rating | 2A. @ 120VAC/2A 24 VDC 8 - Solid State outputs individually configurable high or low output upon control activation. |
| Solid State output rating | On current 500 mA Max. for low state output, 50 uA for high state output. Open collector output 12 VDC available for pullup. CMOS/TTL Compatible |
| Independent Status Inputs | 8 - Solid State inputs configurable for High or Low input. High input impedance 3.00K ohms, Low input impedance 1.8 ohms, Internal pullup to 5 VDC. CMOS/TTL Compatible |
| Analog Voltage Inputs | 4 - single ended 0-5 VDC |
| Motorized Switch Interface | 1 or 2 model dependent. Interface provides A/B position control and receives A/B position status back. Can source 12 - 24 VDC for control of switch. Optional switch interface cables for Delta, Dielectric, Dowkey, ERI, Myat, MCI, Spinner motorized switches available. |
| External Interlock Inputs | 2 load specific inputs per switch |
| AC Power Loss Input | Prevents movement of RF switches in Automatic mode if power has been lost to transmitters |
| Dedicated Control Outputs | 2 - sets of TX ON/OFF command and Interlock control Form C relays for dedicated control of two transmitters. 1 - TX Fault Form C relay - closes when an optional BDI DPS- 100D power monitor is connected and indicates RF failure 1 - VSWR Fault Form C relay - closes when an optional DPS-100D power monitor is connected and indicates a high VSWR condition |
| Dedicated Status Inputs | 2 - TX On Status inputs for Main/Alt. transmitters, TX 1/TX 2 Selected to air - for use with motorized switches |
| Optional Input Sensors | Up to 2 external temperature sensors connected to optional DPS- 100D power meters Up to 2 - transmission line pressure sensors 0-15 PSI indication in 1 pound increments, requires the connection to a DPS-100D power sensor |
| Optional Power Meter Inputs | Up to two DPS-100D power monitors showing direct indication of all parameters available on a DPS-100D power monitor including Forward/Reflected Power, temperature, line pressure, 6 general purpose inputs from DPS-100D sensor inputs, external interlock and fault status |
| External Remote Control | Parallel GPIO, Ethernet - SNMPv2 Agent |
| Electrical Requirements | 100-240 VAC 50-60 Hertz @ 2A. EIC Power Entry Cord |
| Physical Specifications | 19" W X 10" D X 1.75" H - Standard EIA Rack Enclosure Mount |
| Environmental Requirements | 0-55 degrees C non condensing atmosphere |
| Shipping Carton Dimensions/Weight | 22" L X 14" W X 7" H, 15 lbs. |
