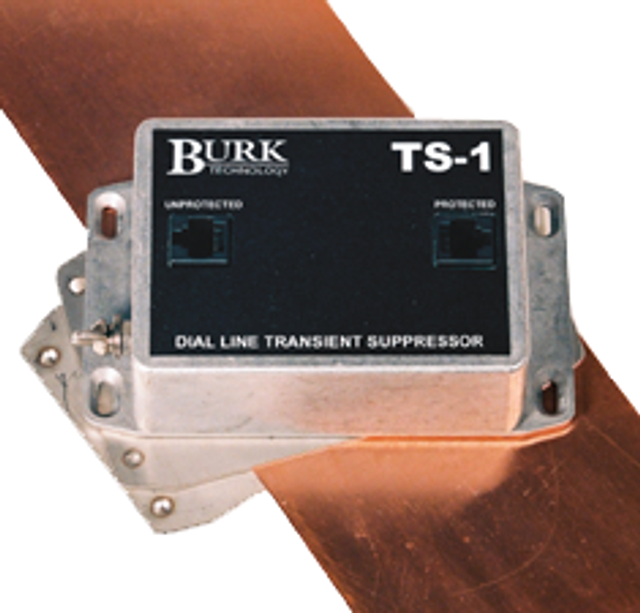

BURK TS-1 ROBUST TRANSIENT SUPPRESSOR WITH INCLUDED CLAMPING PLATE FOR UP TO 4 INCH COPPER STRAP.
SKU
BUR-TS-1
MFR#
TS-1.
$480.00
Availability:
Out of stock
BURK TS-1 ROBUST TRANSIENT SUPPRESSOR WITH INCLUDED CLAMPING PLATE FOR UP TO 4 INCH COPPER STRAP.
The TS-1 Transient Suppressor provides transient voltage surge suppression for equipment connected to a dial telephone line with standard RJ-13 or RJ-11 connectors. The high quality die cast aluminum enclosure houses a passive, three-stage protection device designed to conduct destructive energy safely to ground. Both RJ connections are protected, while allowing the normal ring voltage and voice or data to pass unimpeded. Studio or transmitter audio equipment connected to a two-pair dedicated stereo telco circuit may be protected with the TS-1.
Features:
- Provides voltage surge protection for equipment connected to standard telephone lines
- Mounts to station ground bus or grounding rod
- Three-stage design responds in less than five nanoseconds
- Can withstand repeated surges
Specifications:
| Dimensions | 1.73" (4.39 cm) H x 3.24" (8.23 cm) W x 5.48" (13.92 cm) D |
| Bandwidth | DC to 5 MHz |
| Maximum Surge Current | 10,000 amps |
| Maximum Repetitive Surge Current | 2,000 amps |
| Maximum Energy Capacity | 500 Joules |
| Response Time | 5 nanoseconds |
| Standard Clamping Voltage | 150 volts |
| Series Impedance | 24 ohms |
| Maximum Series Current | 1 amp |
| Operating Altitude | 10,000 feet |
| Operating Humidity | 5% to 90% non-condensing |
| Operating Temperature | 0° to 85°C |
