DB7002 is a revolutionary solution that combines in a single, high-precision tool the most important functionalities of two separate types of product. To achieve that, our engineers have equipped this model with two independent tuners - one for FM and one for DAB/DAB+, allowing for the device to perform both FM and DAB/DAB+ monitoring in parallel. It provides detailed and accurate measurement of all of the most important signal parameters and also boasts two loggers with 24 channels apiece for FM and DAB/DAB+. The recorded information is stored in log files on an SD card for easy future analysis and can easily be downloaded via a standard FTP client.
As a product that incorporates DAB/DAB+ monitoring capabilities, DB7002 fully meets the ETSI EN 300 401 DAB standard and offers support for Program Associated Data (PAD), as well as all standard bitrates and VBR, and automatically displays live metadata.
As an FM monitoring tool, DB7002 also provides powerful signal processing capabilities through sophisticated DSP algorithms and offers a Loudness Meter, which allows for measurements to be shown as defined by ITU BS.1770-4 and EBU R128 recommendations.
To make sure the transmission is not interrupted, there are local alarm options and online notifications via rear-panel alarm GPOs, E-mail and SNMP in case there is audio loss or a change in the signal.

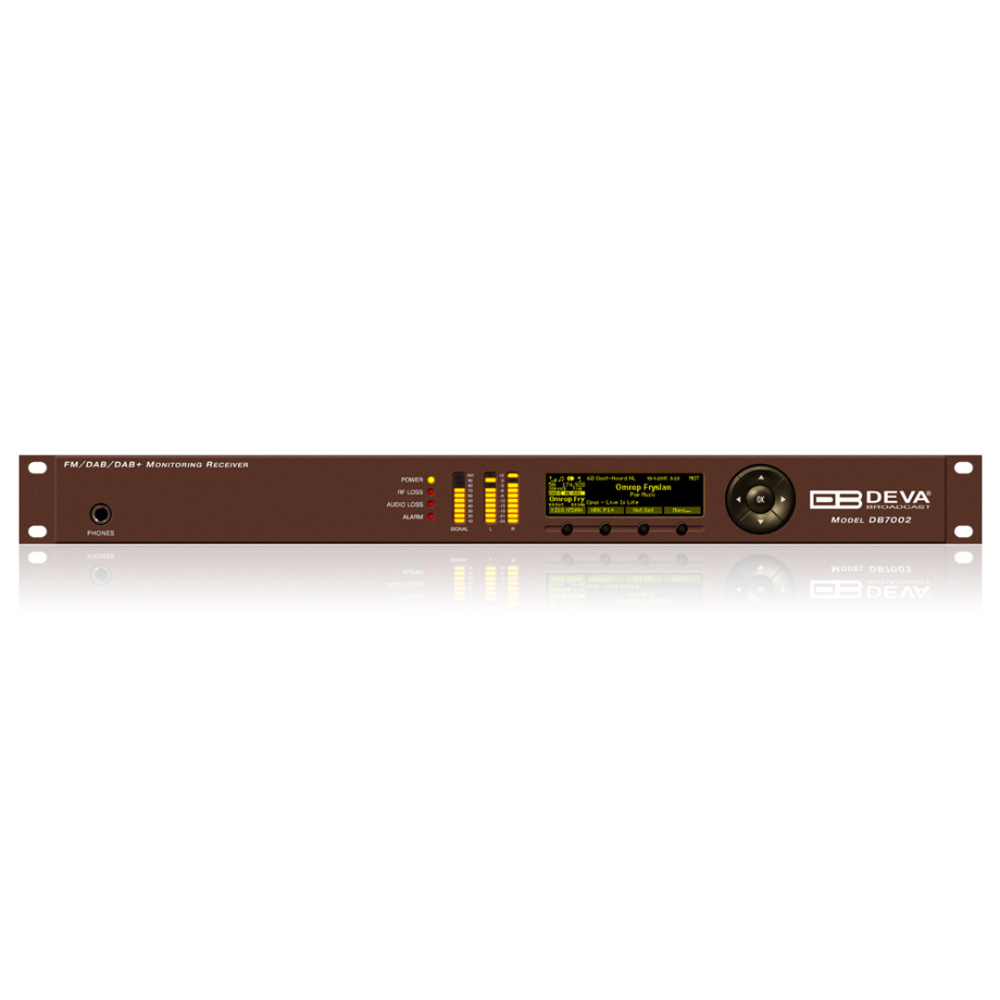

DB7002 can also be managed without effort. It is easy to program via the front-panel menu or remotely through your PC, tablet or smart phone via a standard web browser; iOS and Android devices are also supported. The high-resolution OLED graphical display and the ultra-bright LED bar graph indicators allow for easy reading of the main signal parameters. A user-friendly front panel menu in addition to the set of four soft buttons provides easy navigation and quick access to each function.
DB7002 is definitely a must-have. Its two independent tuners set it apart from any other product, while its effectiveness and precision make it the perfect monitoring tool.
Features:
Specifications:
DAB/DAB+ Radio Input | |
RF frequency range | 168 - 240 MHz |
DAB/DAB+ | Band III Channels 5A - 13F |
Sensitivity | 18 dBµV |
Input connector | BNC 50Ω |
In compliance with | ETSI EN 300 401 |
Ensemble acquisition Time | 940 ms |
L&R Audio | 1%, +5.0 to -50.0 dB, 0.1 dB resolution |
DAB/DAB+ Radio Metering | |
Quality indicators | RSSI, SNR, CNR, FIC Quality, FIB Errors, FFT Offset |
PAD | DLS, MOT |
Metadata Displayed | Ensemble Label, Component List & ID, Service List & ID, Dynamic Label, PTY, Sample Rate, Bit Rate, Gain, Mode, Service Mode, Protection Info, Current CU & Address, Country, Language, Time & Date |
FM Radio Input | |
Tuning Range | 87.1-108 MHz (CCIR) |
Tuning Step | 10, 20, 50, 100 kHz |
Tuner Sensitivity | 30 dBµV |
Antenna Ports | BNC Connector, 50Ω |
Antenna Ports Isolation | > 40 dB |
Dynamic range | 100 dB |
FM Demod | |
IF Filter Bandwindth | 15 Increments (27kHz - 157kHz, Auto) |
Dynamic range | 90 dB |
Stereo Decoder | |
Frequency Response (L and R) | ±0.1 dB, 10 Hz to 15 kHz |
SNR (Stereo) | 60 dB, 50 µs de-emphasis |
THD | 0.15% @ 1kHz, 0.4% from 10 Hz to 15 kHz, 50 µs de-emphasis |
Separation | 50 dB, 50 Hz to 10 kHz, 50 µs de-emphasis |
Crosstalk | 52 dB |
RDS Decoder | |
Standards | European RDS CENELEC; United States RBDS NRSC |
Error Correction & Counting | Yes |
AF Decoding | Yes |
CT (Time/Date) | Yes |
PI, PTY, DI, MS | Yes |
TA/TP | Yes |
PS (Program Service name) | Yes |
Group Analyzer | Yes |
BER Analyzer | Yes |
Group Sequence Display | Yes |
FM Radio Metering | |
RF Level | ±1 dB, 0 to 100 dBµV |
Audio | ±1 dB, +10.0 to -55.0 dB, 0.1 dB resolution |

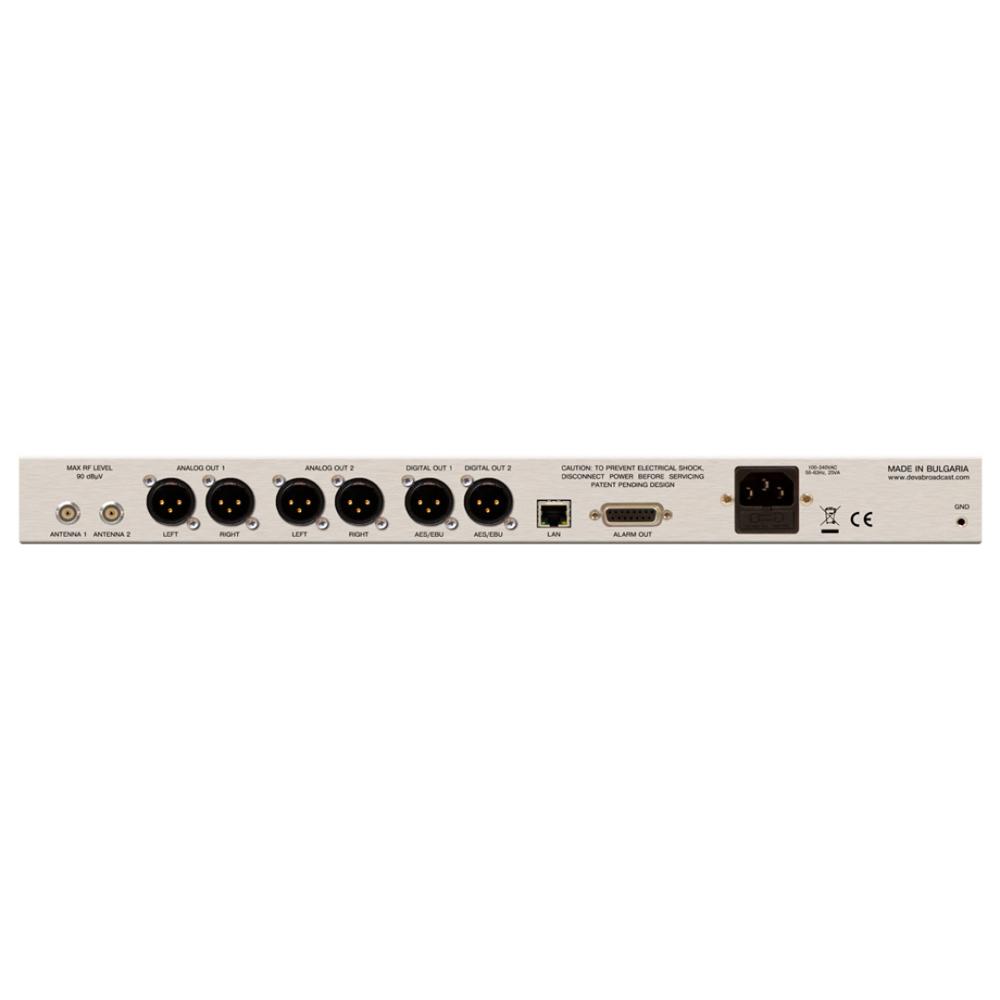

Outputs | |
FM Audio (L, R) | +6 dBm, 600Ω, balanced XLR Connector |
DAB/DAB+ Audio (L, R) | +12 dBm, 600Ω, balanced XLR Connector |
AES3 (L, R) | 5.0 Vp-p, 110Ω, balanced XLR Connector |
Alarms | 7 Programmable terminals on rear panel, optoisolated |
Headphone | 6,3mm (1/4") Phone Jack |
Communication Interfaces | |
Ethernet 10/100 Base-T | RJ45 Connector |
Measurement Storage | |
Storage | 16GB Build-in Memory Card |
Data format | Text, CSV |
Power | |
Voltage | 100-240V / 50-60 Hz |
Power Consumption | 20VA |
Connector | IEC320, Fused and EMI-suppressed |
Size and Weight | |
Dimensions (W;H;D) | 485 x 44 x 180 mm |
Shipping Weight | 540 x 115 x 300 mm / 2.700 kg |
HS Code | 8527212000 |
