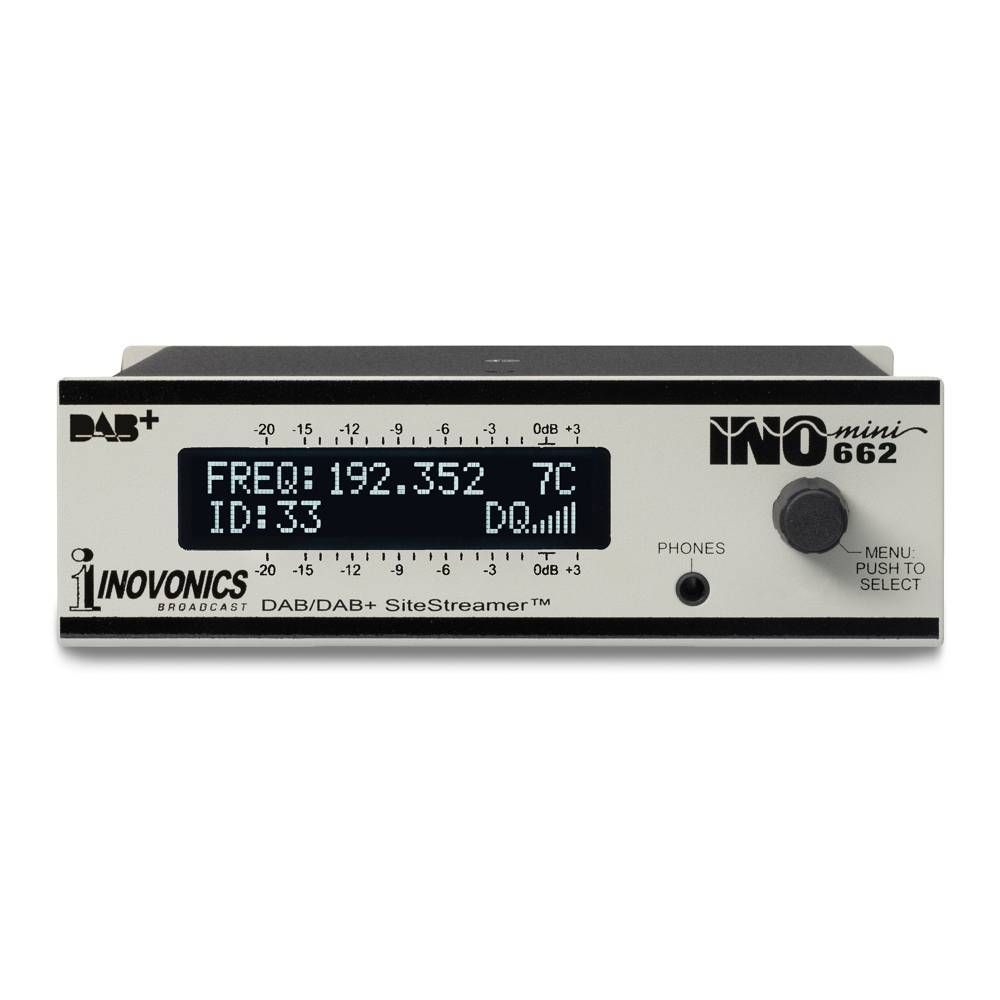

INOVONICS 662 INOMINI DAB/DAB+ SITESTREAMER™ WITH WEB INTERFACE | SNMP
SKU
INO-662
MFR#
662
was
$1,150.00
Special Price
$1,035.00
Availability:
Out of stock
The Web-enabled 662 DAB+ SiteStreamer™ provides remote audio monitoring via the Internet. Monitor up to 30 preset sources of DAB+ programming from a remote site over the Internet. Tune-in, switch modes, listen remotely via streamed audio, and receive email or text alarms & notifications.
The Station Rotation™ feature permits monitoring of station presets by ‘round robin’ sequencing of up to 30 stations - each with its specific alarm parameters.
The compact 1/3-rack-size 662 integrates with other Inovonics INOmini products, including RDS encoders and decoders, AM/FM/HD-Radio confidence monitors with IP control and streaming audio, and other economic problem-solvers for broadcasters.
Special prices are available for INOmini RackPack™ combos that include three INOmini units preinstalled in the Rack Shelf.
Features:
- Monitor your DAB and DAB+ signal from any remote location via the Internet
- Accurate front-panel and Web Interface program audio level display
- BandScanner™ gives a spectrum plot of all or part of Band III
- Station Rotation’ can monitor up to 30 stations sequentially
- AES digital AUX input can monitor hardwired audio program feeds A/B between source and air
- Full dynamic browser support of all operating features, including audio streaming through the dynamic Web Interface
- Sends instant error messages via email or SMS text; logs signal loss, audio loss, DAB/DAB+ loss
- Easy setup and operation; full SNMP support
- Headphone jack
Specifications:
Tuning Range
- DAB Band III, Mode I (174.928MHz- 239.200MHz); all EBU-specified frequency allocations (Blocks 5-12, A-D) plus Block 13 A-F
Receiver Sensitivity
- 10μV for error-free reception
Antenna Input
- 75-ohm (BNC)
Audio Codecs
- MPEG-1 Audio Layer 2 (MP2); HE-AAC (AAC+)
Audio Response
- ±0.25dB, 20Hz-20kHz
AUX Program Line Input
- AES3 (XLR) digital AUX input accepts 32kHz, 44.1kHz, 48kHz sampling with programmable input sensitivity.
Network Connection
- RJ45 jack accepts universal TCP/IP connector to LAN/router/Internet.
Headphone Jack
- 3.5mm TRS with menu-adjustable level
Signal Parameters & Metadata Displayed
- Frequency, RSSI, SNR, FIC Quality (FQ), CNR, FFT Offset, CNR FIB Error, CU Level, Ensemble Label & ID, Total Services, Total Components, Total CU, Time, Dynamic Label Segment & Size, Sample & Bit Rates, Gain, Mode & ServiceMode, Protection Info, Current CU & Address, Frequency & Block, Service Label & ID, PTY, Component Label & ID, Global ID, Country, Language, Character Set ID, L/R Audio Levels
Alarms
- Audio Loss, Low Signal, DAB Loss; adjustable thresholds and delays
Alarm Logs
- Alarms are logged and may be downloaded as daily, weekly or monthly CSV files.
Power Requirement
- +12VDC at 110mA (2.1mm x 5.5mm coaxial); a universal inline switchmode power supply is provided.
Mounting Options
- An optional rack adapter accepts up to three INOmini modules in a 1U rack space.
Size and Weight
- 1.6”H x 5.5”W x 5.5”D
- 4 lbs shipping weight
Environmental
- Continuous operation at ambient temperatures between 32ºF/0ºC and 122ºF/50ºC; 0-95% relative humidity, non-condensing, altitudes to 10,000ft/3,048m.
