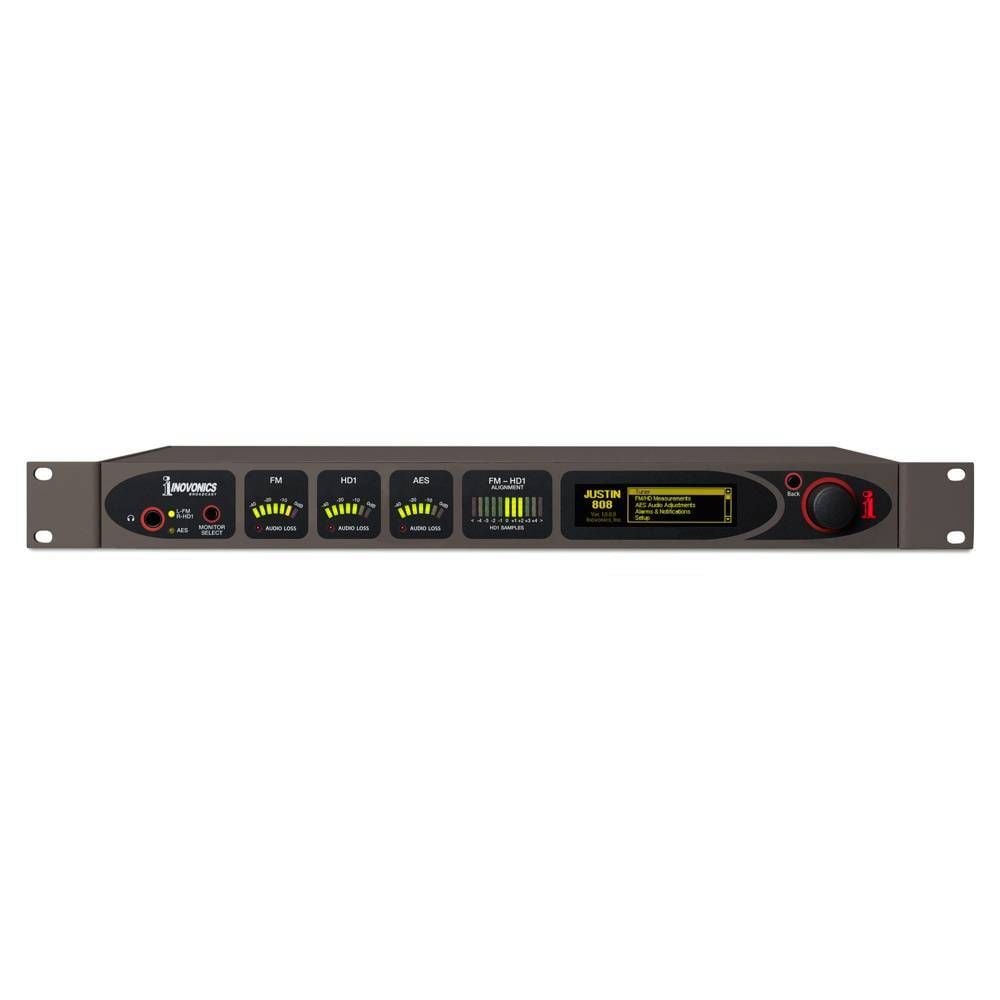

The JUSTIN 808 maintains time alignment between analog FM and HD1 channels to within 23 microseconds (±1 sample). The JUSTIN 808 only makes its time-alignment adjustments to the HD1 channel leaving the critical FM transmission untouched - an important distinction when choosing a time-alignment processor. No more lost words, stuttering, echoes, or level shifts. The entire sync process is 100% automatic, and the JUSTIN’s Web interface features SNMP support and dispatches e-mail and SMS alarm messages.
The JUSTIN 808 maintains time alignment between analog FM and HD1 channels to within 23 microseconds (±1 sample). The JUSTIN 808 only makes its time-alignment adjustments to the HD1 channel leaving the critical FM transmission untouched - an important distinction when choosing a time-alignment processor. No more lost words, stuttering, echoes, or level shifts. The entire sync process is 100% automatic, and the JUSTIN’s Web interface features SNMP support and dispatches e-mail and SMS alarm messages.
Insert in either the FM or HD Radio™ AES digital feed
Full Web interface for remote control, metering, etc.
SMS/email alarms for loss of signal and loss of audio
Extensive data logging with graphic display
Auto failover with relay bypass
Specifications:
CONNECTIVITY
Receiver Input
75-ohm ‘F’ connector. Receiver tunes 87.5 to 107.9MHz in 200kHz steps. An RF input level of 20dBμV or more assures reliable operation.
AES Digital Audio I/O:AES3 (XLR) digital audio loop-through; 44.1kHz sampling rate
Network Interface: LAN (RJ45) connection to local network and through user’s router to Internet for full Web Interface remote control and monitoring.
PLACEMENT IN AIRCHAIN
In HD Radio AES Audio Feed
Placed in line with the AES audio feed to the HD Radio™ exciter, the JUSTIN 808 will automatically correct diversity delay errors and r.m.s. level errors between the FM and HD1 programs.
In Analog FM AES Audio Feed
Placed in line with the AES audio feed to the analog FM stereo encoder, the JUSTIN 808 is capable of providing the entire diversity delay, if required. It will automatically correct diversity delay errors, but cannot normalize r.m.s. level errors between the two programs.
DELAY CORRECTION
Correction Resolution
Corrects to ±1 sample (±23 μs)
Maximum Delay Error Correction
16 seconds
Time Required to Correlate Delay Errors
Small delay errors (up to 0.4 seconds) require up to 30 seconds to correlate; delay errors of 10 seconds could require as much as 3.5 minutes.
“Catch-Up” Button Feature
A front-panel menu item, also accessible via the Web Interface, permits a manual time alignment quick reset to a previous long-term mean value. This obviates correlation acquisition and brings time alignment close to the required figure.
AUDIO LEVEL AND PHASE CORRECTION
The JUSTIN 808 offers automatic program phase correction when a phase reversal is sensed between the analog FM and digital HD1 program channels. R.M.S. level correction is also available when the JUSTIN 808 is placed in the AES digital audio feed to the HD Radio™ exciter.
ALARMS AND LOGGING
Alarm Conditions
1. RSSI(Low RF signal)
2. Audio Loss or Levels Out of Range
AES Loop-Through
Off-air FM Audio
Off-air HD1 Audio
3. Out of Alignment Range(user preset)
Alarm Indications
Front-panel OLED display
Rear-panel ground-closure ‘tallies’ with selectable logic polarity
SMS-text/email notifications via SMTP
JUSTIN 808 Webpage indication
Alarm Logging
All alarms are logged by the JUSTIN 808; statistics are presented graphically via the Web Interface and may be downloaded for follow-up study.
Web Interface
The JUSTIN 808 Web Interface is compatible with desktop/laptop computers, tablets and smart phones, and supports SNMP with a downloadable MIB file. All functions available at the front panel are duplicated by the Web Interface.
MISCELLANEOUS
Power Requirements
105 - 130VAC or 210 - 260VAC, 50/60Hz; 20 watts
Size and Weight
1¾”H x 19”W x 9”D (1U); 10 lbs. (shipping weight)
Environmental
Continuous operation at ambient temperatures between 32ºF/0ºC and 122ºF/50ºC; 0-95% relative humidity, non-condensing, altitudes to 10,000ft/3,048m.
