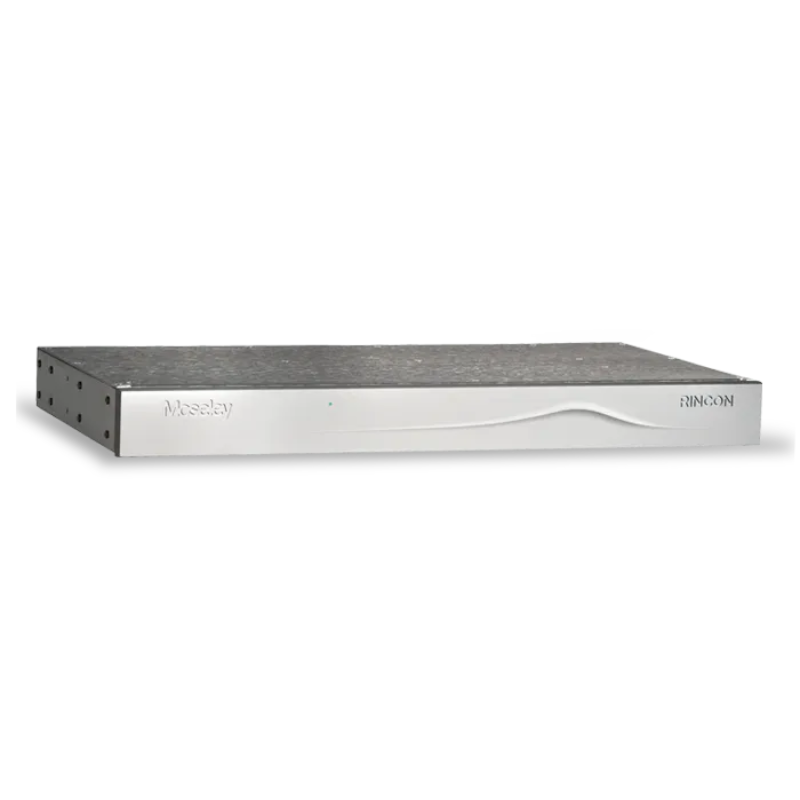

MOSELEY RINCON 413 IP-T1/E1 TRANSPORTER, AES & ANALOG I/O

Moseley
SKU
MOS-RINCON-413
MFR#
RINCON-413
was $4,740.00 Special Price $4,400.00
Availability: Out of stock
MOSELY RINCON 413 IP-T1/E1 TRANSPORTER, AES & ANALOG I/O
Be the first to review this product
Add to Wish List:

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

Based on Moseley’s Advanced Intelligence Multiplexer (AIM) technology, Rincon is the broadcast industry’s first Software Defined Audio Transport Product optimized to deliver multichannel digital audio over IP, TDM or Wireless Networks simultaneously. The product’s ability to leverage these network choices and low purchase price gives an excellent return on investment.

Your Rating

Features:

  • 4 stereo channels per unit provides high payload capacity, supports multi-station clusters.
  • Bidirectional Ethernet transport in Tl mode supports HD Radiow stream and IP based equipment control
  • 4>0, 3x1 or 2x2 bidirectional to provide backhaul audio for downlink or RPI-J or confidence monitor
  • AES/EBU and Analog XLR connectors and integrated Analog and AES for operator's ease of use
  • Choice of Linear Uncompressed, MPEG2, MP3, AAC LC&LD, and G.722/G.711 maximizes performance over any network topology
  • Simultaneous El/T1 and IP transport allows broadcasters to select the most cost effective network available
  • Integrated Ethernet Switch for QOS to make sure your audio gets through the traffic
  • Integrated Web Server/SNMP Agent for ease of management
  • Manage Rincon from your PC, Smartphone or Tablet
  • Unicast/Multicast RS-232 channels for RDS or device control
  • 8 Alarm and 3 Status conditions are transported across the link
  • 100 parameters may be mapped to alarms or status reporting

Specifications:

System Transport
Interoperability ACIP Compliant, VLC Compatible
FEC Pro-MPEG CoP 3 r2
Streams Up to 4 Audio Streams
VLAN IEEE 802.1Q Support
Packet Size User Selectable per Stream
Jitter Buffer Adaptive or Adjustable per Stream
QoS Per Stream, ToS, DiffServ
Topology Point-to-Point (Uni/Bidirectional), Point-to-Multipoint (Multicast)
Synchronous Backup Programmable Failover per Stream to Alternate Audio Source and Transport
Latency (IP Transport) 30 – 500 ms
System Audio
Frequency Response < 5 Hz to 22.5 kHz (48 kHz); < 5 Hz to 15 kHz (32 kHz)
Distortion < 0.01% at 1 kHz
Sample Rate Selectable 32, 44.1, 48 kHz with Built-in Rate Converter
Dynamic Range 90 dB (Static Encoder/Decoder); > 120 dB (AES/EBU)
Crosstalk -80 dB
Level Stability < 0.2 dB
Channels Supported 4 Stereo Channels (Digital), 4 Stereo Channels (Analog)
Codec Support Uncompressed, MPEG Layer 2/3, AAC–LD, LC, G.722, G.711
Encoder & Decoder
Audio Connectors Analog Input (XLR Male), Output (XLR Female); AES/EBU (RJ-45 with External XLR Cable)
Audio Sample Rates 32/44.1/48 kHz Selectable, Built-in Rate Converters
Analog Audio Inputs Electronically Balanced, 600Ω/10kΩ Selectable, CMRR > 60 dB
Analog Audio Outputs Electronically Balanced, Low-Z
Analog Audio Level -10 dBu to +18 dBu
Digital Audio AES/EBU
AES/EBU In/Outputs Transformer Balanced, 110Ω
Data Input Rates Asynchronous, 300–9600 bps Selectable
Bit Depth 16 or 24 Bits
T1/E1 Interfaces
Interface 2 x E1 / T1
CSU Built-in
Connector RJ-45, BNC Adapter Optional
Impedance 100Ω Balanced, Available BNC Adapter
T1 Line Codes B8ZS, AMI
T1 Framing ESF, D4
E1 Line Codes HDB3
E1 Framing 256N, 256S with/without CRC-4
E1 Compliance CCITT Recommendations G.703, G.704, G.732
Line Length Equalizer Short-Haul and Long-Haul Supported
Ethernet & Physical
Ethernet Interface 2 x 100Base-T
Standard Ethernet IEEE 802.3 Bridge
Connector RJ-45 (2 Ports)
Power Universal AC 90–260V, 47–63 HzOptional Redundant PSUOptional 24Vdc/48Vdc Supply
Dimensions 1.75" x 17.5" x 8.5" (1RU)44.5mm x 445mm x 216mm
Mounting Rack Mount with Included Ears
Operating Temperature 0°C to 50°C
Humidity 90% Noncondensing
Regulatory Compliance FCC Part 68, FCC Part 15, ETSI
