BURK PLUS-X IP-8 / CONNECTS TWO EXISTING ARC-16 IP-8 INTERFACE PANELS TO A NEW OR EXISTING ARC PLUS SYSTE

Burk
SKU
BUR-PLUS-X-IP8
MFR#
PLUS-X-IP8
$2,055.00
Availability: Out of stock
BURK PLUS-X IP-8 / CONNECTS TWO EXISTING ARC-16 IP-8 INTERFACE PANELS TO A NEW OR EXISTING ARC PLUS SYSTE
Be the first to review this product
Add to Wish List:

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

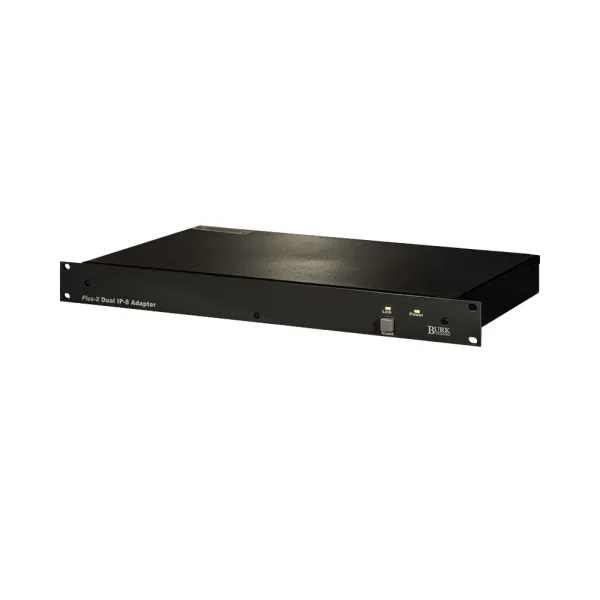

Simplify Your ARC-16 System Upgrade
Introducing the Plus-X Dual IP-8 Adapter, a groundbreaking solution designed to streamline the upgrade process for legacy ARC-16 systems. This innovative adapter allows for a seamless transition to the ARC Plus Touch by connecting up to two ARC-16 IP-8s using the existing DB37 cables. With the Plus-X Dual IP-8 Adapter, you can upgrade your system without the need to rewire a single channel, saving valuable hours of work and significantly simplifying the upgrade process.

Efficient and Cost-Effective System Enhancement
Upgrading your system has never been more efficient or cost-effective. The Plus-X Dual IP-8 Adapter is equipped with all the necessary I/O for up to 16 channels, eliminating the need for additional input and output units. This adapter is the key to unlocking the full potential of your system with minimal investment, ensuring a smooth and affordable transition to enhanced capabilities.

Your Rating

Features:

  • Connects to two IP-8s
  • Provides ARC Plus access to existing IP-8s without rewiring
  • Ethernet link to ARC Plus

Specifications:

Dimensions Height: 1.75" (4.45cm)
Width: 19" (48.26cm)
Depth: 12" (30.48cm)
Operating Temperature 0° to 40°C
Power Requirements 100 to 240VAC, 47–63Hz, 1A
Power entry module with standard, grounded power cord supplied
1A fuse protection
Connectivity Ethernet connection to ARC Plus
DB37 cables to IP-8 (not included)
Channel Capacity 8 metering, 8 status, and 8 command channels per IP-8 (up to 2 IP-8s)
Existing IP-8(s) required
Metering Input Range -4.5VDC to +4.5VDC
Metering Input Accuracy > 99.75% accuracy, full scale
Status Input Range 0 to +28VDC or switch closure
Output Types 32 open collector outputs (16 raise, 16 lower)
Maximum 250mA, 28V
