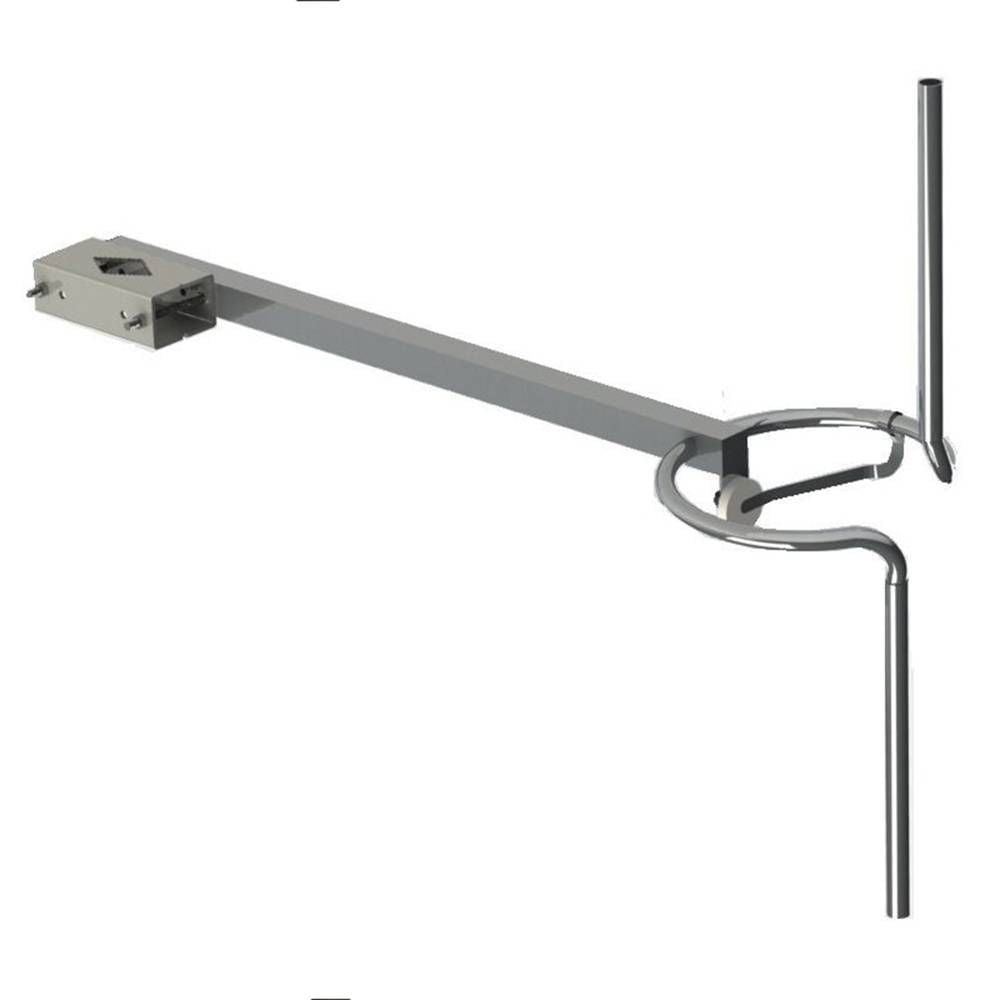

RVR ACPOp CIRCULAR POLARIZATION ANTENNA 24 " X 13 " X 44 " = 17 LBS.

SKU

ACPO

MFR#

ACP0

$539.40

Availability: Out of stock

True Circular Polarization Tuned Antenna, N type connector, maximum power 800W

True Circular Polarization Tuned Antenna, N type connector, maximum power 800W

Your Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

Features:

• Band II
• FM Band 87.5÷108 MHz
• Tuned antenna
• True circular polarization
• Stainless steel AISI 304

Specifications:

Electrical Data
Frequency range	87.5÷108 MHz
Impedance	50 Ohm
Connectors	N female
Max Power	800W (N female)
VSWR ± 100KHz	≤ 1.1:1
Polarization	Right circular
Gain	-3.4 dB
Pattern	Omni directional ±1.5 dB in free space
Pattern	Omni directional ±3 dB with 100mm dia. pole
Lightning protection	All metal parts DC grounded

Mechanical Data
Dimensions	1000 x 300 x 800 mm
Net Weight	3 kg without clamp 5.5 kg with clamp
Wind surface	0.036 m2
Wind load	6 kg (wind speed at 160 km/h)
Max wind velocity	220 km/h.
Materials	External parts: Stainless Steel
Materials	Internal parts: silver plated brass
Mounting	With special pipe clamps 50¸110 mm dia.
