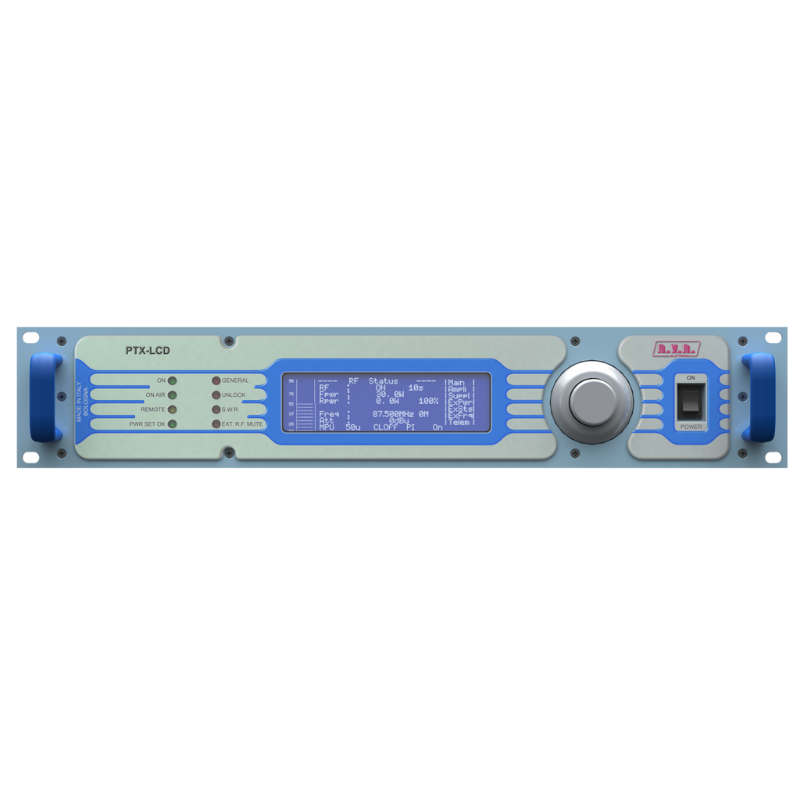

RVR PTX30LCD/DIGIN/DSP MONO-MPX STEREO FM PROFESSIONAL EXCITER 0-30W, FREQUENCY RANGE 87.5-108MHZ, B
SKU
PTX30LCD/DSP
MFR#
PTX30LCD/DIGIN/DSP
$6,797.60
Availability:
In stock
RVR PTX30LCD/DIGIN/DSP MONO-MPX STEREO FM PROFESSIONAL EXCITER 0-30W, FREQUENCY RANGE 87.5-108MHZ, B
Experience CD-quality audio performance with this high-end exciter, delivering clear, transparent sound thanks to a 90dB signal/noise ratio, ultra-low distortion, and 60dB stereo separation. Designed as an independent exciter with adjustable power output (0-100%), it features an isofrequency board (SFN) and ITU-compliant limiter for controlled spectrum emissions.
Built with a durable stainless steel chassis (2U rack), it offers easy microprocessor control via a large LCD and optical encoder. Connectivity includes analog (L/R, mono), MPX, SCA/RDS, and digital inputs (S/PDIF, TOSLINK, AES/EBU). A built-in stereo coder and digital RDS encoder (UECP) enhance functionality.
Ensuring reliable operation, it includes Fold-Back VSWR protection and IAMLC for stable modulation. Easy maintenance and full EC/FCC/CCIR compliance make it a professional-grade solution for broadcast excellence.
Specifications:
| PTX30LCDDSP | ||||
| Parameters | U.M. | Value | Notes | |
| GENERALS | ||||
| Frequency range | MHz | 87.5 ÷ 108 | ||
| Rated output power | W | 30 | Continuously adjustable from 10 to 100% | |
| Modulation type | Direct carrier frequency | |||
| Operational mode | Mono, Stereo, MPX | |||
| Working temperature | °C | -5 to +50 | ||
| Working humidity | % | 85 | Without condensing | |
| Working altitude | mt | Up to 3000 * | * With adequate air evacuation system in site | |
| Frequency setting | kHz | 10 | Steps | |
| Frequency stability | Temperature range from -5°C to 50°C | ppm | ±1 | |
| Modulation capability | Refered @ 0dBu for 75kHz | kHz | 150 Stereo, 200 Mono/MPX | Meets or exceeds all FCC and CCIR rules |
| Pre-emphasis | µs | 0, 25, 50, 75 | Selectable | |
| POWER REQUIREMENTS | ||||
| AC Power input | AC Supply Voltage | VAC | 115 - 125 - 230 - 250 | |
| AC Apparent Power Consumption | VA | 135 | ||
| Active Power Consumption | W | 95 | ||
| Power Factor | 0,7 | |||
| Overall Efficiency | % | Typical 31 | ||
| Connector | IEC Standard | |||
| MECHANICAL DIMENSIONS | ||||
| Phisical dimensions | Front panel width | mm / inch | 483 / 19 | EIA rack |
| Front panel height | mm / inch | 88 / 3 1/2 | 2HE | |
| Overall depth | mm | 400 | ||
| Chassis depth | mm | 389 | ||
| Weight | kg | About 10 | ||
| Cooling | Forced, with internal fan | |||
| Acoustic noise | dBA | < 56 | ||
| AUDIO INPUTS | ||||
| Left / Mono | Connector | XLR F | ||
| Type | Balanced | |||
| Impedance | Ohm | 10 k or 600 | ||
| Input Level, Adjustment Range | dBu | -13 to +14 | 1 dB step adjustable | |
| externally fine adjustable | dB | ±0,5 | ||
| Internal jumper | dB | -12 | ||
| Right/MPX balanced | Connector | XLR F | ||
| Type | Balanced | |||
| Impedance | 10 k or 600 | |||
| Input Level, Adjustment Range | -13 to +14 | 1 dB step adjustable | ||
| externally fine adjustable | ±0,5 | |||
| Internal jumper | -12 | |||
| MPX unbalanced | Connector | BNC | ||
| Type | Unbalanced | |||
| Impedance | Ohm | 10 k or 50 | ||
| Input Level, Adjustment Range | dB | -13 to +14 | 1 dB step adjustable | |
| externally fine adjustable | dB | ±0,5 | ||
| Internal jumper | dB | -12 | ||
| SCA/RDS | Connector | 3 x BNC | ||
| Type | Unbalanced | |||
| Impedance | Ohm | 10 k | ||
| Input Level, Adjustment Range | dBu | -17 to -40 | Adjustable | |
| 2 Internal jumpers for SCA 1 & 2 inputs | dB | -20 | ||
| Internal jumper for RDS input | dB | -30 | ||
| AES/EBU | Connector | XLR F | ||
| Type | Balanced | |||
| Impedance | Ohm | 110 | ||
| TOS/Link | Connector | TOSLINK | ||
| Type | Optical | |||
| OUTPUTS | ||||
| RF Output | Connector | N type | ||
| Impedance | Ohm | 50 | ||
| RF Monitor | Connector | BNC | ||
| Impedance | Ohm | 50 | ||
| Output Level | dB | Approx. -30 | ||
| Pilot output | Connector | BNC | ||
| Impedance | Ohm | >4,7 k | ||
| Output Level | Vpp | 1 | ||
| MPX Monitor | Connector | BNC | ||
| Impedance | Ohm | >600 | ||
| Output Level | dBu | 0 | Sinusoidal | |
| FUSES | ||||
| On mains | 1 External fuse F 6,3 T - 5x20 mm | |||
| On services | X | |||
| On PA Supply | 1 External fuse F 6,3 A - 5x20 mm | |||
| On driver supply | X |
