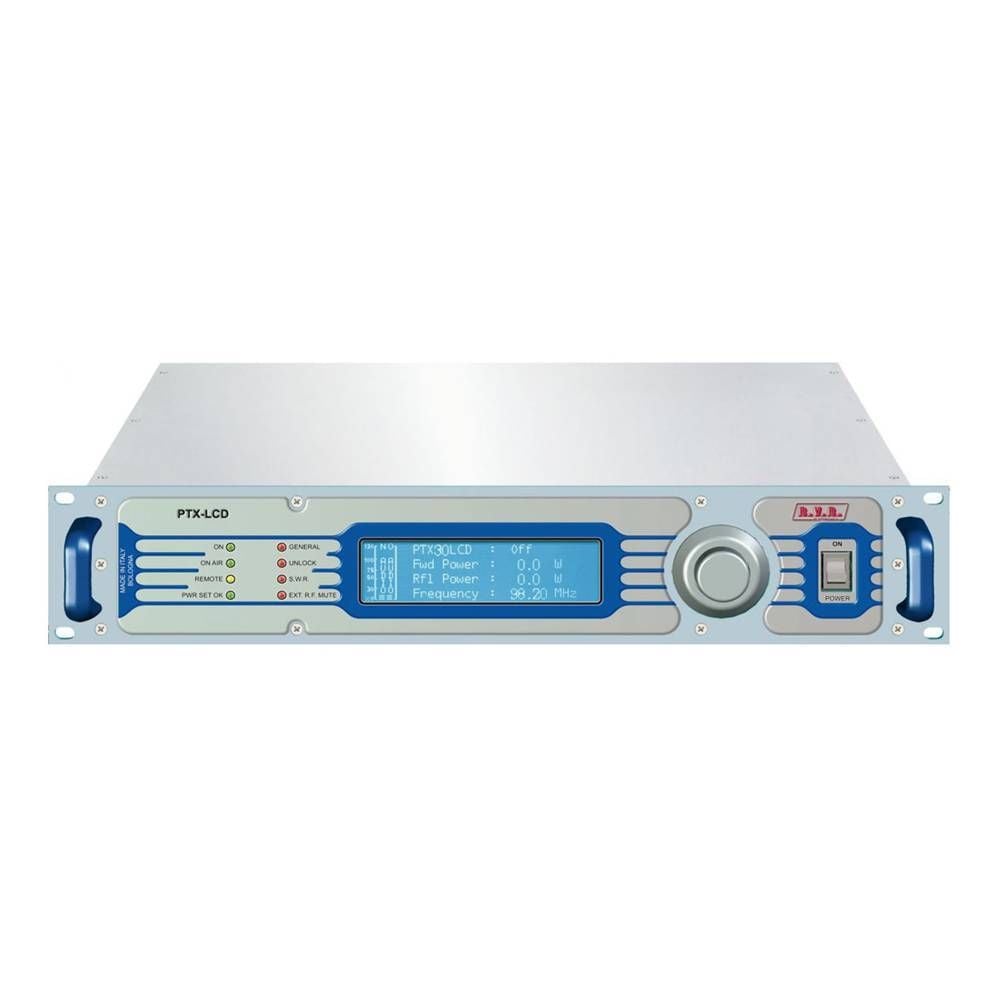

30W Compact stereo transmitter.
Features:
PTXLCD is the most sold professional FM transmitter worldwide!
AUDIO PERFORMANCE: clear and transparent sound comparable to CD sound quality made possibile thanks to a noise/signal ratio as high as 90dB, low distortion and stereo separation as high as 60dB!
PRIMARY APPLICATION: Optimal for use as an independent exciter. Adjustable power output from 0 to 100%.
HARDWARE FEATURES: compact and indeformable thanks to the stainless steel chassis, in 2 rack units only.
INTERFACE CONTROL: totally microprocessor-controlled, easily programmed from menu through a large LCD and useful optical ENCODER.
INPUT/OUTPUT INTERFACE: built-in high-performance stereo coder, L&R analogue audio inputs, Mono inputs, MPX composite signal and auxiliary inputs for SCA / RDS signals. S/PDIF, TOSLINK, AES/EBU digital audio inputs now are available as standard.
REMOTE CONTROL: built-in telemetry system via GSM modem, battery and battery charger or via WEB or via SNMP (option).
RELIABILITY/CONTINUITY: business continuity is guaranteed by an incredible range and variety of controls, such as Fold-Back control for effective VSRW (Voltage Standing Wave Ratio) protection and IAMLC (Intelligent Automatic Modulation Level Control) to keep modulation level steady.
EASE OF MAINTENANCE: advanced module engineering ensures extreme of access and simple maintenance.
REGULATORY COMPLIANCE: state-of-the-art technology in full compliance with EC, FCC and CCIR standards.
Specifications:
PTX30LCD/S |
|
|||
Parameters |
|
U.M. |
Value |
Notes |
GENERALS |
||||
Frequency range |
|
MHz |
87.5 ÷ 108 |
|
Rated output power |
|
W |
30 |
Continuously adjustable from 10 to 100% |
Modulation type |
|
|
Direct carrier frequency |
|
Operational mode |
|
|
Mono, Stereo, Multiplex |
|
Working temperature |
|
°C |
-5 to +50 |
|
Working humidity |
|
% |
95 |
Without condensing |
Working altitude |
|
mt |
Up to 3000 * |
* With adequate air evacuation system in site |
Frequency setting |
|
kHz |
10 |
Steps |
Frequency stability |
Temperature range from -5°C to 50°C |
ppm |
±1 |
|
Modulation capability |
Refered @ 0dBu for 75kHz |
kHz |
150 Stereo, 200 Mono/MPX |
Meets or exceeds all FCC and CCIR rules |
Pre-emphasis |
|
µs |
0, 25, 50 (CCIR), 75 (FCC) |
Selectable |
POWER REQUIREMENTS |
