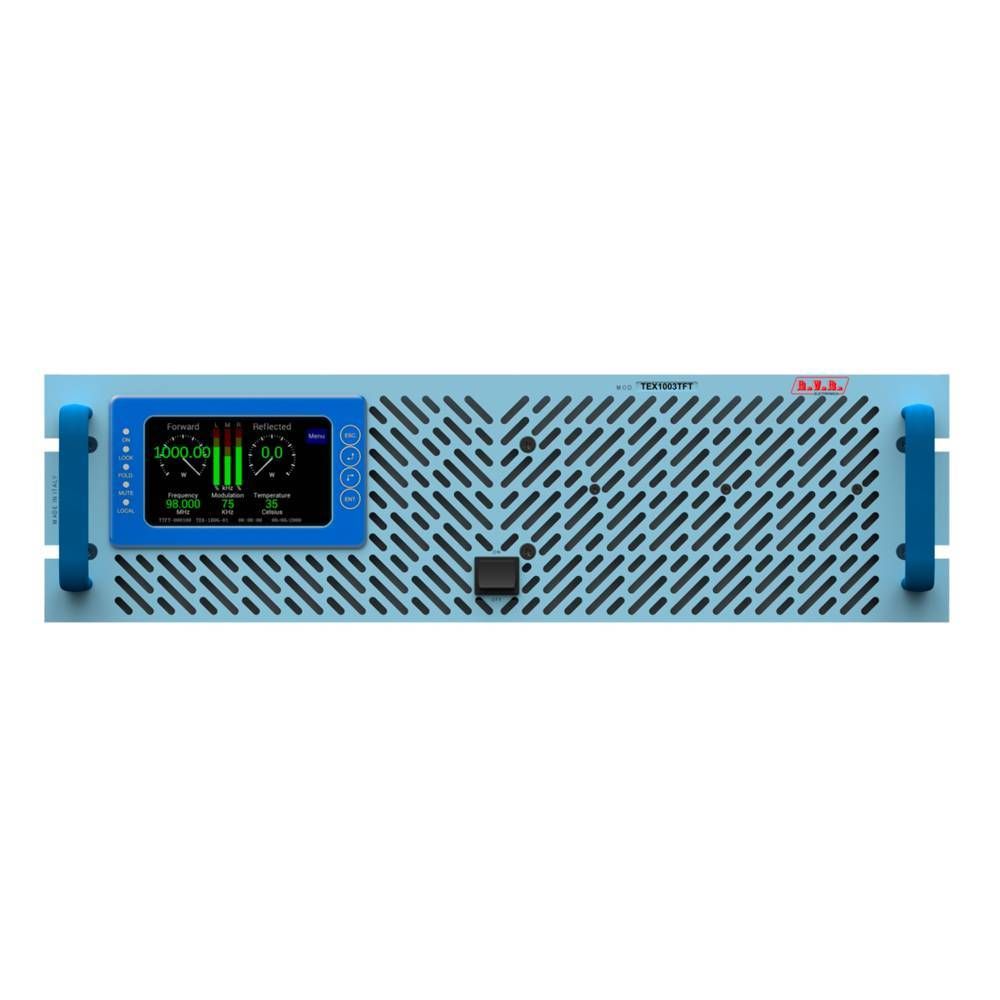

RVR TEX1003TFT/S-TLW 1KW COMPACT FM TRANSMITTER TFT EDITION, GRAPHIC DISPLAY STEREO CODEC BUILT-IN.3RU
SKU
TEX1003TFT
MFR#
TEX1003-TFT
$9,240.00
Availability:
Out of stock
Discover the brand new low and medium power transmitter Series from R.V.R. Elettronica combining the latest technologies applied to the RF field.With the aim of improving the overall performances, from the interface usability to audio management and broadcasting parameters, this series of Transmitters have been developed to deliver a new high-standard at a very appealing quality-price relation.
Full compliance with EC, FCC and CCIR standards.
Standard Frequency Range: 87.5 - 108 MHz. Other bands on request.
10% - 100% Output Power continuously adjustable.
Low distortion and intermodulation values.
APC Automatic Power Control ensuring reliable operation.
Enhanced energy saving power supply.
Inputs: Analogue Stereo L&R, Mono, MPX. AES/EBU (option).
Auxiliary input for SCA / RDS signals.
RDS encoder option with basic or advances features (option).
WEB, SNMP, GSM, Serial remote controls (option).
Features
High quality modern transmitter at an extremely low price, compact, non-deformable and light because it is made of stainless steel chassis. It guarantees high continuity of operation in any working condition through an automatic control (ALC) and a Foldback protection with adjustable output power from 10 to 100%.
It has standard L&R, Mono, MPX and SCA / RDS analogue audio inputs, with the possibility of TOSLINK and optional AES / EBU as well as the integrated RDS encoder (UECP standard Low distortion values, a high signal-to-noise ratio, combined with saving of energy and environmental resources of high yields (over 70% on the whole band) ensures an excellent transmission service.
Limited maintenance is facilitated by extreme accessibility, resulting from an advanced modular engineering, and by a water-washable air filter.
A complete control based on ARM microprocessor, from interactive menus on TFT Touch display of all the main parameters and an integrated WEB / SNMP telemetry system (optionally) guarantee full compliance with EC, FCC and CCIR regulations.
Specifications
|
TEX1003TFT |
||||
|
Parameter |
|
U.M. |
Value |
Notes |
|
GENERALS |
||||
|
Frequency range |
|
MHz |
87,5 ÷ 108 |
|
|
Rated output power |
|
W |
1000 |
Continuously adjustable from 10 to 100% |
|
Modulation type |
|
|
F300E |
|
|
Operational mode |
|
|
Mono, Stereo, MPX |
|
|
Working temperature |
|
°C |
-5 to +50 |
|
|
Working humidity |
|
% |
95 |
Without condensing |
|
Working altitude |
|
mt |
Up to 3000 * |
* With adequate air evacuation system in site |
|
Frequency setting |
|
kHz |
10 |
Steps |
|
Frequency stability |
Temperature range from -5°C to 50°C |
ppm |
±1 |
|
|
Modulation capability |
Refered @ 0dBu for 75kHz |
kHz |
150 |
Meets or exceeds all FCC and CCIR rules |
|
Pre-emphasis |
|
μS |
0 50, 75 |
Selectable |
|
POWER REQUIREMENTS |
||||
|
AC Power input |
AC Supply Voltage |
VAC |
230 ±15% |
|
|
|
AC Apparent Power Consumption |
VA |
1550 |
|
|
|
Active Power Consumption |
W |
1500 |
|
|
|
Power Factor |
|
0,998 |
|
|
|
Overall Efficiency |
% |
Typical 70 |
|
|
|
Connector |
|
VDE 16A |
|
|
MECHANICAL DIMENSIONS |
||||
|
Phisical dimensions |
Front panel width |
mm / inch |
483 / 19 |
EIA rack |
|
|
Front panel height |
mm / inch |
132 / 5 1/4 |
3HE |
|
|
Overall depth |
mm |
564 |
|
|
|
Chassis depth |
mm |
517 |
|
|
Weight |
|
kg |
Approx. 20,50 |
|
|
Cooling |
|
|
Forced, with internal fan |
|
|
Acoustic noise |
|
dBA |
< 75 |
|
|
AUDIO INPUTS |
||||
|
Left/Mono |
Connector |
|
XLR F |
|
|
|
Type |
|
Balanced |
|
|
|
Impedance |
Ohm |
10 or 600 k |
|
|
|
Input Level / Adjust |
dBu |
-12 to +12 |
Continuosly adjustable |
|
Right |
Connector |
|
XLR F |
|
|
|
Type |
|
Balanced |
|
|
|
Impedance |
Ohm |
10 or 600 k |
|
|
|
Input Level / Adjust |
dBu |
-12 to +12 |
Continuosly adjustable |
|
MPX |
Connector |
|
BNC |
|
|
|
Type |
|
Unbalanced |
|
|
|
Impedance |
Ohm |
10 k |
|
|
|
Input Level / Adjust |
dBu |
-12 to +12 |
For 7,5 KHz FM, adjustable |
|
SCA/RDS |
Connector |
|
2 x BNC |
|
|
|
Type |
|
Unbalanced |
|
|
|
Impedance |
Ohm |
10 k |
|
|
|
Subcarier Level @ 0 dBu |
dB |
-17 to -40 |
For 7,5 KHz FM, adjustable |
|
AES/EBU (OPTIONAL) |
Connector |
|
XLR F |
|
|
|
Type |
|
Balanced |
|
|
|
Impedance |
Ohm |
110 |
|
|
|
Input Level / Adjust |
dBfs |
0 to -10 |
For 7,5 KHz FM, adjustable |
|
TOSLINK (OPTIONAL) |
Connector |
|
TOSLINK |
|
|
Type |
|
Optical |
||
|
OUTPUTS |
|
|||
|
RF Output |
Connector |
|
7/16” |
|
|
|
Impedance |
Ohm |
50 |
|
|
RF Monitor |
Connector |
|
BNC |
|
|
|
Impedance |
Ohm |
50 |
|
|
|
Output Level |
dBm |
0 ± 4 |
|
|
Pilot output |
Connector |
|
BNC |
|
|
|
Load Impedance |
Ohm |
>5 k |
|
|
|
Output Level |
Vpp |
1 |
Sinusoidal |
|
FUSES |
||||
|
On mains |
|
|
2 External fuse F 16 A - 6x30 mm |
|
|
On services |
|
|
X |
|
|
On PA Supply |
|
|
X |
|
|
On driver supply |
|
|
X |
