RVR TEX3003TFT NEW 3000W COMPACT FM TRANSMITTER TFT EDITION. OUTPUT POWER CONTINUOUSLY ADJUSTABLE. INPUT: ANALOGUE STEREO L&R, MONO, MPX. TOUCH SCREEN 4.3”. EMBEDDED RTC FOR AUTOMATIC POWER CHANGE AT

SKU
TEX3003TFT
MFR#
TEX3003TFT
was $12,470.00 Special Price $10,324.00
Availability: Out of stock
RVR TEX3003TFT NEW 3000W COMPACT FM TRANSMITTER TFT EDITION. OUTPUT POWER CONTINUOUSLY ADJUSTABLE. INPUT: ANALOGUE STEREO L&R, MONO, MPX. TOUCH SCREEN 4.3”. EMBEDDED RTC FOR AUTOMATIC POWER CHANGE AT

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

High quality modern transmitter at an extremely low price, compact, non-deformable and light because it is made of stainless steel chassis. It guarantees high continuity of operation in any working condition through an automatic control (ALC) and a Foldback protection with adjustable output power from 10 to 100%.

It has standard L&R, Mono, MPX and SCA / RDS analogue audio inputs, with the possibility of TOSLINK and optional AES / EBU as well as the integrated RDS encoder (UECP standard Low distortion values, a high signal-to-noise ratio, combined with saving of energy and environmental resources of high yields (over 70% on the whole band) ensures an excellent transmission service.

Limited maintenance is facilitated by extreme accessibility, resulting from an advanced modular engineering, and by a water-washable air filter. A complete control based on ARM microprocessor, from interactive menus on TFT Touch display of all the main parameters and an integrated WEB / SNMP telemetry system (optionally) guarantee full compliance with EC, FCC and CCIR regulations.

Your Rating

Specifications:

TEX302TFT
Parameter   U.M. Value Notes
GENERALS
Frequency range   MHz 87,5 ÷ 108
Rated output power   W 300 Continuously  adjustable from 10 to 100%
Modulation type     F300E
Operational mode     Mono, Stereo, MPX
Working temperature   °C -5 to +50
Working humidity   % 95 Without condensing
Working altitude   mt Up to 3000 * * With adequate air evacuation system in site
Frequency setting   kHz 10 Steps
Frequency stability Temperature range from -5°C to 50°C ppm ±1
Modulation capability Refered @ 0dBu for 75kHz kHz 150 Meets or exceeds all FCC and CCIR rules
Pre-emphasis   μS 0  50, 75 Selectable
POWER REQUIREMENTS
AC Power input AC Supply Voltage VAC 80 ÷ 260
  AC Apparent Power Consumption VA 440
  Active Power Consumption W 430
  Power Factor   0,994
  Overall Efficiency % Typical 70 * * Up to 72 in specific conditions
  Connector   VDE IEC Standard
MECHANICAL DIMENSIONS
Phisical dimensions Front panel width mm / inch 483   /  19 EIA rack
  Front panel height mm / inch 88  /  3 1/2 2HE
  Overall depth mm 394
  Chassis depth mm 372
Weight   kg Approx. 7,5
Cooling     Forced, with internal fan
Acoustic noise   dBA < 75
AUDIO INPUTS
Left/Mono Connector   XLR F
  Type   Balanced
  Impedance Ohm 10 or 600 k
  Input Level / Adjust dBu -12 to +12 Continuosly  adjustable
Right Connector   XLR F
  Type   Balanced
  Impedance Ohm 10 or 600 k
  Input Level / Adjust dBu -12 to +12 Continuosly  adjustable
MPX Connector   BNC
  Type   Unbalanced
  Impedance Ohm 10 k
  Input Level / Adjust dBu  -12 to +12 For 7,5 KHz FM, adjustable
SCA/RDS Connector   2 x BNC
  Type   Unbalanced
  Impedance Ohm 10 k
  Subcarier Level @ 0 dBu dB -17 to -40 For 7,5 KHz FM, adjustable
AES/EBU (OPTIONAL) Connector   XLR F
  Type   Balanced
  Impedance Ohm 110
  Input Level / Adjust dBfs 0 to -10 For 7,5 KHz FM, adjustable
TOSLINK (OPTIONAL) Connector   TOSLINK
Type      Optical
OUTPUTS
RF Output Connector    N
  Impedance Ohm 50
RF Monitor Connector   BNC
  Impedance Ohm 50
  Output Level dBm 0 ± 4
Pilot output Connector   BNC
  Load  Impedance Ohm >5 k
  Output Level Vpp 1 Sinusoidal
FUSES
On mains     1 External fuse F 8L - 5x20 mm
On services     X
On PA Supply     X
On driver supply     X

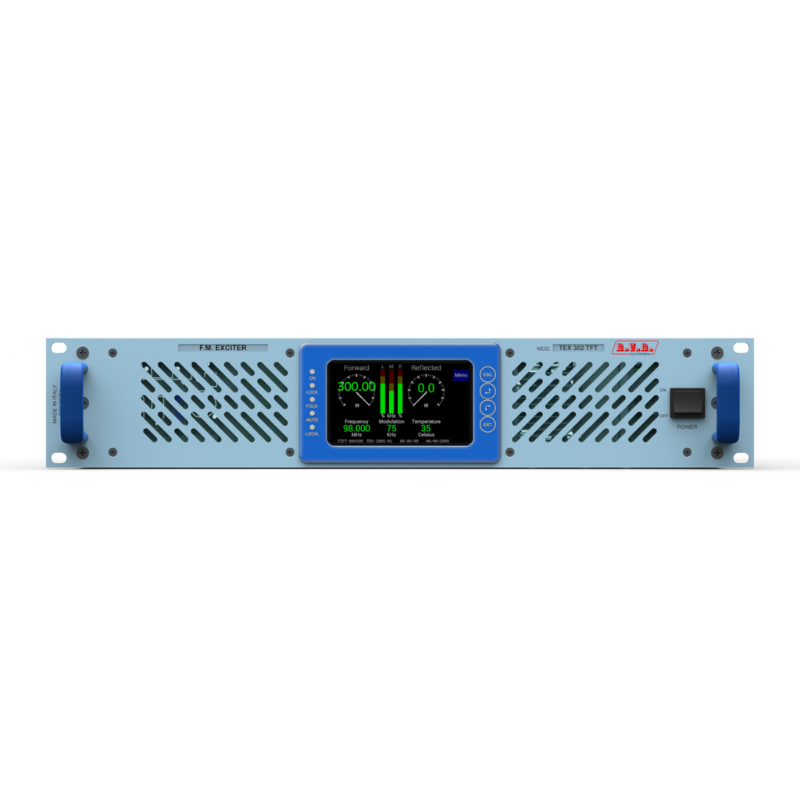

main product photo
