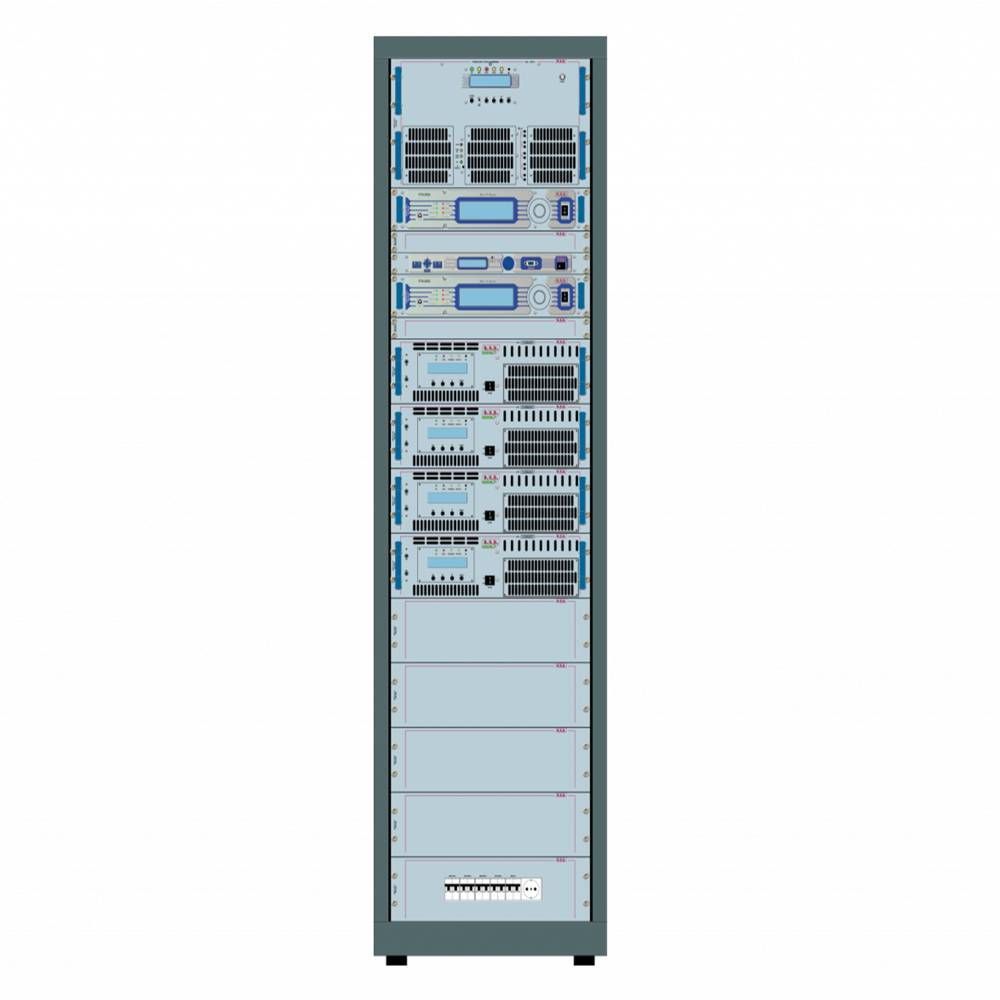

RVR TX04KSS/03S072 4 KW COMPACT TRANSMITTER SINGLE EXCITER

TX04KSS/61D114B

Parameter

Value

GENERALS

RF Output Power

4 kW

Frequency Range

87,5 – 108 MHz

Frequency Stability

> 1 ppm

Frequency programmability

By software, with 1, 10, 100 , 1000 kHz steps

Nominal Frequency Deviation

±75 KHz (peak)

Maximum Frequency Deviation

±150 KHz (peak)

Class of Emission

180KF8E Direct to Channel

Modulation Mode

Mono, Stereo, Multiplex, SCA, RDS, Aux

Stereo transmissions

Acc. to ITU-R / Rec.  450 (Pilot  tone)

RF Output Impedance

50 Ω, Unbalanced

RF Output Connector

1-5/8” EIA Flange

VSWR

1.4:1 with automatic fold-back at higher VSWR

Pre-emphasis Mode

0/50 (CCIR) µs,75 (FCC) μs

Asynchronous AM S/N Ratio

Typically >70dB

Synchronous AM S/N Ratio

Typically > 55dB

Harmonics suppression and Spurious

Typically <85db

Overall efficiency

Typically > 70%

RF Harmonics

Exceeds ETSI/CCIR/FCC requirements

RF Spurious

Exceeds ETSI/CCIR/FCC requirements

Analogue Input level {+75 Khz (peak) deviation }

-12,5 dBu - +12,5 dBu (adjustable)

Digital Input level {+75 Khz (peak) deviation }

-20,0 dBFS – 0 dBFS (adjustable)

MONO OPERATION

S/N ratio

Typically > 83dB

Total Harmonic Distortion + Noise

Typically <0,03%

Inter Modulation Distortion SMPTE

Typically <0,02%

Frequency Response

Typically ±0,2dB

Audio Input Impedance

600 Ω or 10 kΩ

MPX OPERATION

Composite S/N ratio

Typically > 80dB

Total Harmonic Distortion + Noise

Typically <0,05%

Inter Modulation Distortion
