SCALA FMVMP 92180-007 DIPOLE FM ANTENNA VERTICAL POLARIZATION GAIN 1 DBD POWER GAIN 1.26 IN 3 BANDS ( 98-108 )
SKU
SCA-FMVMP-007
MFR#
92180-007
$1,130.00
Availability:
Out of stock
SCALA FMVMP 92180-007 DIPOLE FM ANTENNA VERTICAL POLARIZATION GAIN 1 DBD POWER GAIN 1.26 IN 3 BANDS ( 98-108 )

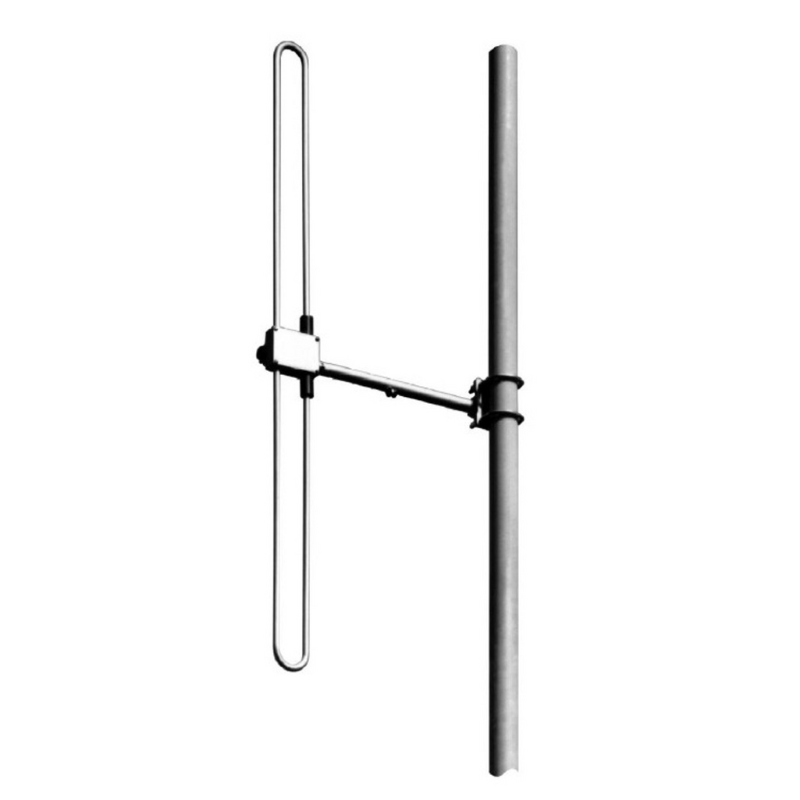

The Kathrein Scala Division FMVMP dipole antenna for FM radio transmission offers high performance, easy installation, and application flexibility. Dipoles may be stacked for more gain and higher power handling capacity as required. Arrays include power dividers and coax feeders, plus installation hardware. Like all Kathrein Scala Division antennas, the FMVMP is made of the finest materials using state of the art electrical and mechanical designs, resulting in superior performance and long service life.
Key Features:
- Frequency range: 88—108 MHz
- Bandwidth: 88—98 MHz, 93—103 MHz, 98—108 MHz
- Impedance: 50 ohms
- VSWR: <1.5:1
- Polarization: Vertical
- Maximum input power: 500 watts (at 50°C)
- Connector: N female (other terminations are available for stacked arrays)
- Wind load at 100 mph (160 kph), Front: 25 lbf (111 N) maximum per bay
- Wind survival rating*: 120 mph (193kph)
- Mounting: For masts of 2.375 inch (60 mm) OD (using supplied hardware)
