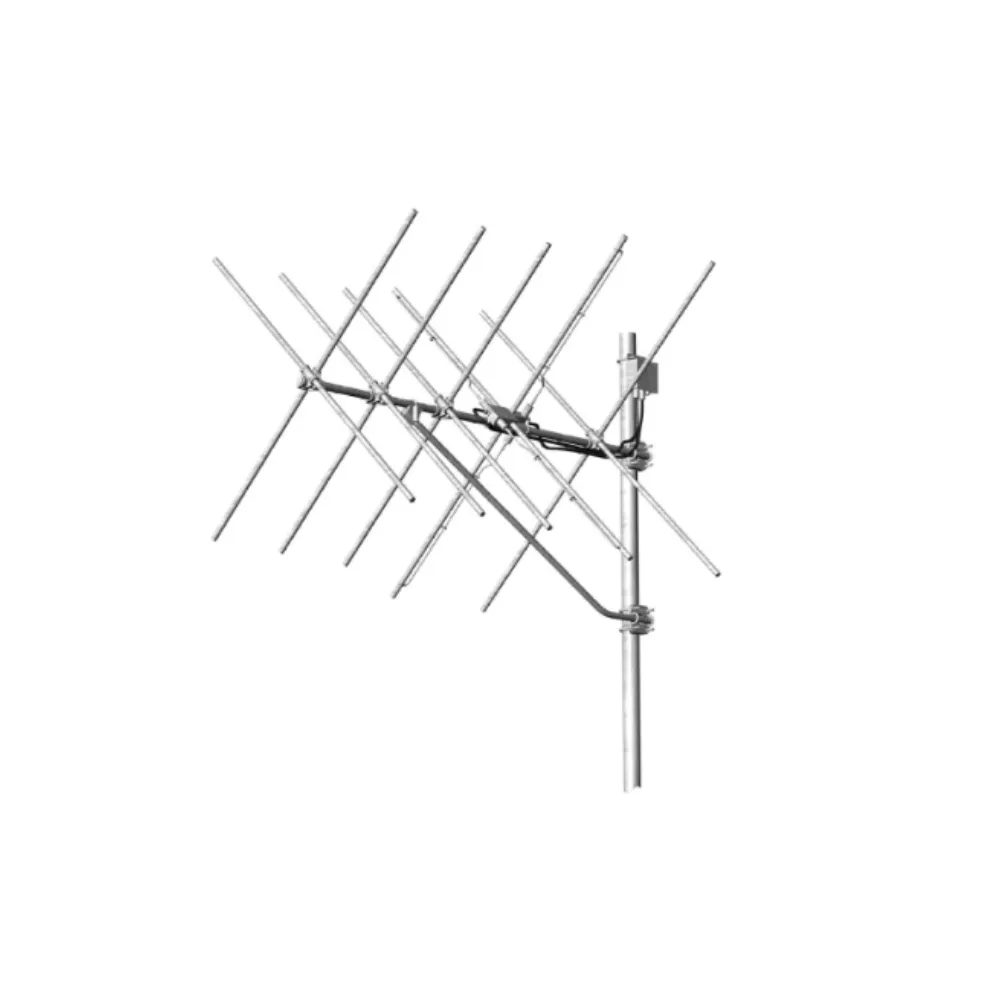

SCALA HDCA-5CP/RM/50N CH-3 CIRCULAR POLARIZATION BAND I FIVE ELEMENT YAGI, REAR MOUNT , 50 OHMS, 250 W
SKU
SCA-HDCA-5CP/RM/50N-3
MFR#
91282-051
$4,765.00
Availability:
Out of stock
SCALA HDCA-5CP/RM/50N CH-3 CIRCULAR POLARIZATION BAND I FIVE ELEMENT YAGI, REAR MOUNT , 50 OHMS, 250 W
HDCA-5CP/RM/50N Channel 5 VHF-TV Yagi Antenna, 4.5 dBd Gain, 50 Ohms Impedance, Circular Polarization, Max Input Power of 250 Watts, 63-Degree Azimuth Pattern, 63-Degree Elevation Pattern, Wind Survival Rating of 120 MPH
Key Features:
- Specially designed for Channel 5 VHF-TV, ensuring unmatched performance
- Delivers a significant gain of 4.5 dBd for extensive coverage and clarity
- Circular polarization for consistent quality across diverse broadcasting scenarios
- Front-to-back ratio greater than 16 dB, minimizing broadcast interference
- Capable of supporting up to 250 watts of input power for robust broadcasting needs
- Built to withstand winds up to 120 mph, guaranteeing durability in extreme weather
- Features a 75Ω N female connector, allowing for easy integration with broadcasting systems
- Weighs 38 lb and measures 107 x 75.3 inches, suitable for standard mast installations
Specifications:
| Frequency range | Any specified VHF-TV channel 54 to 88 MHz |
| Gain / Power gain | Channels 2–3: 3.7 dBd (Power gain: 2.34) Channels 4–6: 4.5 dBd (Power gain: 2.82) |
| Impedance | 50 or 75 ohms |
| VSWR | <1.5:1 |
| Polarization | Circular |
| Front-to-back ratio | Not specified |
| Maximum input power | 250 watts (50Ω) 100 watts (75Ω) |
| Azimuth pattern | 63 degrees (half-power) |
| Elevation pattern | 63 degrees (half-power) |
| Connector | 75Ω N female |
| Weight | 38 lb (17.2 kg) |
| Dimensions | 107 x 75.3 inches maximum (2718 x 1913 mm) |
| Wind load | 123 lbf (547 N) |
| Wind survival rating | 120 mph (193 kph) |
| Shipping dimensions | 125 x 10 x 6 inches maximum (3175 x 254 x 152 mm) |
| Shipping weight | 46 lb (20.9 kg) maximum |
| Mounting | For masts of 2.375 inch (60 mm) OD |
| Mounting options | HDCA-5CP/CM: Center-mount (channels 2–6) HDCA-5CP/RM: Rear-mount (channels 2–6) |
