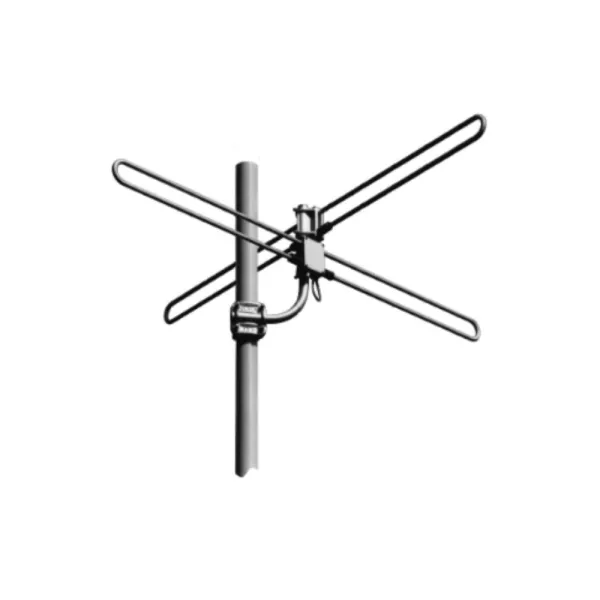

SCALA TVO/50N PN 95600-001-2-3 CROSSED DIPOLE OMNIDIRECTIONAL ANTENNA H POLARIZATION, 50 OMS ( 50N) 250 W BAND I CH-2-4
SKU
SCA-TVO/50N-2-4
MFR#
95600-001-2-3
$3,047.00
Availability:
Out of stock
SCALA TVO/50N PN 95600-001-2-3 CROSSED DIPOLE OMNIDIRECTIONAL ANTENNA H POLARIZATION, 50 OMS ( 50N) 250 W BAND I CH-2-4
VHF-TV Broadcast Antenna with Horizontal Polarization, Omnidirectional Coverage, Channel 4 Frequency Range, High Wind Survival, Durable N Female Connector, and Versatile Mounting Options.
Key Features:
- Frequency range tailored for Channel 4 (66—72 MHz)
- Horizontal polarization for effective signal distribution
- Maximum input power of 250 watts in a 50 ohm setup
- Low VSWR under 1.3:1 to maintain signal integrity
- Durable N female connector for secure, long-lasting connections
- Lightweight design, weighing only 9 lb and standing 18 inches tall
- Engineered for high wind survival up to 120 mph, ensuring reliability in harsh weather
Specifications:
| Frequency range | Any specified VHF-TV channel 54—216 MHz |
| Gain / Power gain | TVO (one bay): -3 dBd / 0.5 TVO-2 (two bays): 0 dBd / 1 (1/2 spacing) TVO-4 (four bays): 3 dBd / 2 (1/2 spacing) |
| Impedance | 50 or 75 ohms |
| VSWR | <1.3:1 |
| Polarization | Horizontal |
| Maximum input power (per bay) | 100 watts (75 ohm model) 250 watts (50 ohm model) |
| Azimuth pattern | Omni |
| Connector | N female |
| Weight (approx.) | TVO (one bay): 9 lb (4.1 kg) TVO-2 (two bays): 22.6 lb (10.3 kg) TVO-4 (four bays): 50.6 lb (23 kg) |
| Height | TVO (one bay): 18 inches (457 mm) TVO-2 and TVO-4: See reverse |
| Wind load at 100 mph (161 kph) | 52 lbf (231 N) per bay |
| Wind survival rating | 120 mph (193 kph) |
| Mounting | For masts of 2.375 inch (60 mm) OD |
