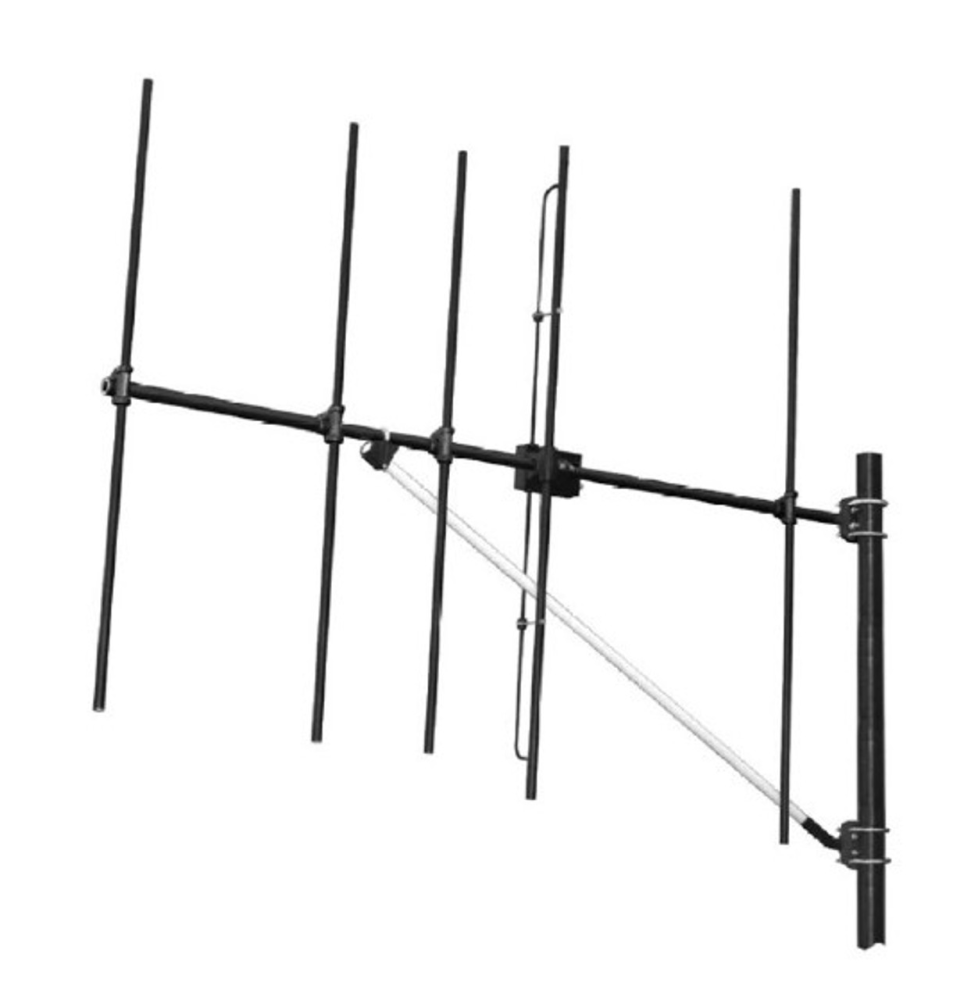

main product photo
Loading...
SCALA YA7FML/HCM PN 91490-000 FM YAGI ANTENNA, CENTER MOUNT H/V POL. 50 OHM/ N FEMALE CONNECTOR 88 - 98 MHZ BROADBAND

SCALA YA7FML/HCM PN 91490-000 FM YAGI ANTENNA, CENTER MOUNT H/V POL. 50 OHM/ N FEMALE CONNECTOR 88 - 98 MHZ BROADBAND

SCALA TVO/50N PN 95600-006-12 CROSSED DIPOLE OMNIDIRECTIONAL ANTENNA H POLARIZATION, 50 OMS ( 50N) 250 W BAND III CH-7-13

SCALA TVO/50N PN 95600-006-12 CROSSED DIPOLE OMNIDIRECTIONAL ANTENNA H POLARIZATION, 50 OMS ( 50N) 250 W BAND III CH-7-13

SCALA YA7FML/URM PN 91490-001 FM YAGI ANTENNA, REAR MOUNT H/V POL. 50 OHM/ N FEMALE CONNECTOR 88 - 98 MHZ BROADBAND

KATHREIN-SCALA
SKU
SCA-YA7FML/URM-88-98
MFR#
91490-001
$1,917.00
Availability: Out of stock
SCALA YA7FML/URM PN 91490-001 FM YAGI ANTENNA, REAR MOUNT H/V POL. 50 OHM/ N FEMALE CONNECTOR 88 - 98 MHZ BROADBAND
Be the first to review this product
Add to Wish List:

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

The Scala YA7-FML and YA7-FMH are ruggedly built, yagi antennas. designed for professional FM transmit and receive applications. Like all Scala antennas, the YA7-FML and YA7-FMH are made of the finest materials using state Of the art electrical and mechanical designs resulting in superior performance and long service life. The YA7-FML and YA7-FMH may be used stand alone or in stacked arrays for higher gain, increased side- lobe suppression, or custom azimuth pattems.

Your Rating

Key Features:

  • Gain: 7 dBd (broadband)
  • Power gain: 5.01
  • Impedance: 50 ohms
  • VSWR: <1.35:1
  • Polarization: Horizontal or vertical
  • Front-to-back ratio: >13 dB
  • Maximum input power: 500 watts
  • H-plane beamwidth: 83 degrees (half-power) Horizontal polarization
  • E-plane beamwidth: 56 degrees (half-power) Horizontal polarization
  • Connector: N female
  • Weight: 22 lb (10 kg) maximum
  • Dimensions: 85 x 66 x 5 inches (2159 x 1676 x 127 mm)
  • Wind load at 100 mph (160 kph) Front: 85 lbf (378 N)
  • Wind survival rating*: 100 mph (161 kph)
  • Shipping dimensions: 87 x 13 x 8 inches (2210 x 330 x 203 mm)

Specifications:

Frequency Range YA7-FML: 88—98 MHz
YA7-FMH: 98—108 MHz
Gain 7 dBd
Power Gain 5.01
Impedance 50 ohms
VSWR <1.35:1
Polarization Horizontal, Vertical, or Slant 45°
Front-to-Back Ratio —
Maximum Input Power 500 watts
HRP Beamwidth (H-pol) 56 degrees (half-power)
Connector N female
Weight 22 lb (10 kg) maximum
Dimensions 85 x 66 x 5 inches (2159 x 1676 x 127 mm)
Wind Load at 100 mph (160 kph) Front: 85 lbf (378 N)
Wind Survival Rating 100 mph (161 kph)
Shipping Dimensions 87 x 13 x 8 inches (2210 x 330 x 203 mm)
Shipping Weight 28.0 lb (12.7 kg) maximum
Mounting For masts of 2.375 inch (60 mm) OD
Mount Options YA7-FML/HCM: Center-mount 88—98 MHz
YA7-FML/URM: Rear-mount 88—98 MHz
YA7-FMH/HCM: Center-mount 98—108 MHz
YA7-FMH/URM: Rear-mount 98—108 MHz

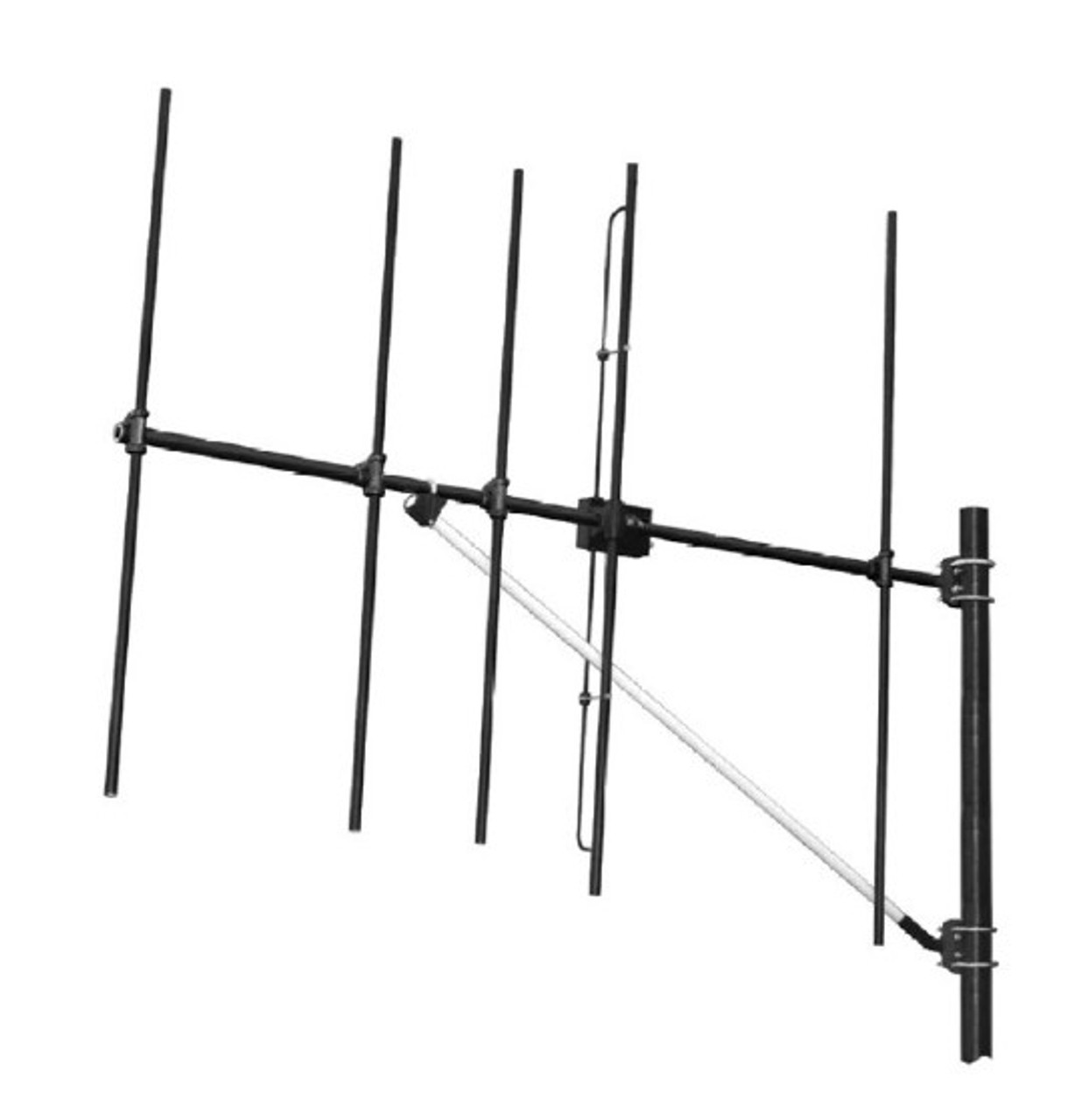

main product photo
