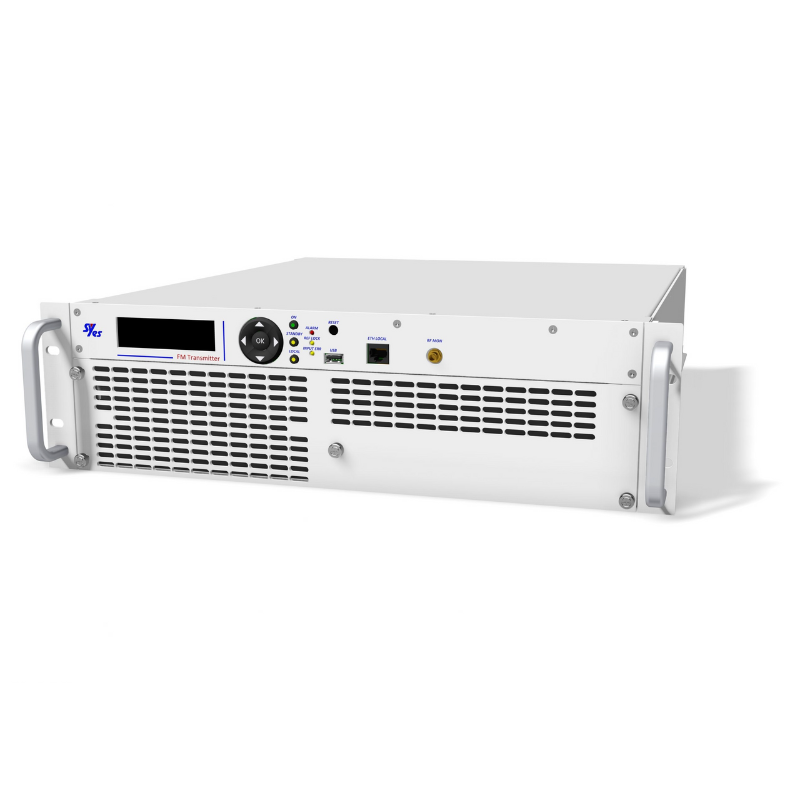

SYES PCM/FM-2U-3000W 3 KW FM TRANSMITTER DSP/DDS BASED MODULATOR FPGA TECH INCL: STEREO CODER, WEB GUI, SNMP/TELEMETRY OPTIONS RDS-AES3-5 BAND AUDIO PROCESSOR-RFIN-ASI-IN-DVB-IN
SKU
PCM/FM-4U-3000W
$23,700.00
Availability:
In stock
SYES PCM/FM-2U-3000W 3 KW FM TRANSMITTER DSP/DDS BASED MODULATOR FPGA TECH INCL: STEREO CODER, WEB GUI, SNMP/TELEMETRY OPTIONS RDS-AES3-5 BAND AUDIO PROCESSOR-RFIN-ASI-IN-DVB-IN
The most fully featured HD Sound FM transmitter ever, digital processing completely based on FPGA technology granting crystal clear and highly stable audio performances. Inputs: L&R, MPX, AES-EBU and MPX over IP audio inputs. External RDS, 1 pps and 10 MHz inputs. Single Frequency Network: an optional GPS receiver, an extremely precise built-in OCXO, backed by a proprietary SW sharpened by years of on-field tests, allows the realization of FM Single Frequency Networks, where the interference area can be totally managed.
Specification:
- DSP/DDS based modulator
- Fully frequency agile without need for any tuning or trimming.
- Hot plug in PSU
- FM Repeater and Transposer (optional)
- GPS receiver with extremely precise OCXO (optional)
- Built-in Dynamic RDS Encoder
- USB input to fast save/load configurations
- Built-in GPS for SFN application (optional)
- Remote control via SNMP, friendly web browser GUI, no need of plug-in or apps, dry contacts
- High efficiency up to 76% to minimize consumption and OPEX.
