NADIV USB-PNG 2 INPUT, 2 OUTPUT. USB-A CONNECTION STEREO USB IN/OUT MAC OR PC. PoE POWERED. DONGLE STYLE HARDWARE. DANTE/AES67

NADIV USB-PNG 2 INPUT, 2 OUTPUT. USB-A CONNECTION STEREO USB IN/OUT MAC OR PC. PoE POWERED. DONGLE STYLE HARDWARE. DANTE/AES67

AXIA STUDIOCORE + CAN, CONSOLE ENGINE FOR AXIA IQ, RADIUS, RAQ REPLACEMENT FOR QOR.32 IT. A 24-CHANNEL MIXING ENGINE, 5-PORT ETHERNET SWITCH. I/O INCL FOUR SELECTABLE MIC/LINE INPUTS

AXIA STUDIOCORE + CAN, CONSOLE ENGINE FOR AXIA IQ, RADIUS, RAQ REPLACEMENT FOR QOR.32 IT. A 24-CHANNEL MIXING ENGINE, 5-PORT ETHERNET SWITCH. I/O INCL FOUR SELECTABLE MIC/LINE INPUTS

25-SEVEN PDM II PROGRAM DELAY MANAGER II PROFANITY DELAY PROGRAM DELAY MANAGER II , ANALOG, AES3 DIGITAL AND LIVEWIRE + AES67 AoIP

SKU
25S-PDMX
MFR#
2001-00121-000
was $2,750.00 Special Price $2,475.00
Availability: In stock

25-SEVEN PDMX PROGRAM DELAY SOFTWARE

SPECIAL SHIPPING RATES

On orders over $1000

WHOLESALING PRICING

Ask us how to become a Wholesaler

SECURED PAYMENT

Guaranteed safe payment options

PDMX brings the legendary features of the original PDM (Program Delay Manager) and PDM II broadcast delays into the virtual age. Ease of use, transparent audio quality, and program director-friendly features combine with AES67 AoIP, Livewire GPIO control, and reliable container architecture to take air chain management to the next level. PDMX is purpose-built for server-based, scalable facilities with forward-thinking broadcasters in mind. It is delivered as a container and can be deployed on-premises on a COTS (commercial off-the-shelf) server, on a cloud-based platform such as AWS, or on the Telos Alliance AP-3000 hardware platform.

For those wanting the benefits of a virtualized software processor but with the simplicity of pre-configured hardware, up to four instances of PDMX can be pre-installed on the Telos Alliance® AP-3000 hardware platform.

Your Rating

Features:

  • PDMX delivers all the functions of the renowned PDM II delay in a pure software embodiment
  • Container-based instances enable high-density, server-based deployment
  • Livewire+AES67 I/O powers a purely AoIP-based workflow, including Livewire GPIO
  • PD Alert™ instantly emails time-stamped audio files whenever the Dump button is pressed
  • “Dump” file captures what took place both on-air and off-air
  • Seamlessly builds and exits delay, with configurable delay time, build, and dump options
  • Delays IP metadata streams and GPIO, maintaining audio sync

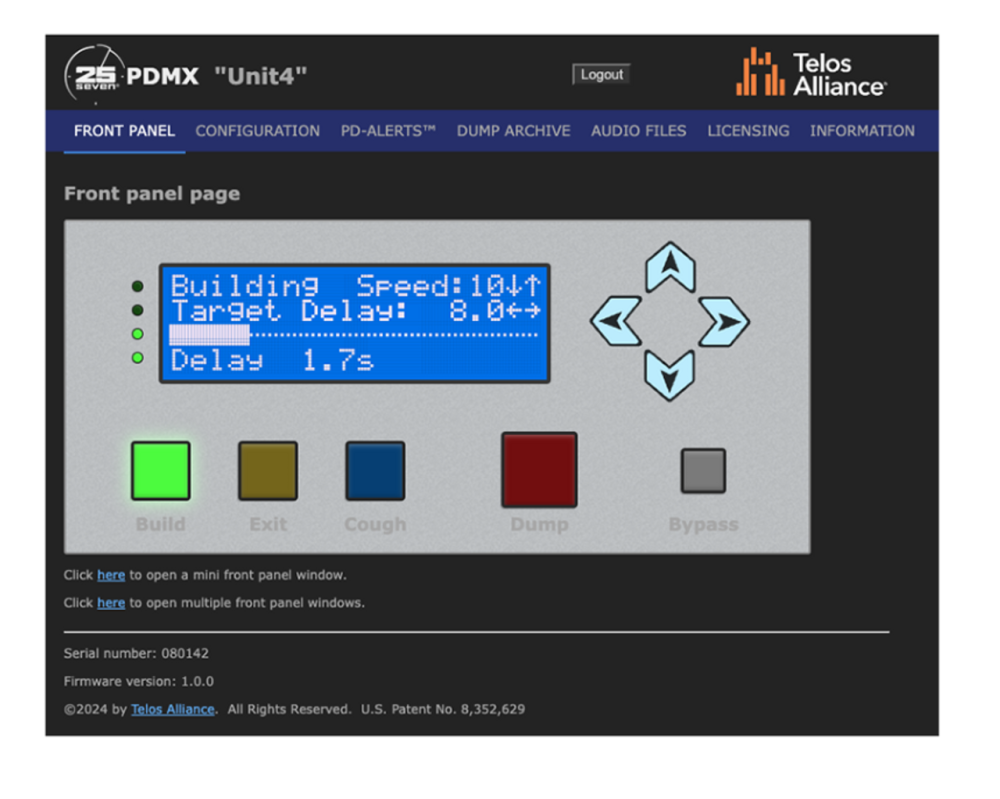

main product photo
