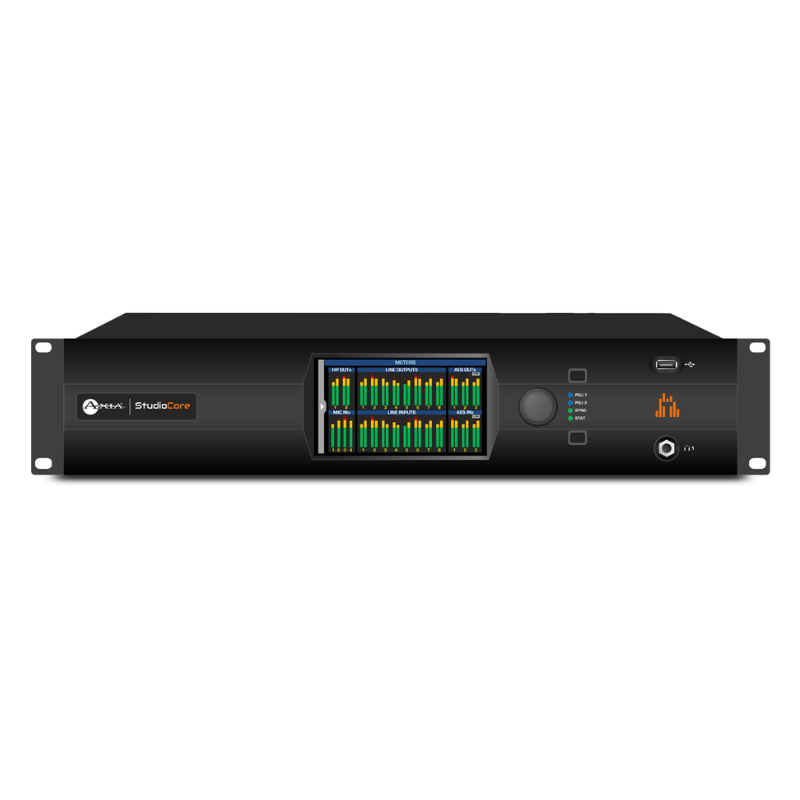

AXIA STUDIOCORE + CAN, CONSOLE ENGINE FOR AXIA IQ, RADIUS, RAQ REPLACEMENT FOR QOR.32 IT. A 24-CHANNEL MIXING ENGINE, 5-PORT ETHERNET SWITCH. I/O INCL FOUR SELECTABLE MIC/LINE INPUTS
StudioCore is an integrated console engine for Axia iQ, Radius, RAQ, and DESQ mixing consoles that combines audio I/O, a console power supply, a mixing engine, and a dedicated five-port AoIP network switch with PoE into a single fanless 2RU rack-mounted package.
StudioCore provides four selectable mic/line inputs, eight dedicated line inputs and outputs, and three digital inputs and outputs that are user-configurable as AES/EBU, S/PDIF, and USB Audio, which eliminates the need for an IP driver for stereo applications. It also includes two headphone outputs with independent DACs and built-in amplifiers, a built-in audio file player via USB data port, and four GPI/O ports. Three CAN bus ports provide connectivity with up to three Axia iQ consoles.
Features
