AUDIOSCIENCE ASI1431 ANALOG MODULE, 8 RECORD 8 PLAY
SKU
ASI1431
MFR#
ASI1431
$834.00
Availability:
Out of stock

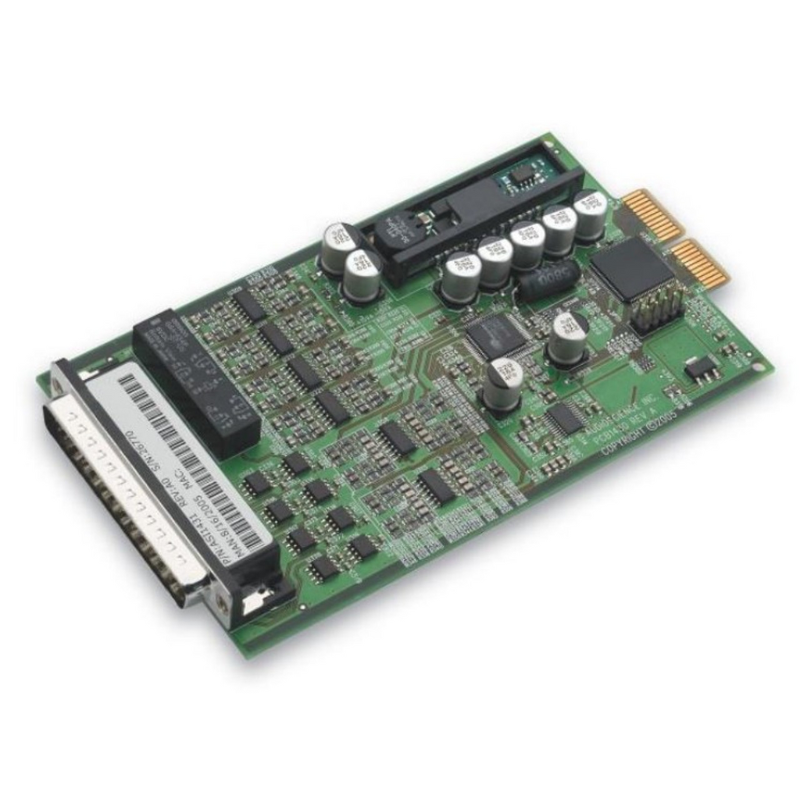

AUDIOSCIENCE ASI1431 ANALOG MODULE, 8 RECORD 8 PLAY
The ASI1431 is an analog I/O module intended for use in the Hono AVB/Cobranet Custom Interfaces. It contains eight inputs and outputs that operate at a 48kHz sample rate. Up to four ASI1431 modules may be used in one unit. AudioScience’s CobraNet implementation, based on the CobraNet chip used, allows for up to 16 inputs and outputs, out of a possible 32, to be used at any given time. AVB units may use all 32 possible channels.
Features:
- Eight inputs and outputs
- 24bit analog-to-digital and digital-to-analog converters: 105dB SNR and 0.0015% THD+N
- -10 to +24dBu software controlled output and input level
- Interchangeable Module Connectors with choice of Terminal Block, StudioHub+TM RJ-45 or 50pin Centronics connector (compatible with AudioScience sound cards)
- Up to four modules can be used in one Hono Custom
- Input Level: -10 to +24dBu in 1dBu steps
- Input Impedance: 10K ohms
- A/D converter: 24bit Over sampling
- Output Level: -10 to +24dBu in 1dBu steps
- D/A converter: 24bit Over sampling
- Load Impedance: 600ohms or greater
- S/N Ratio[1]: >105dB (record or play)
- THD+N[2]: <0.0015% (record or play)
- Sample Rates: 48, 64, 88.2, 96 and 192kHz
- Frequency Response: 20Hz to 20kHz +0.1/-0.30dB
