AUDIOSCIENCE ASI1491 50 PIN CENTRONICS 8 INPUT 8 OUTPUT TO XLR MODULE ASI2416 CONNECTOR MODULES

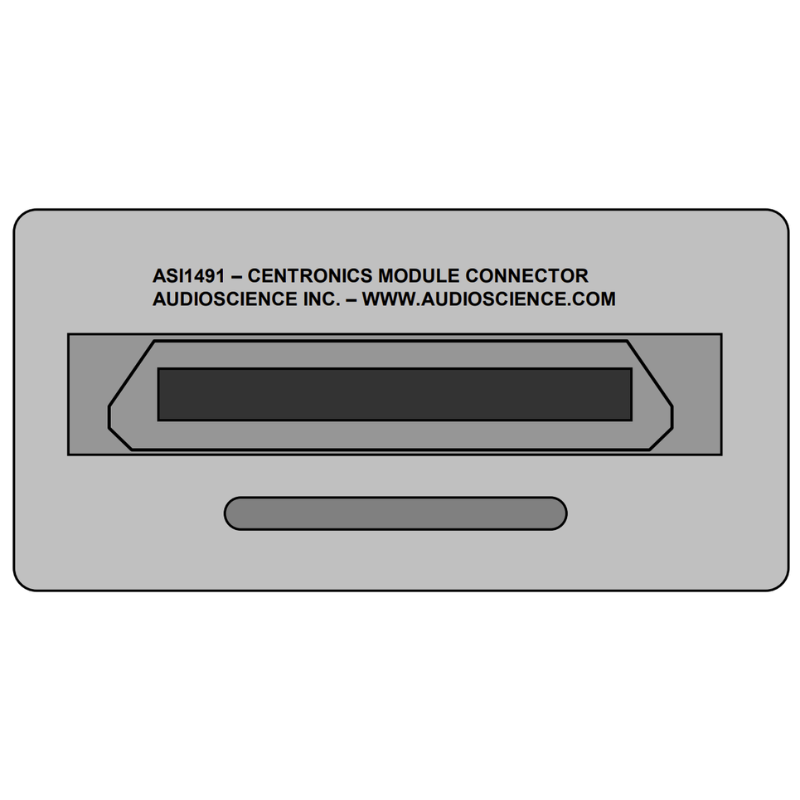

The ASI1491 Module Connector provides a 50pin Centronics connector (also referred to as a 50pin SCSI connector). AudioScience’s CBL1146 XLR breakout cable can be used with this connector. The table on the right shows the pinouts of the connector when used with the ASI1462 mic/line In Module.
