AUDIOSCIENCE ASI1433 8 ANALOG OUT MODULE
SKU
ASI1433
MFR#
ASI1433
$714.00
Availability:
In stock

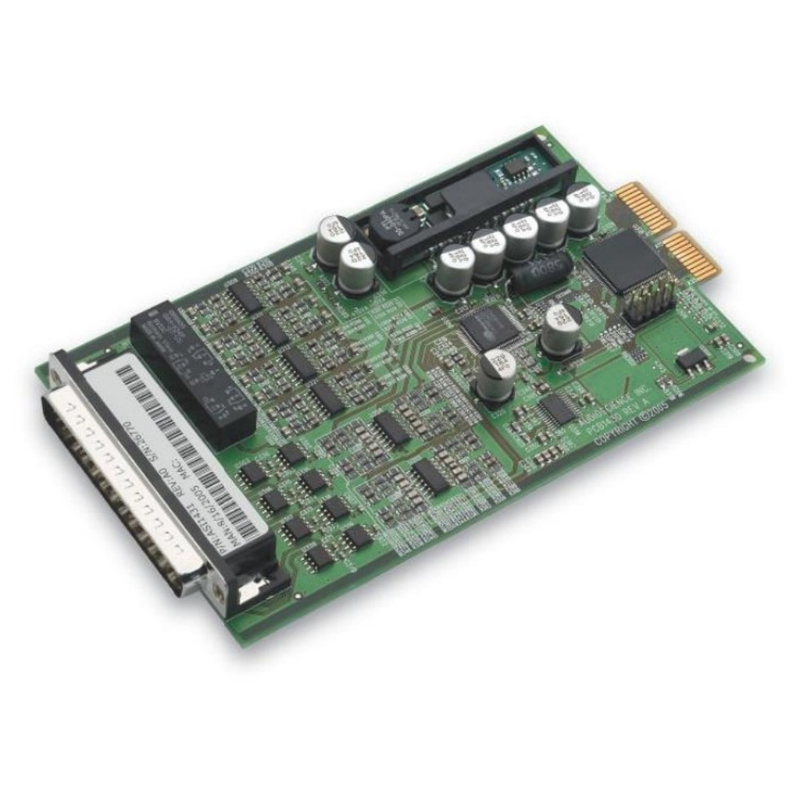

AUDIOSCIENCE ASI1433 8 ANALOG OUT MODULE
The ASI1433 is an analog output module intended for use in the Hono AVB/Cobranet Custom Interfaces. It contains eight outputs that operate at 48kHz (Cobranet) and 48/96kHz (AVB) sample rates. Up to four ASI1433 modules may be used in one unit. AudioScience’s CobraNet implementation, based on the CobraNet chip used, allows for up to 16 inputs and outputs, out of a possible 32, to be used at any given time. AVB units may use all 32 possible channels.
A unique feature of the ASI433 is its interchangeable I/O connector. A choice of 50pin Centronics (ASI1491), StudioHub+TM (ASI1492) or Terminal Block (ASI1493) allows the module to adapt to a wide variety of interconnection schemes with minimal custom wiring.
Features:
- Eight outputs
- 24bit digital-to-analog converters: 105dB SNR and 0.0015% THD+N
- -10 to +24dBu software controlled output level
- Interchangeable Module Connectors with choice of Terminal Block, StudioHub+TM RJ-45 or 50pin Centronics connector (compatible with AudioScience sound cards)
- Up to four modules can be used in one Hono Custom
- Input Level: -10 to +24dBu in 1dBu steps
- Input Impedance: 10K ohms
- D/A converter: 24bit Over sampling
- Load Impedance: 600ohms or greater
- S/N Ratio[1]: >105dB (record or play)
- THD+N[2]: <0.0015% (record or play)
- Frequency Response: 20Hz to 20kHz +0.1/-0.30dB
