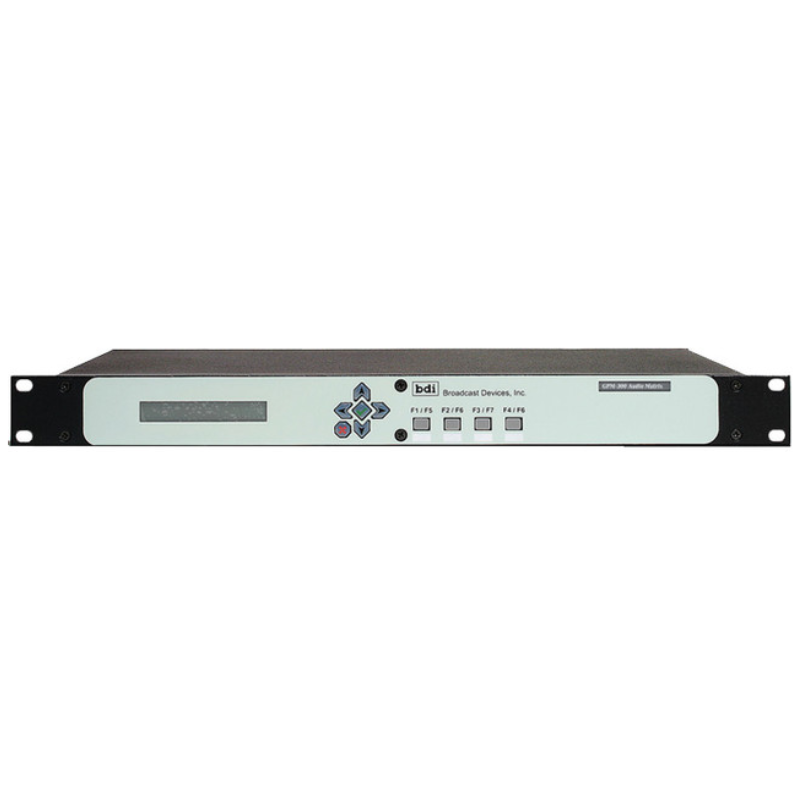

BROADCAST DEVICES ATB-300-2 AUDIO TOOLBOX AES SYNCHRONOUS AUDIO SWITCHER WITH INTEGRATED SILENCE SENSOR 4 AES I//O , 4 ANALOG L/R BALANCED INPUT
SKU
BDI-ATB-300-2
MFR#
ATB-300-2
$2,995.00
Availability:
Out of stock
BROADCAST DEVICES ATB-300-2 AUDIO TOOLBOX AES SYNCHRONOUS AUDIO SWITCHER WITH INTEGRATED SILENCE SENSOR 4 AES I//O , 4 ANALOG L/R BALANCED INPUT
The ATB-300 Audio Toolbox from BDI is a rack mounted solution to switching and routing in the digital or analog domain. The ATB-300 can be ordered in eight different configurations. The basic configuration is the ATB-300-1 that accepts four AES3 inputs, that can be switched and routed to four AES3 outputs. If analog input is required in addition to AES3, the ATB-300-2 has four analog balanced stereo inputs in addition to the four AES3 inputs. The ATB-300-3 has AES3 I/O and analog output, if AES3 and analog I/0 are required. The ATB-300-4 is analog only L/R I/O and the ATB-300-5 provides four AES3 I/O and four balanced stereo I/O.
Features:
- 8 analog inputs and outputs for professional audio routing
- Front-panel menu programming for gain adjustment, input phase inversion, and mode selection
- Silence detection with programmable threshold, delay time, and automatic failover
- Revert function restores the primary channel automatically when signal integrity is regained
- Proprietary Silent Switch technology for seamless, noise-free audio switching
- Programmable alarm contacts for remote monitoring and automated source switching
- Fully remote control ready with standard parallel and optional serial interface
- Power fail memory retains last channel selection upon restart
